Запчасти Case 586E (6-52) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN

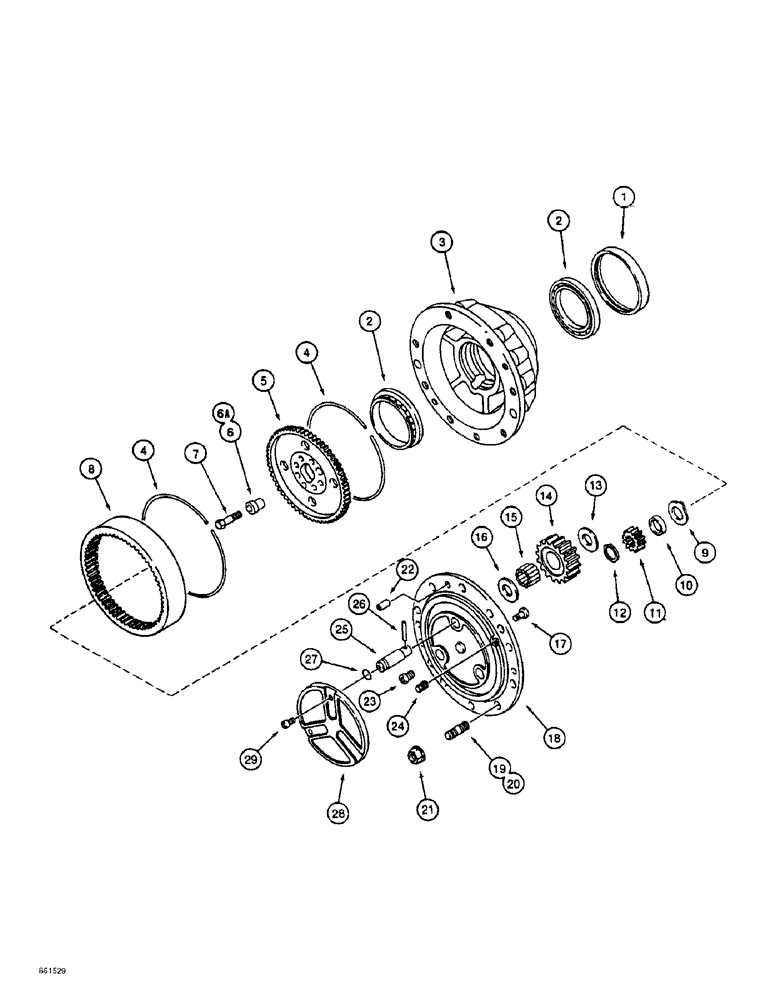

Схема запчастей Case 586E - (6-52) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN
3
14
4
23
21
25
5
22
12
2
18
24
11
15
6a
13
19
26
2
9
17
29
8
20
10
7
1
27
28
16
6
4

Артикул

Название

Примечание

Количество

D134010

AXLE

ASSEMBLY (CARRARO 121294) - rear drive, parts lists Figure 6-46 through 6-56, no longer available, order axle assembly D149743, Includes: Ref. 1 - 29

1шт.

D149793

CENTER AXLE

AXLE ASSEMBLY (CARRARO 126808) - rear drive, parts lists Figure 6-46 through 5-56, Includes: Ref. 1 - 29

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, 149 x 176 x 16, hub (Replaces seal K395102)

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

K395123

HUB

- wheel attaching

2шт.

4

K395095

CIRCLIP

RING - locking

4шт.

5

K395126

WHEEL

GEAR - support

2шт.

6

107071A1

BUSHING

- Centering, 20 mm OD (Replaces bushing K395105)

14шт.

6a

107072A1

CENTERING RING

BUSHING - centering, 24 mm OD (Replaces bushing K395105)

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

8

K395113

GEAR

- internal-tooth, planetary

2шт.

9

K395115

WASHER

- tab locking, special

2шт.

10

K395121

SPACER

- pinion gear

2шт.

11

K395114

GEAR

- pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING - snap, pinion gear retaining

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

- thrust, pinion gear, inner

6шт.

14

N13513

GEAR,29 T

Planetary 29 T

6шт.

15

N13514

NEEDLE BEARING

BEARING - needle, planetary gear, order package 19686A1 below

180шт.

16

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN - locking, planetary cover

2шт.

18

309421A1

COVER ASSY

CARRIER - planetary (Replaces cover N13516)

2шт.

19

K260218

STUD

- without collar, special

12шт.

20

N13515

STUD

- with collar, special, for recessed bolt holes

4шт.

21

K395089

WHEEL NUT

- hex, special, if used (Replaces nut D136813)

16шт.

21a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, used with nut K395089, not shown

16шт.

22

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

23

K395029

SCREW

- special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

N13517

PIN,34.4mm OD x 80mm L

SHAFT - pinion gear

6шт.

26

110677A1

SPLIT PIN/SAFETY PIN

PIN - pinion gear shaft (Replaces pin K965305)

6шт.

27

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

6шт.

28

K395135

COVER

PLATE - planetary cover

2шт.

29

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate (Replaces screw K395082) Hex Soc Flat Hd, M8 x 20, 10.9

6шт.

B94328

FLUID

SEALANT - tube, 89 ml (3 oz), form-in place, planetary cover to hub (Replaces sealant M20704)

1шт.

119686A1

10 NEEDLE BRG KIT

BEARING - needle, package of 10

1шт.
