Запчасти Case 585E (4-32) - LAMPS, FRONT LAMP (04) - ELECTRICAL SYSTEMS

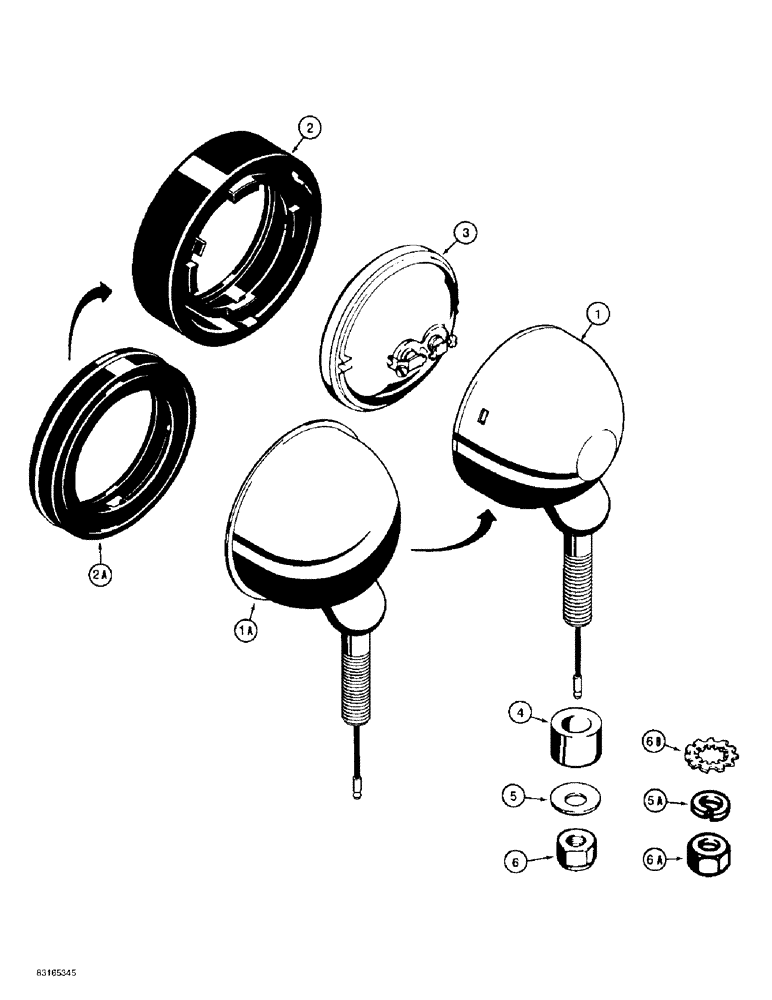

Схема запчастей Case 585E - (4-32) - LAMPS, FRONT LAMP (04) - ELECTRICAL SYSTEMS
5a
6a
2a
5
6
3
1
4
1a
2
b

Артикул

Название

Примечание

Количество

D88684

LAMP

ASSEMBLY - front, no longer available, order lamp assembly 310516A1

2шт.

310516A1

HEADLIGHT

HEADLAMP ASSEMBLY - front, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts Ref. 2 only

1шт.

1a

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts Ref. 2A only

1шт.

2

A25213

RETAINER

- sealed lamp rubber, locks to shell with three rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - sealed lamp rubber, locks over shell flange, if used

1шт.

3

A47179

BULB

LAMP - sealed beam (Replaces bulb A11280)

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch, if used

1шт.

5a

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch, if used

1шт.

6

231-2448

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2 inch NF, if used

1шт.

6a

425-158

JAM NUT,Jam, 1/2"-20, G5

If used Jam, 1/2"-20, G5

1шт.

6b

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Can be used to replace Ref. 5A, if used Ext-Int Tooth, 1/2"

1шт.

7

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch, used to help ground lamps to chassis, not shown

2шт.

Выбрано товаров: 14
