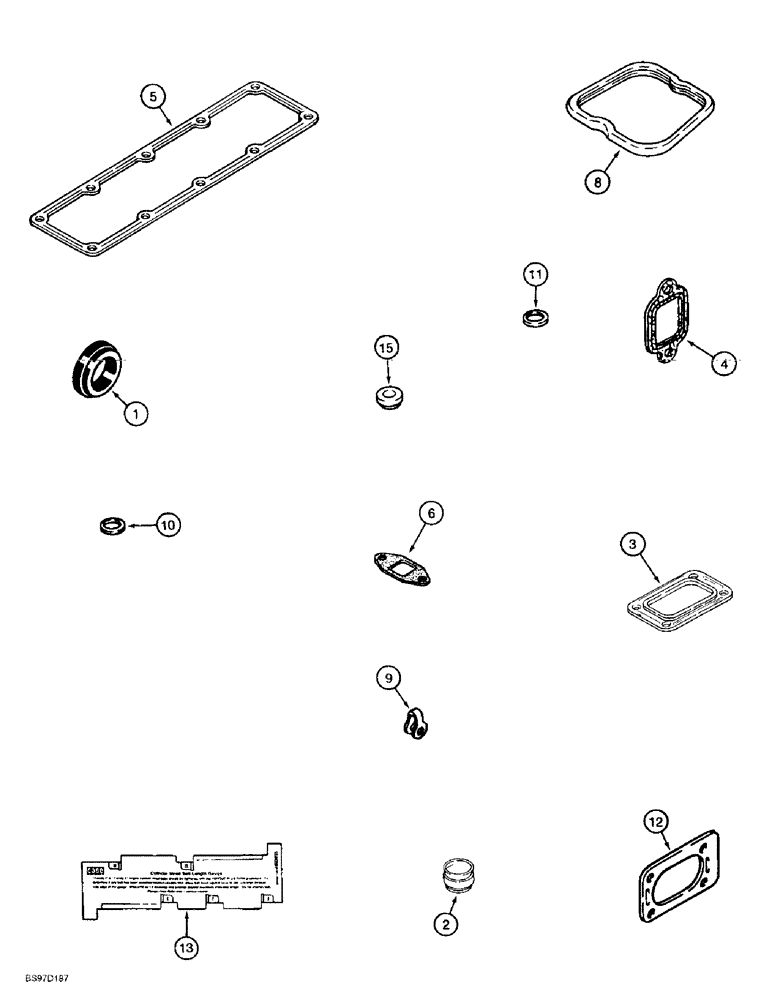

Запчасти Case 585E (2-44) - GASKET KIT, P.I.N. JJG0251722 AND AFTER, 4-390 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

A77914

SEAL PACKAGE

KIT - gasket, valve grind (Replaces kit A77870), Includes: Ref. 1 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, Figure 2-27A.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J901097

SEAL

- identified by color black with orange band

4шт.

2

J921640

SEAL

- valve, identified by color orange with silver band, included with kit A77870

4шт.

3

J919369

GASKET,0.5mm Thk

- turbocharger to manifold, included with kit A77870

1шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

5

J931605

BOLT

- intake manifold

1шт.

6

J931350

GASKET

- turbo oil drain tube, included with kit A77870

1шт.

8

J930906

GASKET

SEAL - rocker arm cover

4шт.

9

J903380

SEAL

- connector, fuel drain manifold tube

4шт.

10

J906659

SEAL

- injector nozzle, 7 mm injector tip

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

12

J914856

GASKET,1.02mm Thk

- air crossover connection, included with kit A77870

1шт.

13

J823921

GAUGE

- cylinder head, bolt length

1шт.

15

J928406

ISOLATOR

- noise, rocker arm cover

4шт.
