(9-074) - 8.5 M (28 FOOT) MAST FOR 585E, MODELS WITH DUAL LIFT CYLINDER, WITHOUT 31 DEGREE FORWAR TILT MAST

Запчасти Case 585E (9-074) - 8.5 M (28 FOOT) MAST FOR 585E, MODELS WITH DUAL LIFT CYLINDER, WITHOUT 31 DEGREE FORWAR TILT MAST (09) - CHASSIS/ATTACHMENTS

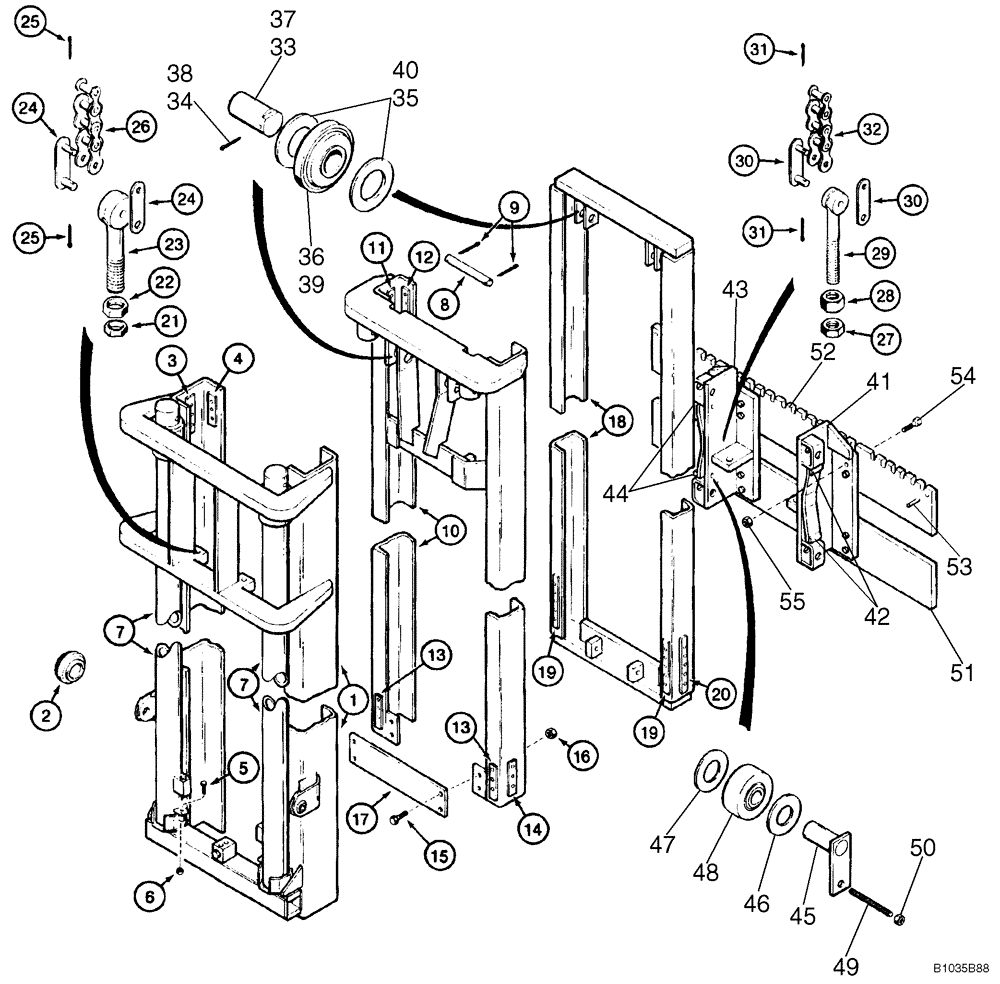

Схема запчастей Case 585E - (9-074) - 8.5 M (28 FOOT) MAST FOR 585E, MODELS WITH DUAL LIFT CYLINDER, WITHOUT 31 DEGREE FORWAR TILT MAST (09) - CHASSIS/ATTACHMENTS
8
32
22
45
48
34
35
41
50
36
3
12
42
4
13
1
47
23
38
7
5
29
27
40
52
33
55
31
24
10
44
30
6
16
9
17
20
1
25
51
13
28
49
24
7
15
25
26
43
19
37
46
21
2
30
54
1
53
31
14
18
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D141855

MAST ASSEMBLY

- forklift, 8.5 m (28 foot), Includes: Ref. 33 - 55 and Ref. 1 - 32 on Figure 9-72

1шт.

33

N7324

KIT

PIN ASSEMBLY - guide wheel, sheave, center frame (Replaces pin D36584)

2шт.

34

432-1240

COTTER PIN,3/16" x 2 1/2"

center frame 3/16" x 2 1/2"

2шт.

35

D36582

WASHER

- thrust, sheave, center frame

4шт.

36

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - chain guide, center frame

2шт.

37

D87070

PIN

- wheel, sheave, inner frame (Replaces pin 60939)

2шт.

38

432-1232

COTTER PIN,3/16" OD x 2" L

inner frame 3/16" x 2"

2шт.

39

D87069

SPROCKET ASSY.

WHEEL - chain guide, inner frame

2шт.

40

60944

THRUST WASHER

- thrust, sheave, inner frame

4шт.

41

D142642

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, right-hand, Includes: Ref. 42

1шт.

42

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

43

D142643

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, left-hand, Includes: Ref. 44

1шт.

44

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

45

D86606

AXLE

PIN ASSEMBLY - carriage roller, service, grease fitting not required (Replaces pin D55403), Includes: Ref. 45A

4шт.

45a

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

1шт.

46

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 6.35 mm (1/4 inch) thick

4шт.

47

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 2.8 mm (7/64 inch) thick

8шт.

48

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

BEARING - carriage roller

4шт.

49

83-45048

SET SCREW,Hex Soc, 1/2"-13 x 3"

SCREW - set, hex socket headless, 1/2 NC x 3 inch, oval point

4шт.

50

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

51

D74405

PLATE

- backing, lower, 25 (1) thick x 1524 mm (60 inch) wide, lower

1шт.

52

D74406

LARGE PLATE

PLATE - backing, upper, 25 (1) thick x 1524 mm (60 inch) wide, upper

1шт.

53

38-32832

PIN,7/16" x 2", Coiled

2шт.

54

461-35032

HEX SOC SCREW,1/2"-13 x 2"

BOLT - hex socket, 1/2 NC x 2 inch

16шт.

55

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

16шт.
