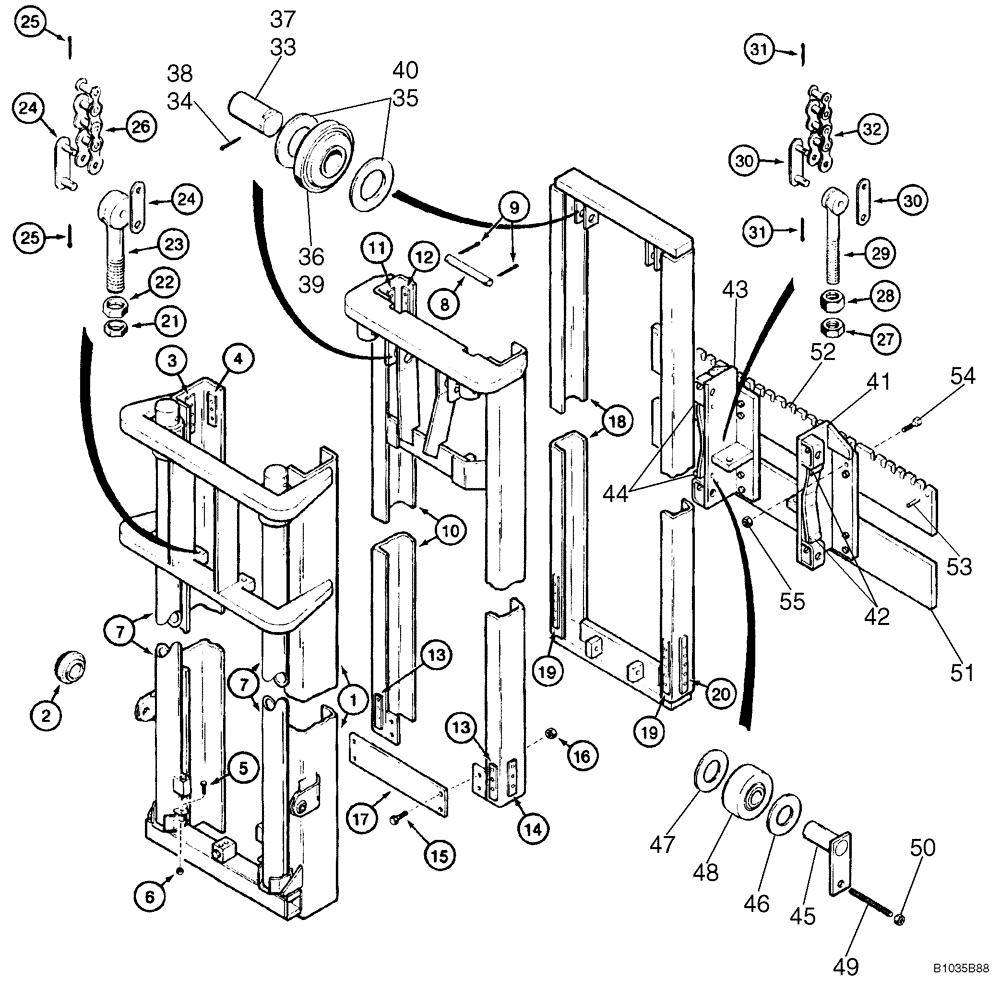

Запчасти Case 585E (9-072) - 8.5 M (28 FOOT) MAST FOR 585E, MODELS WITH DUAL LIFT CYLINDER, WITH OUT 31 DEGREE FORWARD TILT MAST (09) - CHASSIS/ATTACHMENTS

D141855

MAST ASSEMBLY

- forklift, 8.5 m (28 foot), machinery Ref., order from machinery price list, no longer available as an assembly, Includes: Ref. 1 - 32 and Ref. 33 - 55on Figure 9-74

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

D142823

FRAME ASSY

FRAME ASSEMBLY - mast, outer, Includes: Ref. 1 - 4

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - outer, order frame assembly D142823

1шт.

2

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning

3шт.

3

D55411

STRIP

PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long

2шт.

4

D55409

STRIP

PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long

4шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, parts list Figure 8-36

2шт.

8

D142413

PIN

- cylinder mounting

2шт.

9

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

4шт.

D142657

STRAP

FRAME ASSEMBLY - mast, center (Replaces frame assembly D142698), Includes: Ref. 10 - 17

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

10

NSS

NOT SOLD SEPARAT

FRAME - center, order frame assembly

1шт.

11

D55412

STRIP

PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long

2шт.

12

D55410

STRIP

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

13

D55411

STRIP

PLATE - wear, 3 (1/8) thick x 152 (6 inch) long

2шт.

14

D55409

STRIP

PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long

4шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

17

NSS

NOT SOLD SEPARAT

PLATE - reinforcement, order frame assembly

1шт.

D142706

FRAME ASSY

FRAME ASSEMBLY - mast, inner (Replaces frame assembly D142699), Includes: Ref. 18 - 20

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME - inner, order frame assembly

1шт.

19

D27362

WEAR PAD

PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long

2шт.

20

D27365

PAD

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

21

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF, eyebolt, outer frame

2шт.

22

425-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, eyebolt, outer frame

2шт.

23

N6011

BOLT

BOLT - eye, 3/4 inch NF, outer frame (Replaces eyebolt D142541)

2шт.

24

N6010

LINK,50.749mm Pitch

ASSEMBLY - master, chain, outer frame, Includes: Ref. 25

4шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

26

D142536

CHAIN (AG)

CHAIN - rollerless, #105, 119 links, outer frame

2шт.

27

425-1516

JAM NUT,Jam, 1"-14, G5

- hex, jam, 1 inch NF, eyebolt, inner frame

2шт.

28

429-1116

NUT,1"-14, G8

- hex, 1 inch NF, grade 8, eyebolt, inner frame

2шт.

29

N6877

BOLT

BOLT - eye, 1 inch NF, inner frame

2шт.

30

N6878

CHAIN LINK

LINK ASSEMBLY - master, chain, inner frame, Includes: Ref. 31

4шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

32

D142696

CHAIN (AG)

CHAIN - rollerless, #85, 135 links, inner frame

2шт.
