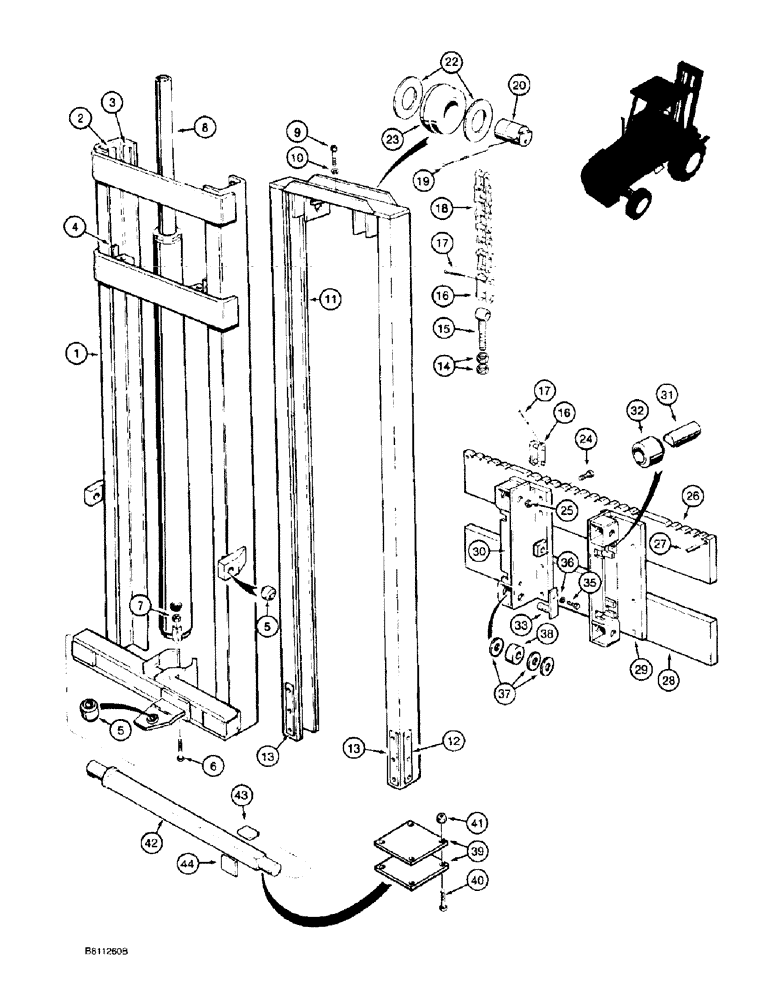

Запчасти Case 585E (9-032) - 3.6 M (12 FOOT) MAST FOR 585E, MODELS WITH SINGLE LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

D121918

MAST ASSEMBLY

- forklift, 3.6 m (12 foot), machinery, Ref., order from machinery price list, no longer available as an assembly, Includes: Ref. 1 - 44

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

D75937

CHANNEL

FRAME ASSEMBLY - mast, outer, Includes: Ref. 2 - 5

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

2

D32555

PAD

PLATE - wear, 3 (1/8) thick x 127 mm (5 inch) long

2шт.

3

D27365

PAD

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

4

D47895

WEAR PAD

PLATE - wear, 5 (3/16) thick x 114 mm (4-1/2 inch) long

2шт.

5

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self aligning

3шт.

6

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex, 7/16 NC x 6 inch, plated

1шт.

7

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, parts list Figure 8-34

1шт.

9

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket, self-locking, 1/2 NF x 2 inch

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

D39480

CHANNEL

FRAME ASSEMBLY - mast, inner, Includes: Ref. 12 and 13

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

12

D27362

WEAR PAD

PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long

2шт.

13

D27365

PAD

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

14

425-1116

NUT,1"-14, G5

- hex, 1 inch NF

4шт.

15

N6877

BOLT

BOLT - eye, 1 inch NF

2шт.

16

N6878

CHAIN LINK

LINK ASSEMBLY - master, chain, Includes: Ref. 17

4шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

18

D39483

CHAIN (AG)

CHAIN - rollerless, #105, 79 links

2шт.

19

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

20

N7324

KIT

PIN ASSEMBLY - guide wheel, includes grease fitting not required, Includes: Ref. 21

2шт.

21

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

1шт.

22

D36582

WASHER

- thrust, wheel

4шт.

23

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - chain guide

2шт.

24

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket, 1/2 NC x 1-3/4 inch

16шт.

25

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC, plated

16шт.

26

D36580

LARGE PLATE

PLATE - backing, upper

1шт.

27

38-32832

PIN,7/16" x 2", Coiled

2шт.

28

D36581

LARGE PLATE

PLATE - backing, lower

1шт.

29

D52321

SUPPORT ASSY.

CARRIAGE - mast, right-hand

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

30

D52322

SUPPORT ASSY.

CARRIAGE - mast, left-hand

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

31

D36589

PIN,25.4mm OD x 69.85mm L

- side roller, carriage

4шт.

32

D36590

ROLLER

BEARING - side roller, carriage

4шт.

33

D86605

AXLE

PIN - roller, service, includes grease fitting not required, Includes: Ref. 34

4шт.

34

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

1шт.

35

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

37

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 2.8 mm (7/64 inch) thick

12шт.

38

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

BEARING - carriage roller

4шт.

39

D88745

LARGE PLATE

PLATE - trunnion bar end

4шт.

40

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch, plated

8шт.

41

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

42

D75934

BAR

- trunnion

1шт.

43

D40841

LARGE PLATE

PLATE - wear, 50 (1-61/64) x 51 (2) x 6.4 mm (1/4 inch), horizontal

4шт.

44

D40840

LARGE PLATE

PLATE - wear, 62.3 (2-29/64) x 51 (2) x 6.4 mm (1/4 inch), vertical

4шт.
