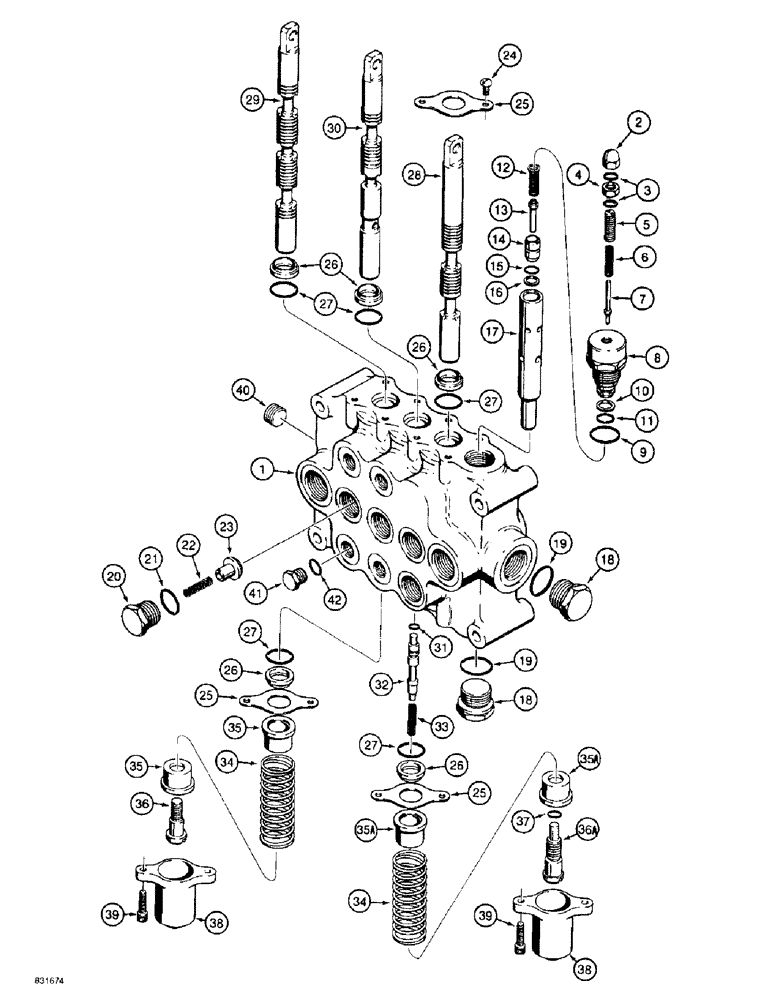

Запчасти Case 585E (8-28) - FORKLIFT CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, Includes: Ref. 1 - 40

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, order valve assembly D124427

1шт.

N7488

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 2 - 17

1шт.

2

S116073

CAP

NUT - dome, 3/8 inch NF, 3/8 inch NF

1шт.

3

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- 7/16 ID x 1/16 inch wide, dome nut and jam nut (Replaces O-ring S116070)

2шт.

4

S116072

JAM NUT

- special, hex, adjusting screw

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW - adjusting, main relief valve, order valve assembly N7488

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - plunger, order valve assembly N7488

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve, order valve assembly N7488

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve, order valve assembly N7488

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Outer

1шт.

10

D75841

OIL SEAL

RING - backup, internal

1шт.

11

S116070

O-RING

- internal

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - inner, order valve assembly N7488

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - piston, order valve assembly N7488

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - relief valve, order valve assembly N7488

1шт.

15

238-7012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

Piston (Replaces O-ring N6417) -012, Cl 7, .364" ID x .070" Thk

1шт.

16

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, piston O-ring (Replaces ring C11865)

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve, order valve assembly N7488

1шт.

18

S62127

PLUG

- valve

2шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

20

S48057

PLUG

- load check valve

3шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

22

S48065

SPRING

- load check valve

3шт.

23

S48056

VALVE POPPET

POPPET - load check valve

3шт.

24

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch, spool end

6шт.

25

S48043

PLATE

- spool end

6шт.

26

D75838

SEAL

WIPER - spool

6шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

(Replaces O-ring F62075) -210, 70 Duro, .734" ID x .139" Thk

6шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - lift circuit, right-hand, order valve assembly D124427

1шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - sideshift circuit, left-hand, order valve assembly D124427

1шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - tilt circuit, center, order valve assembly D124427

1шт.

31

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk, Center tilt spool (Replaces O-ring T30271)

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON - center tilt spool, order valve assembly D124427

1шт.

33

N8448

SPRING

- piston

1шт.

34

S48046

SPRING

- spool

3шт.

35

S48044

SEAT

- spring, right-hand lift and left-hand sideshift

4шт.

35a

N8449

SEAT

- spring, center tilt spool

2шт.

36

S48045

BOLT

SCREW - spool end, right-hand lift and left-hand sideshift spool ends

2шт.

36a

N8447

SCREW

SCREW - center tilt spool end

1шт.

38

S48042

CAP

COVER - spool end

3шт.

39

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT - hex socket, 1/4 NC x 7/8 inch

6шт.

40

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

41

76349

PLUG,9/16" - 18 ORB

Upper and lower valve ports, Not required when sideshift attachment is used, Incl. Ref. 42 Hex Hd, 9/16"-18 ORB

2шт.

37

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Used with ref. 36A screw only

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
