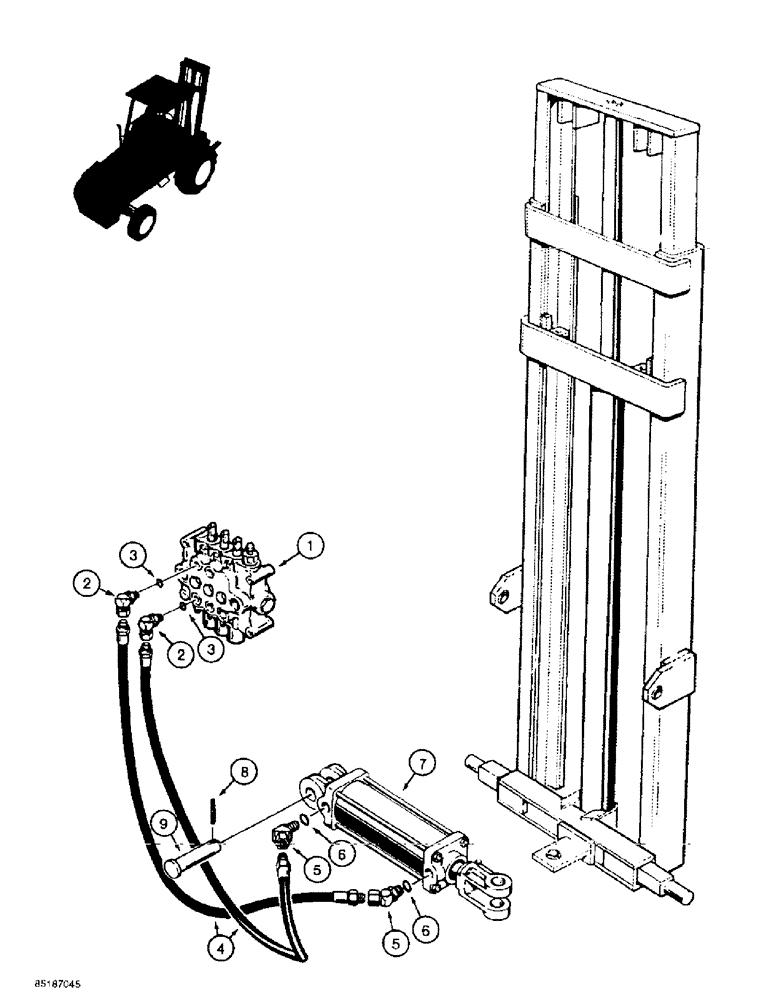

Запчасти Case 585E (8-22) - MAST SIDESHIFT HYD. CIRCUIT, MODELS W/SINGLE OR DUAL MAST CYL., W/ OR W/O 31 DEGREE FWD. MAST TILT (08) - HYDRAULICS

1

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, forklift, parts list Figure 8-28 and 8-30

1шт.

2

218-5204

90 ELBOW,90 Degree, 9/16"-18 O-Ring x 1/4" NPSM Fem

- 90 degree, 9/16-18 adj O-ring x 1/4 inch swivel str pipe, Includes: Ref. 3

2шт.

4

D26365

HOSE

- 1143 mm (45 inch) long, Serial Range: valve-cylinder

2шт.

5

D148099

ELBOW

- 45 degree, special, at cylinder, Includes: Ref. 6

2шт.

7

D40197

CYLINDER

- 64 (2-1/2) ID x 152 mm (6 inch) stroke, sideshift, parts list Figure 8-46

1шт.

8

38-31632

PIN,1/4" x 2", Coiled

2шт.

9

D36819

PIN,30.23mm OD x 111.25mm L

- clevis, cylinder mounting

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
