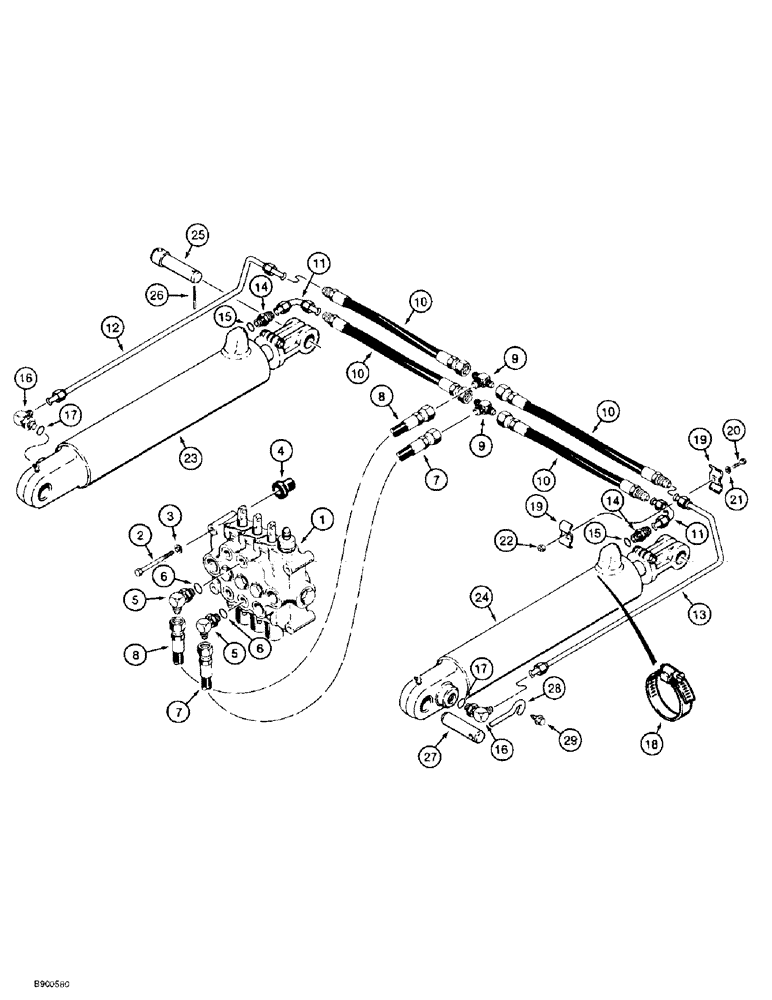

Запчасти Case 585E (8-20) - MAST TILT CYLINDER HYDRAULIC CIRCUIT, MODELS WITH DUAL LIFT CYLINDERS, W/31 DEGREE FORWARD MAST TILT (08) - HYDRAULICS

1

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, forklift, parts list Figure 8-28 and 8-30

1шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

D75755

ISOLATOR

INSULATOR - rubber, valve mounting

3шт.

5

D69179

ELBOW

- 90 degree, .125 inch restriction, used on all models except with 8.5 m (28 foot) mast, Includes: Ref. 6

2шт.

5

D80997

ELBOW

- 90 degree, .078 inch restriction, used on models with 8.5 m (28 foot) mast only, Includes: Ref. 6

2шт.

7

D147214

HOSE

- 350 mm (13-3/4 inch) long, lower valve port to tee for rod end cylinder tubes

1шт.

8

D147215

HOSE

- 425 mm (16-3/4 inch) long, upper valve port to tee for closed end cylinder tubes

1шт.

9

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

10

D147213

HOSE

- 375 mm (14-3/4 inch) long, rod and closed ends

4шт.

11

D147229

TUBE

- at rod end of tilt cylinders

2шт.

12

D146659

TUBE ASSY.

TUBE - at closed end of left-hand tilt cylinder

1шт.

13

D146661

TUBE ASSY.

TUBE - at closed end of right-hand tilt cylinder

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 15

2шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 17

2шт.

18

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

2шт.

19

A12032

CLAMP

- tilt cylinder tubes

4шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

1343763C1

JACK BODY

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 381 mm (15 inch) stroke, parts list Figure 8-44

1шт.

24

1343764C1

JACK BODY

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 381 mm (15 inch) stroke, parts list Figure 8-44

1шт.

25

D36819

PIN,30.23mm OD x 111.25mm L

- clevis, rod end

2шт.

26

38-31632

PIN,1/4" x 2", Coiled

2шт.

27

D146655

PIN,25.37mm OD x 93.98mm L

- cylinder mounting, closed end

2шт.

28

H313981

PIN

- retaining, to frame bracket

2шт.

29

281-44912

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

SCREW - self tapping, hex washer head, 3/8 NC x 3/4 inch

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Used with either ref. 5 elbow

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
