Запчасти Case 585E (7-18) - PARKING BRAKE (07) - BRAKES

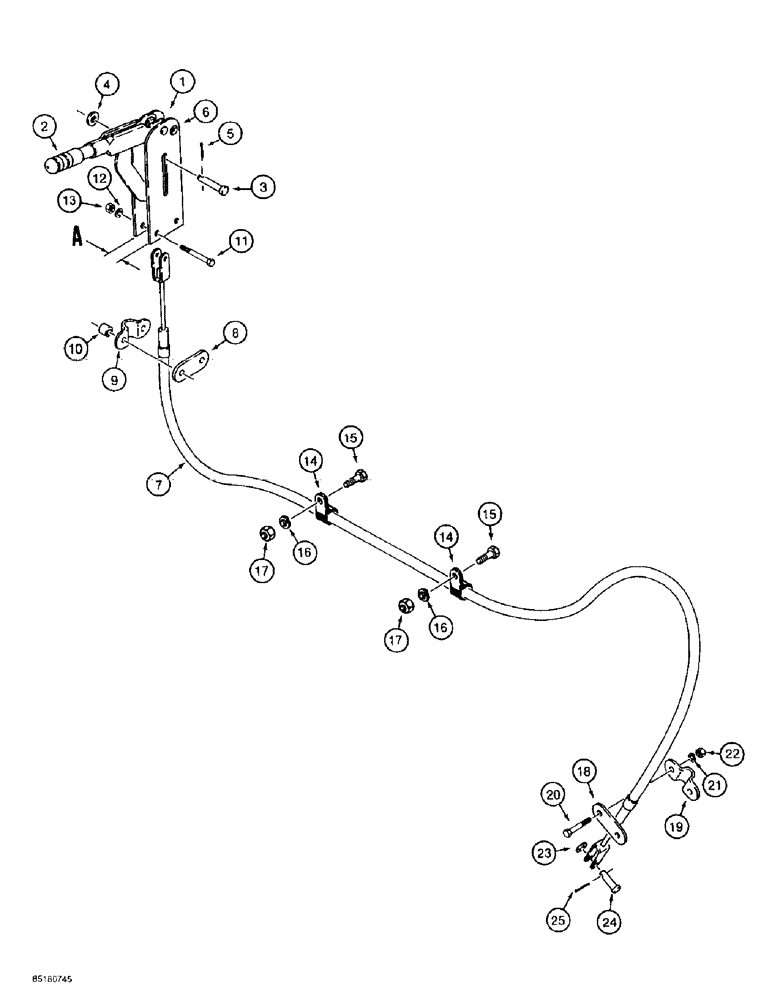

Схема запчастей Case 585E - (7-18) - PARKING BRAKE (07) - BRAKES
17
14
16
10
8
6
4
21
2
20
15
11
25
22
5
9
1
19
18
17
15
14
23
13
24
12
16
3
7

Артикул

Название

Примечание

Количество

1

D121555

LEVER ASSY.

LEVER ASSEMBLY - parking brake, order lever D139909 for service, Includes: Ref. 2 - 6

1шт.

1

D139909

LEVER ASSY.

LEVER ASSEMBLY - parking brake, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

3

D42458

PIN

- clevis, special, lever to brake cable

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

5

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - brake lever

1шт.

7

D136510

CABLE

- parking brake (Replaces cable D127893)

1шт.

8

D129747

PLATE

- oval spacer

1шт.

9

D121608

CLAMP

- parking brake, Serial Range: cable-lever

1шт.

10

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

- split, clamp (Replaces spacer D122882)

2шт.

11

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Cable to transaxle 1/2", Insul, 3/8" Bolt

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

16

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

D129747

PLATE

- oval spacer, mounts to extension on transaxle countershaft

1шт.

19

D121608

CLAMP

- parking brake cable

1шт.

20

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

24

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Lower cable mounting 5/16" x .940", HDN

1шт.

25

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

Выбрано товаров: 26
