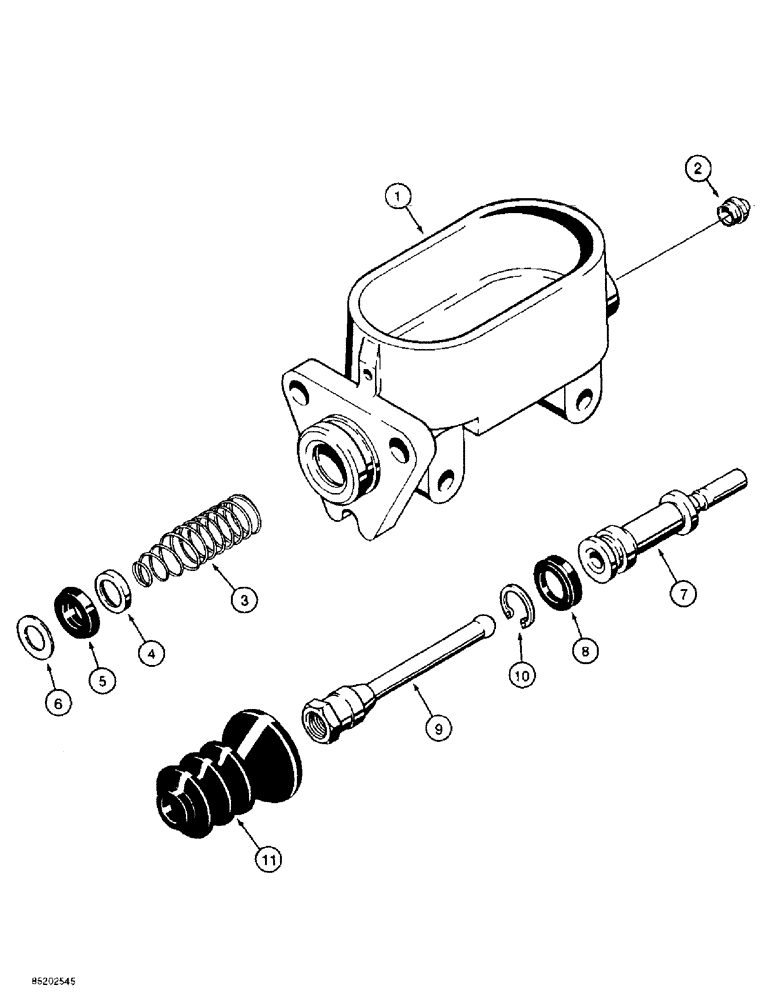

Запчасти Case 585E (7-16) - BRAKE MASTER CYLINDER (07) - BRAKES

D127519

CYLINDER,36.58mm Stroke

ASSY - master brake, Includes: Ref. 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

2

N6825

SEAT

- tube

1шт.

N6823

PISTON

ASSEMBLY - master cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - cup

1шт.

5

N6830

CUP

- pump

1шт.

6

N6828

GUARD

PROTECTOR - cup

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

8

N6829

SEAL

- double lip

1шт.

9

L32137

ROD

- push

1шт.

10

100-2190

SNAP RING,0.901", Int, #90

Ring, Snap, , master cylinder 0.901", Int, #90

1шт.

11

N8819

BOOT

- push rod

1шт.
