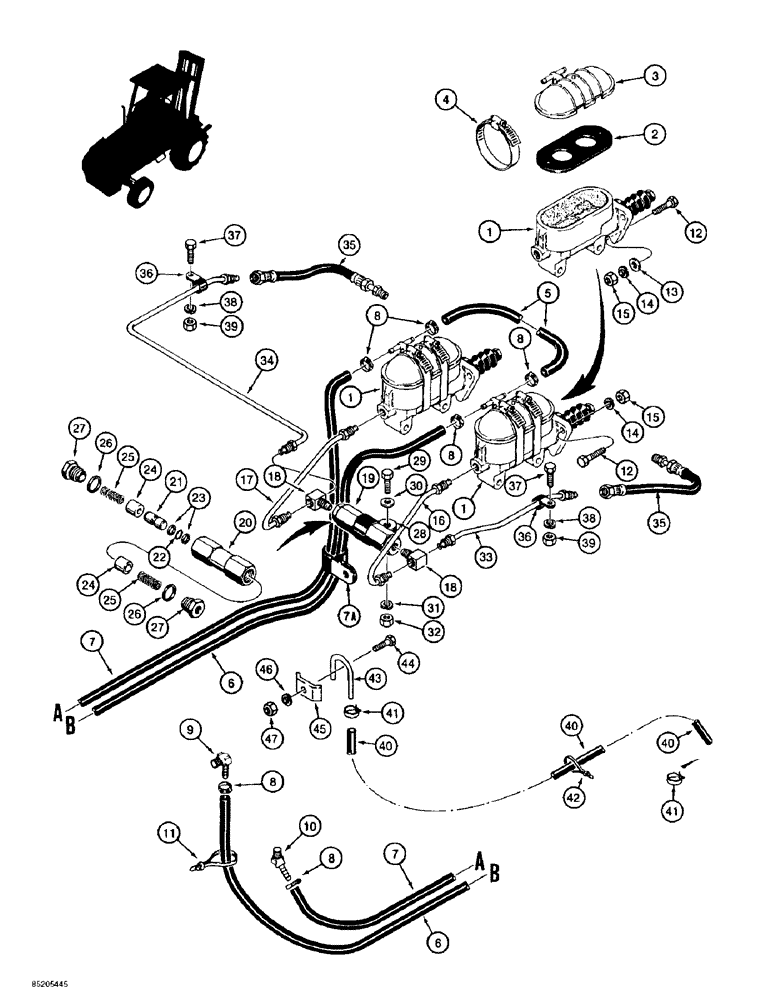

Запчасти Case 585E (7-12) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

1

D127519

CYLINDER,36.58mm Stroke

ASSY - master brake, parts list Figure 7-16

2шт.

2

D128313

GASKET

- master cylinder

2шт.

3

D127405

COVER

- master cylinder

2шт.

4

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adj, 2-13/16 - 3-3/4 inch dia, to master cylinder, includes screw

4шт.

5

REF

INSTRUCTION

HOSE - 183 mm (7-3/16 inch) long cut from C18275 hose, see below, cylinder connecting

1шт.

6

REF

INSTRUCTION

HOSE - 6 (1/4) ID x 1905 mm (75 inch) long, cut from H400184 hose, see below, cylinder connectiong hose to hydraulic oil filter

1шт.

7

REF

INSTRUCTION

HOSE - 6 (1/4) ID x 1480 mm (58 inch) long, cut from H400184 hose, see below, cylinder connecting hose to hydraulic reservoir return tube

1шт.

7a

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- P-type

1шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

6шт.

9

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT, barb hose stem

1шт.

For brake pedals and mounting parts see Figure 7-10. For further hydraulic related parts, see return lines and filter connections on Figure 8-6 and 8-8.

1шт.

10

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow - 45 degree, 1/4 barb end by 1/8 inch PT, barb hose stem

1шт.

For brake pedals and mounting parts see Figure 7-10. For further hydraulic related parts, see return lines and filter connections on Figure 8-6 and 8-8.

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

13

D41740

WASHER

- flat, special, 3/8 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

6шт.

15

425-106

NUT,3/8"-16, Cl 5

6шт.

16

D128367

TUBE ASSY.

TUBE - right-hand master, Serial Range: cylinder-tee

1шт.

17

D128365

TUBE

- left-hand master, Serial Range: cylinder-tee

1шт.

18

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- 1/8 PT br x 7/16-24 inch inverted fl x inverted fl, to regulator valve

2шт.

19

D126650

VALVE

ASSEMBLY - equalizer, Includes: Ref. 20 - 27

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - equalizer valve, order valve assembly D126650

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - equalizer valve, order valve assembly D126650

1шт.

22

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

23

N9058

BACK-UP RING,0.424" ID x 0.63" OD x 0.103"

- backup, piston O-ring

2шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

25

NSS

NOT SOLD SEPARAT

SPRING - piston

2шт.

26

A16673

GASKET

- plug, copper

2шт.

27

NSS

NOT SOLD SEPARAT

PLUG - equalizer valve end

2шт.

28

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- P-type, regulator valve

1шт.

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

6.35 mm ID x 1905.00 mm Bulk, SAE 30R1, SAE 30R3, Cut from Bulk Hose

1шт.

C18275

HOSE

- bulk 6 (1/4) ID x 118 mm (44 inch) long, no longer used

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

33

D128371

TUBE ASSY.

TUBE - right-hand master cylinder to brake cylinder hose

1шт.

34

D128369

TUBE ASSY.

TUBE - left-hand master cylinder to brake cylinder hose

1шт.

35

D66741

HOSE,6.35mm ID x 270mm L

- 254 mm (10 inch) long, brake tube to brake cylinders on transaxle

2шт.

36

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

37

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

38

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

Cut from 427683C1 Bulk Hose, See Below, Brake Vent 6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.

For brake pedals and mounting parts see Figure 7-10.

1шт.

41

F64936

CLAMP

- steel spring

2шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

43

D133917

TUBE

- vent

1шт.

44

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

45

L15301

CLAMP

-

1шт.

46

492-11038

LOCK WASHER,3/8"

1шт.

47

425-106

NUT,3/8"-16, Cl 5

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk, 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.

For brake pedals and mounting parts see Figure 7-10.

1шт.
