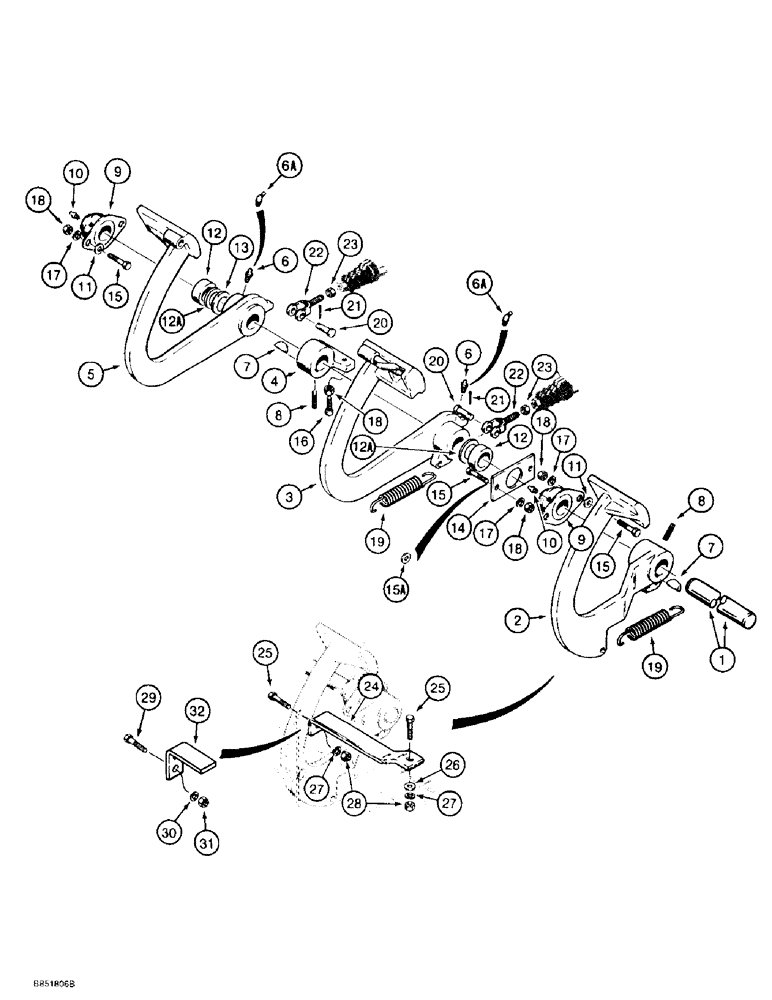

Запчасти Case 585E (7-10) - BRAKE PEDALS AND MOUNTING (07) - BRAKES

1

D67451

SHAFT

- brake pedal

1шт.

2

D67294

PEDAL

- brake, both sides

1шт.

3

D67351

PEDAL

- brake, left-hand

1шт.

4

D68123

STOP

- brake pedals

1шт.

5

D67342

PEDAL

- brake, right-hand

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

2шт.

6a

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch, if used

2шт.

7

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

2шт.

8

181-811

SCREW - set, square, 3/8 NC x 3/4 inch, no longer used

2шт.

9

D77731

FLANGED BEARING

BEARING - pedal shaft

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

11

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special, 3/8 inch, spacer

4шт.

12

D89845

SPACER

- pedal

2шт.

12a

495-81277

WASHER - flat, 1-5/16 x 2 x 1/16 inch, no longer used

2шт.

13

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

- flat, 1-5/16 x 2 x 1/8 inch

1шт.

14

D69458

STOP

PLATE - spacer retaining

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

15a

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special, 3/8 inch

1шт.

16

83-63820

SCREW - set, hex socket headless, 3/8 NC x 1-1/4 inch

2шт.

17

492-11038

LOCK WASHER,3/8"

6шт.

18

425-106

NUT,3/8"-16, Cl 5

8шт.

19

R15380

SPRING

-

2шт.

20

427-7119

CLEVIS PIN,11.13mm OD x 30.23mm L

PIN - clevis, 7/16 x 1-3/16 inch, hardened

2шт.

21

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

22

D38620

YOKE

CLEVIS - master cylinder

2шт.

23

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

24

D72028

STOP

- pedal, mounts to floor plate, models with single and dual mast cylinders (site view) only

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Used with Ref. 24 stop only

2шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with Ref. 24 stop only 3/8", SAE

1шт.

27

492-11038

LOCK WASHER,3/8"

used with Ref. 24 stop only 3/8"

2шт.

28

425-106

NUT,3/8"-16, Cl 5

Used with Ref. 24 stop only 3/8"-16, G5

2шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

D146530

STOP

- pedal, mounts to operators compartment, models with dual mast cylinders and 31 degree forward mast tilt only

1шт.
