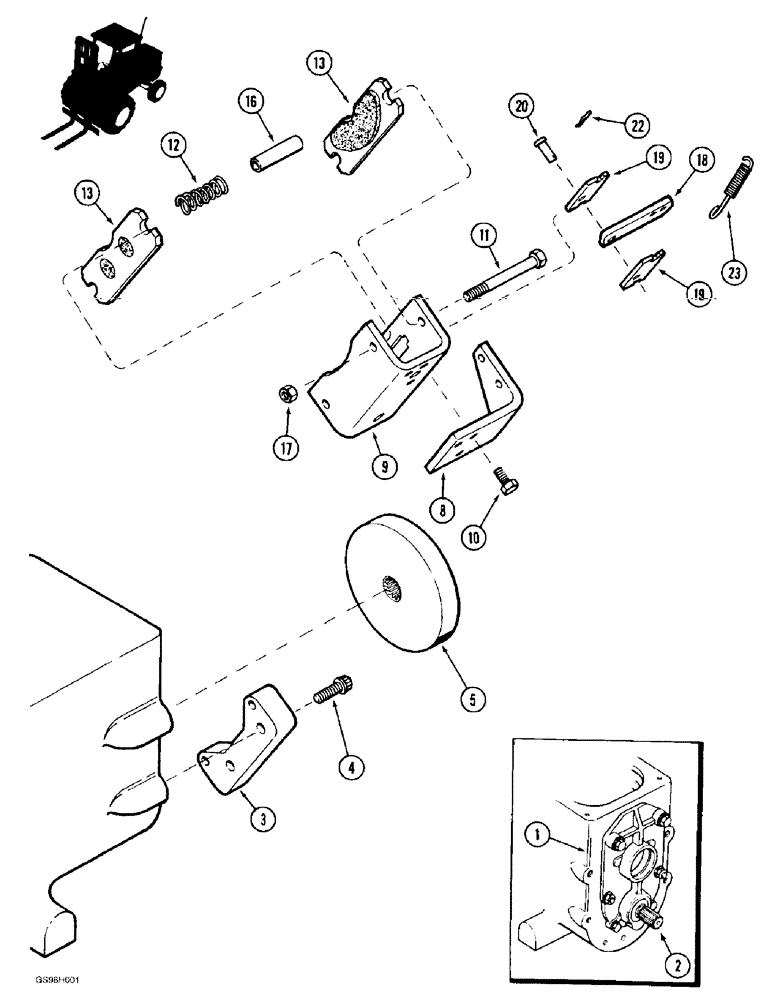

Запчасти Case 585E (7-06) - TRANSAXLE PARK BRAKE, 2 WHEEL DRIVE (07) - BRAKES

1

REF

INSTRUCTION

COVER - front, transmission housing, see Figure 6-74

1шт.

2

REF

INSTRUCTION

COUNTERSHAFT - pinion, see Figure 6-66

1шт.

3

A179065

LARGE PLATE

PLATE - mounting, brake

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 12 point flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

5

A168790

DISC

- brake

1шт.

A182779

BRAKE

ASSEMBLY - park, Includes: Ref. 8 - 23

1шт.

8

A52380

BRACKET

- mounting, cable

1шт.

9

A52256

HOUSING

- brake

1шт.

10

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

- hex, 7/16 NC x 3/4 inch

3шт.

11

A52263

BOLT

- retaining, brake

2шт.

12

A52262

SPRING

- stator

2шт.

13

A182740

BRAKE PAD

PAD - brake

2шт.

16

A52261

SPACER

- compression

2шт.

17

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 7/16 inch NC, discard

2шт.

18

A52379

LEVER

- actuating

1шт.

19

A52257

PIVOT

PLATE - pivot

2шт.

20

A52259

PIN

- clevis, pivot

1шт.

22

A52260

PIN

- retainer, pivot pin

1шт.

23

A52264

SPRING

- extension

1шт.
