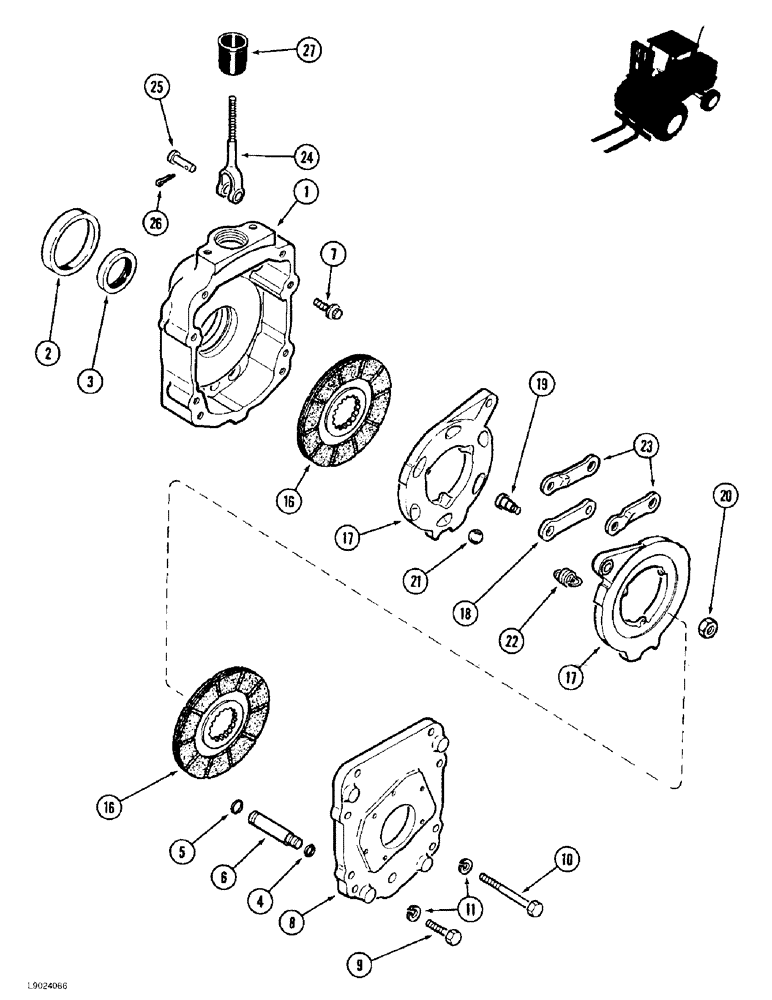

Запчасти Case 585E (7-02) - TRANSAXLE, DIFFERENTIAL BRAKE HOUSING AND BRAKE (07) - BRAKES

1

A179102

HOUSING

ASSEMBLY - brake, Includes: Ref. 2

2шт.

2

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - tapered roller bearing (Replaces cup A7890)

1шт.

3

A179054

OIL SEAL,63.54mm ID x 88.82mm OD x 12mm Thk

SEAL - oil

2шт.

4

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

(Replaces O-ring A64436) -113, Cl 7, .549" ID x .103" Thk

2шт.

5

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

(Replaces O-ring A182413) -115, Cl 7, .674" ID x .103" Thk

2шт.

6

A182439

AXLE PIN

PIN - spring anchor

2шт.

7

A156878

12 PT SCREW

BOLT - 12 point flange, 1/2 NC x 1-1/4 inch

4шт.

8

A168821

COVER

- brake housing, right-hand, shown

1шт.

8

A168822

COVER

- brake housing, left-hand

1шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

10

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

1349144C2

BRAKE

ASSEMBLY - disc (Replaces brake assembly A168628), Includes: Ref. 16 - 23

2шт.

16

1349141C2

DISC

- brake, rotating

2шт.

A48949

DISC

- brake, actuating

1шт.

REF. # 16 . Both of those Brake Discs are used in Brake Assy. 1349144C2. If the dealer needs just the Rotating disc, he orders the 1349141C3 (C2 is subbed to C3); if he needs the Actuating Disc Assy., he orders the A48949, which consists of Ref. 17 thru 23.

1шт.

17

A41860

DISC

- brake, actuating

2шт.

18

1276923C2

LINK

- actuating, disc

1шт.

19

A41865

BOLT

- link, disc

2шт.

20

A42801

JAM NUT

- hex jam, 1/2 inch NF

2шт.

21

211-1032

BALL,25.4mm OD, Gr 24

- chrome alloy steel, 1 inch dia, gr 24

5шт.

22

A47719

SPRING

- disc tension

3шт.

23

A48952

LINK

- actuating, disc

2шт.

24

REF

INSTRUCTION

ROD - pull, brake actuating, see Figure 7-4

2шт.

25

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN - clevis, rod to brake links

2шт.

26

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

27

A179595

BOOT

SEAL - dust, brake housing

2шт.
