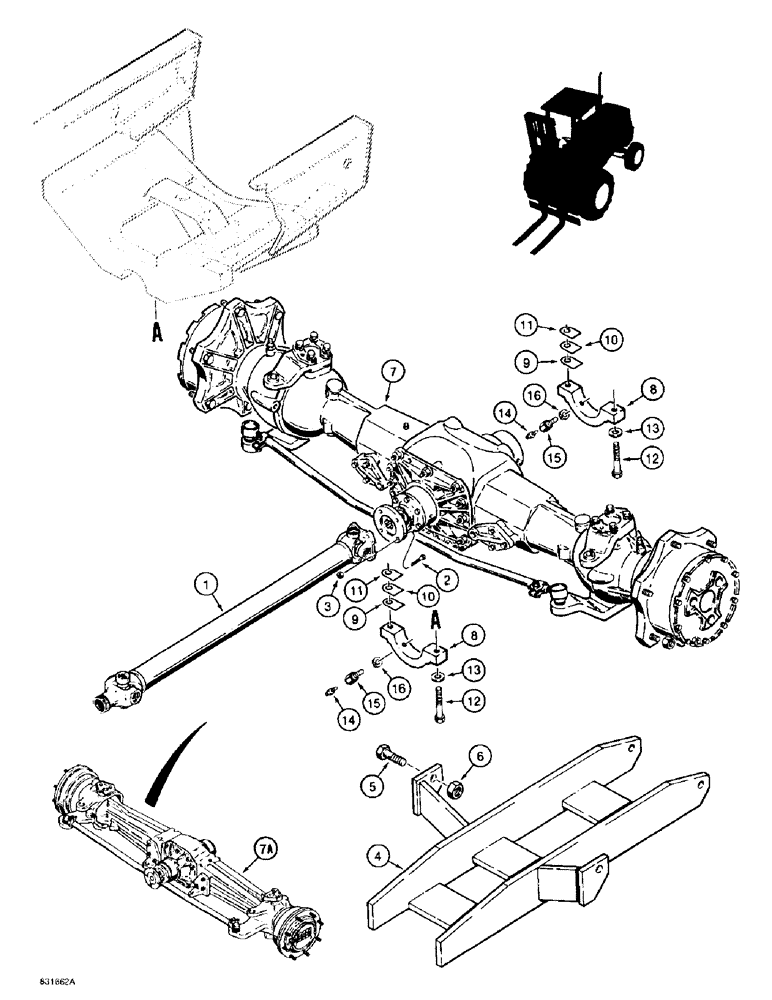

Запчасти Case 585E (6-32) - REAR DRIVE AXLE MOUNTING AND DRIVE SHAFT, FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

1

D128560

SHAFT

ASSEMBLY - drive, rear wheel, parts list Figure 6-34

1шт.

2

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

4шт.

3

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

4шт.

4

D125602

GUARD

- drive shaft

1шт.

5

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

6

231-14016

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

4шт.

7

D124605

CENTER AXLE

AXLE ASSEMBLY (CARRARO 118218) - rear drive, parts list Figure 6-36 through 6-44, no longer available, order D149793 axle assembly

1шт.

7a

D134010

AXLE

ASSEMBLY (CARRARO 121294) - rear drive, parts list Figure 6-46 through 6-56, no longer available, order D149793 axle assembly

1шт.

7a

D149793

CENTER AXLE

AXLE ASSEMBLY (CARRARO 126808) - rear drive, parts list Figure 6-46 through 6-56

1шт.

D126549

KIT

- bearing cap, replaces production axle caps, must order two kits, no longer available as a kit, order components, Includes: Ref. 8 - 11

1шт.

8

D126550

HALF-COLLAR

CAP - axle mounting, rear

1шт.

9

D126551

SHIM,0.3mm Thk

Cap 0.3mm Thk

1шт.

10

D126552

SHIM,0.4mm Thk

Cap 0.4mm Thk

1шт.

11

D126553

SHIM,0.5mm Thk

Cap 0.5mm Thk

1шт.

12

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

15

D102386

ADAPTER

- grease fitting

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
