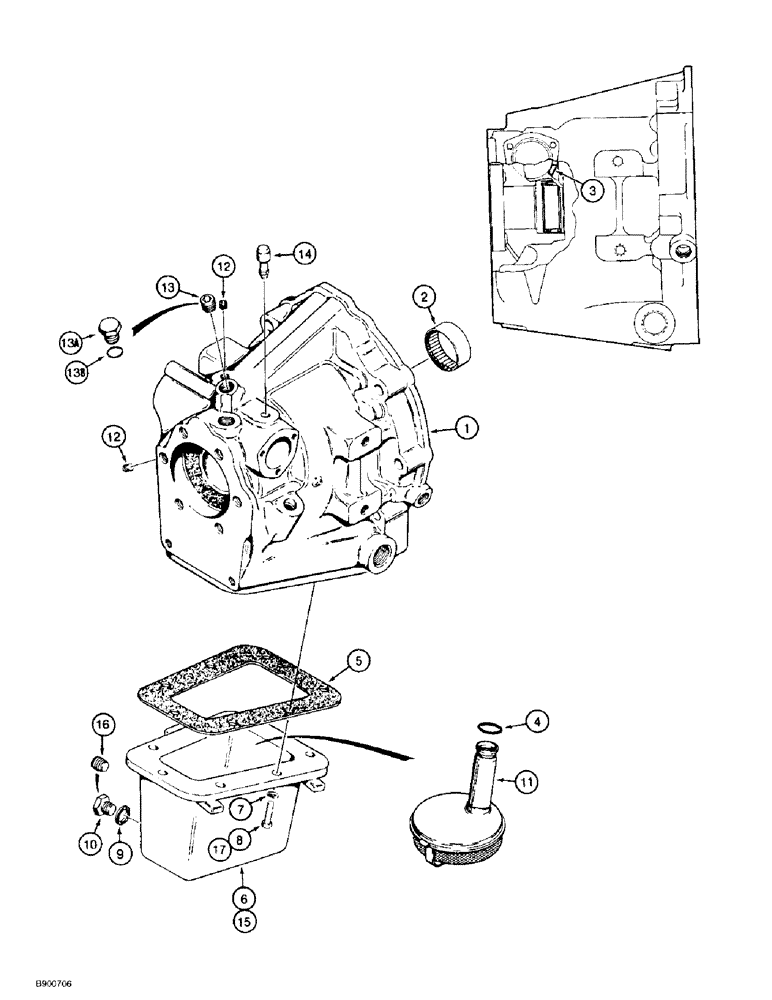

Запчасти Case 584E (6-10) - POWER SHUTTLE, HOUSING AND OIL PAN (06) - POWER TRAIN

D136020

CLUTCH ASSEMBLY

SHUTTLE ASSY - power, W/O tube & relief valve (D135703 & D133321 on Fig. 6-4 & 6-6) (Warner Gear No. 10-16-000-026) & W/O clutch dump solenoid, service replacement for D135731 (Warner gear no. 10-16-000-033) power shuttle used in production on some models

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D140405

CLUTCH ASSEMBLY

SHUTTLE ASSY - power, W/O tube & relief valve (D135703 & D133321 on Fig. 6-4 & 6-6) (Warner Gear No. 10-16-000-026) & W/O clutch dump solenoid, service replacement for D135731 (Warner gear no. 10-16-000-033) power shuttle used in production on some models

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D140492

SHUTTLE ASSY - power, W/O tube & relief valve (D135703 & D133321 on Fig. 6-4 & 6-6) (Warner Gear No. 10-16-000-026) & W/O clutch dump solenoid, service replacement for D135731 (Warner gear no. 10-16-000-033) power shuttle used in production on some models

1шт.

If replacing D140492 power shuttle and your neutral start switch is bad, you will need to order D141061 switch, Ref. 48A on Figure 6-15, in addition to the kit.

1шт.

D70650

HOUSING

HOUSING ASSEMBLY - power shuttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - power shuttle, order housing assembly

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 inch OD, housing

1шт.

3

41-107

PLUG,Cup, 7/16"

PLUG - cup, 7/16 inch

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

O-RING - screen tube

1шт.

5

R29956

GASKET,0.76mm Thk

GASKET - oil pan, if used

1шт.

5

B17576

GASKET MAKER FLUID

SEALANT - gasket, RTV No. 595, clear, 300 ml tube, oil pan to housing, not shown, can be used in place of R29956 gasket

1шт.

6

R29902

PAN

PAN - oil, power shuttle, no longer available, order N13577 oil pan, 221-841 drain lug and (7) 113-221 bolts, see Ref. 15-17

1шт.

7

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

7шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch, if used

7шт.

D73701

PLUG

PLUG ASSEMBLY - drain, used with R29902 oil pan, Ref. 6, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain plug, order plug assembly

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain, order plug assembly

1шт.

11

D66455

FILTER SCREEN

SCREEN - sump, power shuttle

1шт.

D102905

TRANSMISSION

KIT - power shuttle, service replacement, includes D140405 power shuttle and installation instructions

1шт.

DR140175

REMAN-TRANSMISSION

Remanufactured Power Shuttle

1шт.

DC140175

CORE-TRANSMISSION

Return Part Number

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

12

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

PLUG - hex socket headless, 1/8 inch PT, 2-B thread

2шт.

13

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket headless, 3/8 inch PT, if used

1шт.

13a

76349

PLUG,9/16" - 18 ORB

PLUG, , if used, Incl. Ref. 13B Hex Hd, 9/16"-18 ORB

1шт.

14

D50062

BREATHER

BREATHER - power shuttle

1шт.

15

N13577

PAN

PAN - oil, power shuttle

1шт.

16

221-841

PLUG

PLUG - hex socket, 1/4 inch PT

1шт.

17

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

7шт.

13b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
