Запчасти Case 584E (6-04) - POWER SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

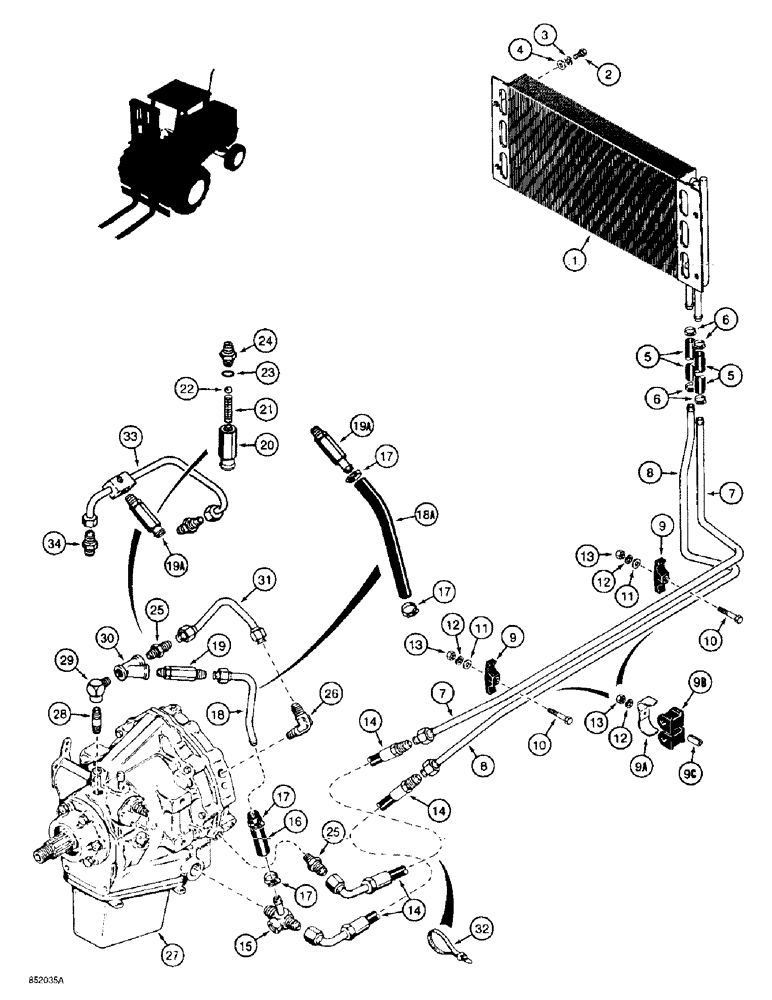

Схема запчастей Case 584E - (6-04) - POWER SHUTTLE COOLING SYSTEM (06) - POWER TRAIN
8
6
12
30
22
9c
28
18a
14
11
4
17
14
18
9
13
12
8
29
13
7
17
11
7
26
1
5
25
31
34
13
2
11
19
14
17
3
6
17
10
25
5
19a
9b
15
27
33
20
10
23
16
32
9a
19a
24
21
9

Артикул

Название

Примечание

Количество

1

A172814

COOLER, OIL

COOLER - oil, power shuttle

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

5

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Cut from S118388 Bulk Hose, Cut from S118388X Bulk Hose, See Below 12.7 mm ID x 101.60 mm, SAE 100R3, Serial Range: -JJG251722

2шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

4шт.

7

D132454

TUBE ASSY.

TUBE - cooler, upper, see Ref. 14A hose, Serial Range: -JJG251722

1шт.

8

D147674

TUBE ASSY.

TUBE - cooler, lower, see Ref. 14B hose, Serial Range: -JJG251722

1шт.

9

D120679

CLAMP,Tube, 1/2"

- plastic, if used

2шт.

9a

D68646

CLAMP

- steel, if used

2шт.

9b

D67296

GROMMET

INSULATOR - rubber, tube, if used

2шт.

9c

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- if used

2шт.

9d

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double, used to retain hoses 14A and 14B, not shown, Start Serial: JJG251722

2шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

D69051

HOSE

- 457 mm (18 inch) long, power shuttle to tubes, Serial Range: -JJG251722

2шт.

14a

301317A1

HOSE ASSY.

HOSE - 1460 mm (57-1/2 inch) long, straight connector at shuttle to coller, used with Ref. 9D, not shown, Start Serial: JJG251722

1шт.

14b

301318A1

HOSE ASSY.

HOSE - 1485 mm (58-1/2 inch) long, special tee at shuttle to cooler, used with Ref. 9D, not shown, Start Serial: JJG251722

1шт.

15

D68972

CONNECTOR, ELEC

FITTING - 4-way

1шт.

16

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Cut from S118388 Bulk Hose, Inlet 12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

17

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

18

D68973

HYD TUBE,0.5" OD x 4.84, 2.51" L

TUBE - relief valve return, if used

1шт.

18a

D150492

HOSE

- 270 mm (10-5/8 inch) long, relief valve return, if used, cut from bulk hose S118388X below

1шт.

19

D48540

VALVE POPPET

VALVE ASSEMBLY - relief power shuttle, threaded both ends, includes Ref. 20 - 24, if used

1шт.

19a

D133321

VALVE POPPET

VALVE ASSEMBLY - relief, power shuttle, with stem fitting at one end, includes Ref. 20 - 24, if used

1шт.

D133321 relief valve (see Ref. 19A above) and D135703 tube (see Ref. 33 and 34 below) are included in D135731, D140175, and D140492 power shuttle assemblies. See Figure 6-10 for power shuttle assemblies and descriptions.

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

S73472

SPRING

- relief valve

1шт.

22

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, grade 24

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

24

S73469

SEAT, VALVE

SEAT - spring

1шт.

S118388X

LARGE HOSE,12.7mm ID x 6350mm L, SAE 100R3

HOSE - bulk, 13 (1/2) ID x 4267 mm (168 inch) long, sold by the foot

1шт.

25

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degrees, 3/4-16 flare x 3/8 inch PT, if used

1шт.

27

REF

INSTRUCTION

SHUTTLE ASSEMBLY - power, for correct asssembly and components see Figure 6-10 through 6-18

1шт.

28

509962

HYD CONNECTOR

NIPPLE - straight, male, if used

1шт.

29

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

- street, 90 degree, 3/8 inch PT x female PT, if used

1шт.

30

221-823

FITTING

- Y-branch, 3/8 inch PT, three-way, if used

1шт.

31

D125845

TUBE ASSY.

TUBE - power shuttle inlet, if used

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

D135703

PIPE ASSY.

TUBE - power shuttle, Ref. 19A through 24, 33 and 34 are included in D135731 power shuttle assembly and may replace Ref. 25, 26, and 2 through 32 above, Includes: Ref. 33 and 34

1шт.

D133321 relief valve (see Ref. 19A above) and D135703 tube (see Ref. 33 and 34 below) are included in D135731, D140175, and D140492 power shuttle assemblies. See Figure 6-10 for power shuttle assemblies and descriptions.

1шт.

33

NSS

NOT SOLD SEPARAT

TUBE - power shuttle, order tube assembly

1шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR - with sleeve and nut, order tube assembly

2шт.
