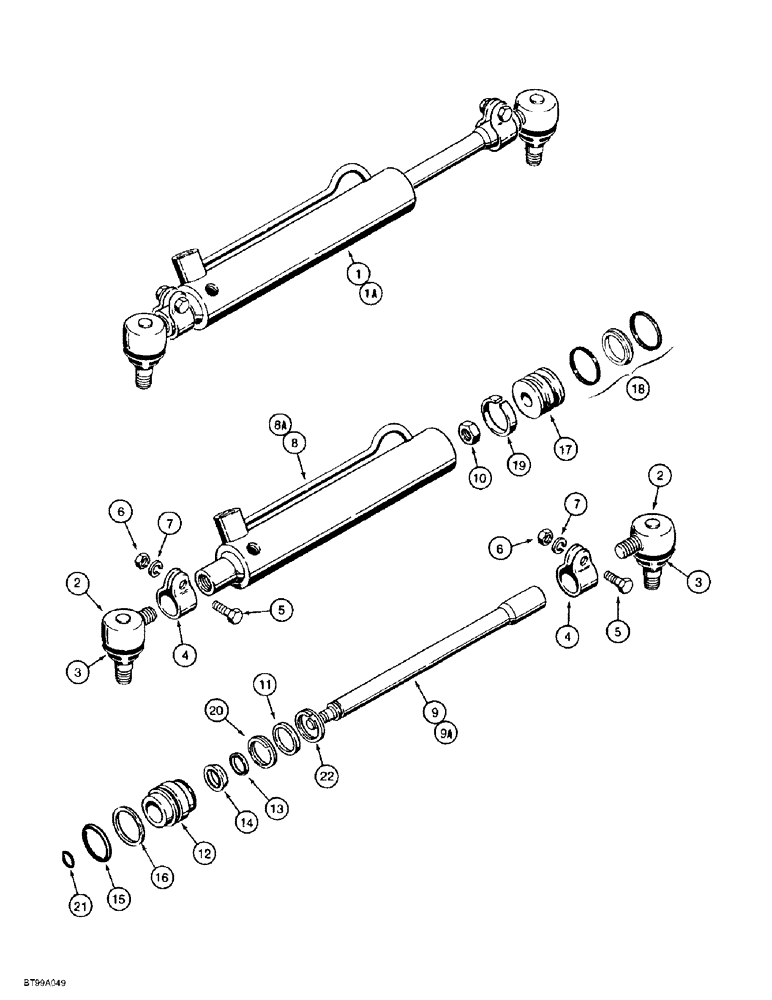

Запчасти Case 584E (5-13A) - STEERING CYLINDERS (05) - STEERING

1

D147753

CYLINDER

ASSEMBLY - steering, used on all two wheel drive models & four wheel drive models with D124605 axle, see Figure 6-32, no longer available, order 234447A1, Includes: Ref. 2 - 22 and kit

2шт.

1

234447A1R

REMAN-HYD CYLINDER

Reman for New P/N D147753

2шт.

1

234447A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

234447A1

CYLINDER,19.05mm Rod, 165.1mm Stroke

ASSEMBLY - steering, used on all two wheel drive models & four wheel drive models with D124605 axle, see Figure 6-32, Includes: Ref. 2 - 22 and kit

2шт.

1

234447A1R

REMAN-HYD CYLINDER

584E, 585E, 586E

2шт.

1

234447A1C

CORE-HYD CYLINDER

Return Number

2шт.

1a

D147756

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, used on all four wheel drive models with D134010 axle, see Figure 6-32, no longer available, order 234449A1, Includes: Ref. 2 - 22 and kit

2шт.

234449A1R

REMAN-HYD CYLINDER

584E, 585E, 586E, All (5/90-), Reman For New P/N D147756

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

1a

234449A1

STEERING CYLINDER,19.05mm Rod, 187.45mm Stroke

CYLINDER ASSEMBLY - steering, used on all four wheel drive models with D134010 axle, see Figure 6-32, Includes: Ref. 2 - 22 and kit

2шт.

234449A1R

REMAN-HYD CYLINDER

584E, 585E, 586E, All (5/90-)

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

A40962

BALL JOINT

JOINT - ball, male thread, Includes: Ref. 3

2шт.

3

A41424

SEAL

BOOT - dust cover

1шт.

A27080

CLAMP

ASSEMBLY - tie rod, tube, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

CLAMP - end

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

D148568

TUBE ASSY.

TUBE - cylinder, used with D147753 cylinder

1шт.

8

301361A1

HYD TUBE,1.504" ID, 1.75" OD, 10.62" Length

TUBE - cylinder, used with 234447A1 cylinder

1шт.

8a

N7467

TUBE ASSY.,1.504" ID x 1.75" OD

TUBE - cylinder, used with D147756 and 234449A1 cylinder

1шт.

9

N8890

PISTON ROD

ROD - piston, used with D147753 cylinder, no longer availabe, order 234446A1 rod

1шт.

9

234446A1

PISTON ROD

ROD - piston, used with D147753 and 234447A1 cylinder

1шт.

9a

N7466

ROD

- piston, used with D147756 cylinder, no longer available, order 234448A1 rod

1шт.

9a

234448A1

ROD

- piston, used with D147756 and 234449A1 cylinder

1шт.

10

131-1145

JAM NUT,5/8" - 18

NUT - hexk jam, self-locking 9/16 inch NF

1шт.

11

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- gland

1шт.

D147757

HEAD

GLAND ASSEMBLY - cylinder, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder, Includes Bushing

1шт.

13

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N D148100

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of seal kit P/N D148100

1шт.

15

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

Part of seal kit P/N D148100

1шт.

16

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING - backup, gland O-ring

1шт.

Part of seal kit P/N D148100

1шт.

D147754

PISTON

- cylinder, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N D148100

1шт.

19

D83186

SEAL

RING - wear, piston

1шт.

Part of seal kit P/N D148100

1шт.

20

102-23150

SNAP RING,#150, 1.591", Int, Spiral

RING - internal spiral retaining, No. 150, gland

1шт.

Part of seal kit P/N D148100

1шт.

21

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

to piston -113, Cl 7, .549" ID x .103" Thk

1шт.

Part of seal kit P/N D148100

1шт.

22

102-12125

SNAP RING,#125, 1.188", Ext Spiral

RING - external spiral retaining, No. 125, outer

1шт.

D148100

GASKET KIT

KIT - seal, Includes: Ref. 13, 14, 15, 16, 18, 19, 20, and 21

1шт.
