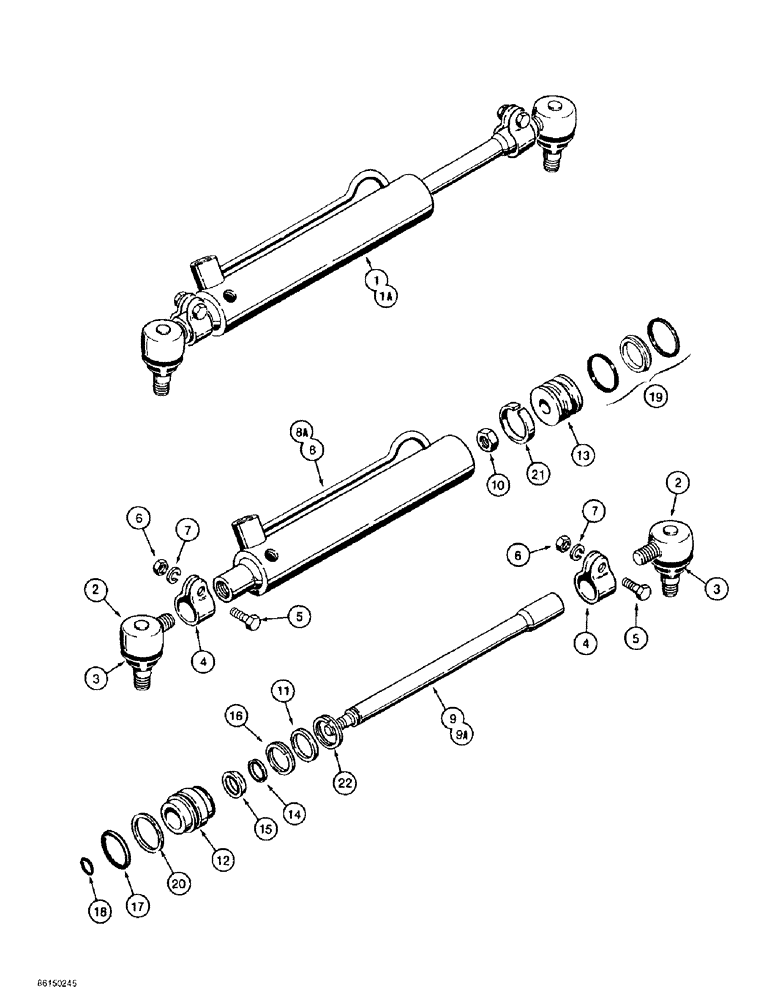

Запчасти Case 584E (5-12) - STEERING CYLINDERS (05) - STEERING

1

D128454

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, used on all two wheel drive models and four wheel drive models with D124605 axle, see Figure 6-32 for axle identification, no longer required, order D147753 for service, see Figure 5-13A, Includes: Ref. 2 - 22

2шт.

1a

D92099

CYLINDER

ASSEMBLY - steering, used on four wheel drive models with D134010 axle, see Figure 6-32 for axle identification, no longer required, order 234449A1 for service, see Figure 5-13A, Includes: Ref. 2 - 22

2шт.

234449A1R

REMAN-HYD CYLINDER

584E, 585E, 586E, All (5/90-), Reman For New P/N D92099

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

A40962

BALL JOINT

JOINT - ball, male thread, Includes: Ref. 3

2шт.

3

A41424

SEAL

BOOT - dust cover

1шт.

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

CLAMP - end

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

D83188

CYLINDER

TUBE - cylinder, used with D128454 cylinder

1шт.

8a

N7467

TUBE ASSY.,1.504" ID x 1.75" OD

TUBE - cylinder, used with D92099 cylinder

1шт.

9

N8890

PISTON ROD

ROD - piston, used with D128454 cylinder

1шт.

9a

N7466

ROD

- piston, used with D92099 cylinder

1шт.

10

131-1145

JAM NUT,5/8" - 18

NUT - hex, jam, self-locking, 9/16 inch NF

1шт.

11

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- gland

1шт.

12

D83189

GLAND

- cylinder, includes bushing

1шт.

13

D83190

PISTON

- cylinder

1шт.

D83184

GASKET KIT

KIT - cylinder repair, no longer available, order D148100, see Figure 5-13A, Includes: Ref. 14 - 21

1шт.

14

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - piston rod

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

16

102-23150

SNAP RING,#150, 1.591", Int, Spiral

RING - internal spiral retaining, No. 150, gland

1шт.

17

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

18

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

to piston -113, Cl 7, .549" ID x .103" Thk

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

20

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING - backup, gland O-ring

1шт.

21

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

22

102-12125

SNAP RING,#125, 1.188", Ext Spiral

RING - external spiral retaining, No. 125, outer

1шт.
