Запчасти Case 584E (5-11C) - STEERING CONTROL VALVE (05) - STEERING

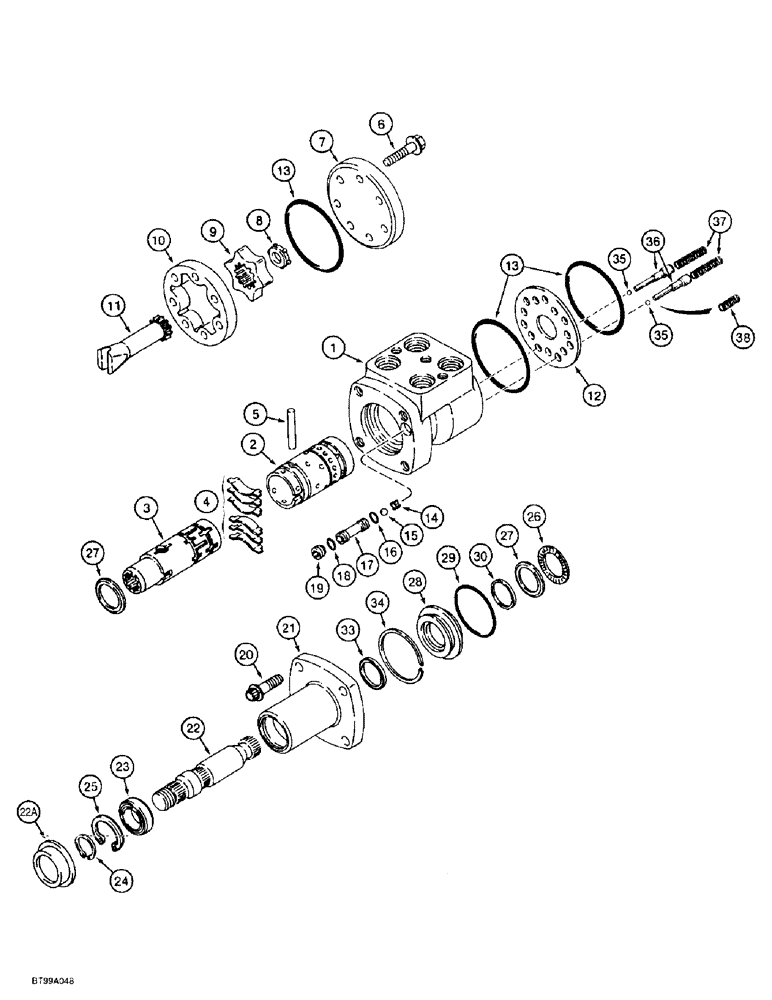

Схема запчастей Case 584E - (5-11C) - STEERING CONTROL VALVE (05) - STEERING
27
29
38
28
13
34
1
20
14
12
22a
4
9
11
36
26
2
24
8
27
5
25
23
7
16
15
3
10
35
30
22
21
37
18
13
19
6
35
17
33

Артикул

Название

Примечание

Количество

136001A2

PUMP

VALVE ASSEMBLY - steering control, Includes: Ref. 1 - 38, Start Serial: JJG0213159

1шт.

84196600R

REMAN-STEERING VALVE

584E, 585E, 586E, All Case Construction King Forklift, Valve Assembly - Steering control, Start Serial: JJG0213159 (5/90-), Reman for New P/N 136001A2

1шт.

84196600C

CORE-STEERING VALVE

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

N14250

KIT

- centering spring, Includes: Ref. 4 and 4A

1шт.

4

L30889

SPRING

- spool

6шт.

4a

NSS

NOT SOLD SEPARAT

SPACER - spring, if used, not shown

2шт.

5

L30888

PIN

- roll

1шт.

6

136587A1

SCREW,Torx Hd, 5/16" - 24 x 1 5/8"

BOLT - 12 point flange

7шт.

7

135867A1

CAP

- end, without O-ring groove

1шт.

8

N7162

SPACER

- small

1шт.

N14651

GEAR-SET

GEROTOR - set, control valve, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

ROTOR - control valve

1шт.

10

NSS

NOT SOLD SEPARAT

STATOR - control valve

1шт.

11

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, steering control valve

1шт.

12

135869A1

PLATE

- spacer, with O-ring groove

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 2-7/8 ID

3шт.

Part of seal kit P/N 1343658C3

1шт.

14

L35368

RETAINER

- check ball

1шт.

15

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 5/16 ID, inner

1шт.

Part of seal kit P/N 1343658C3

1шт.

17

D82806

VALVE SEAT

SEAT - ball

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3/8 ID, outer

1шт.

Part of seal kit P/N 1343658C3

1шт.

19

D82805

SET SCREW

SCREW - set

1шт.

20

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

BOLT - 12 point flange, 3/8 NC x 1 inch, grade 8

4шт.

21

103847A1

HOUSING

COLUMN - steering shaft

1шт.

22

103849A1

SHAFT

- steering control

1шт.

22a

103848A1

RETAINER

- shaft

1шт.

23

103850A1

BALL BEARING,22.4mm ID x 35.3mm OD x 9.7mm W

- ball

1шт.

24

102-1387

SNAP RING,#87, Ext, Spiral

RING - external spiral retaining, No. 87, bearing, inner

1шт.

25

105-23137

SNAP RING,#137, 1.461", Int, Spiral

RING - internal spiral retaining, No. 137, bearing, outer

1шт.

26

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller, Spool

1шт.

27

D82804

RACE

- thrust, bearing

2шт.

28

N13312

CYLINDER END CAP

BUSHING - spool seal

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 ID

1шт.

Part of seal kit P/N 1343658C3

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - inner

1шт.

Part of seal kit P/N 1343658C3

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - input, 1 ID, spool outer

1шт.

Part of seal kit P/N 1343658C3

1шт.

34

S110169

WASHER

RING - retaining, seal

1шт.

35

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

2шт.

36

136494A1

PLUG

RETAINER - spring, anticavitation

2шт.

37

N14763

SPRING

- anticavitation

2шт.

38

196087A1

SPRING

- ball, anticavitation

2шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Includes: Ref. 13, 16, 18, 29, 30, and 33

1шт.
