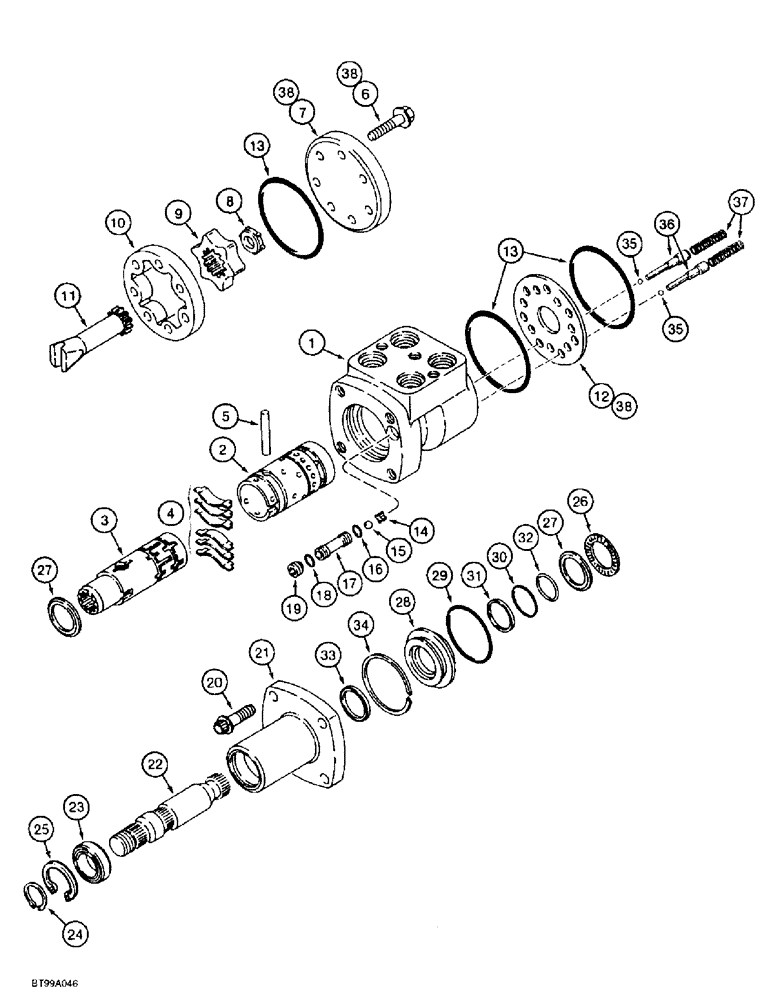

Запчасти Case 584E (5-10) - STEERING CONTROL VALVE (05) - STEERING

D140253

PUMP

VALVE ASSEMBLY - steering control, no longer available, order valve assembly 136001A2, see Figure 5-11C, Includes: Ref. 1 - 38, Serial Range: -JJG0212501

1шт.

84196600R

REMAN-STEERING VALVE

584E, 585E, 586E, All CASE CONSTRUCTION KING FORKLIFT, VALVE ASSEMBLY - steering control, Serial Range: -JJG0212501 (5/90-), Reman for New PN D140253

1шт.

84196600C

CORE-STEERING VALVE

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

N14250

KIT

- centering spring, Includes: Ref. 4 and 4A

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - centering

6шт.

4a

NSS

NOT SOLD SEPARAT

SPACER - spring, if used, not shown

2шт.

5

L30888

PIN

- roll

1шт.

6

166-527

12 PT SCREW,Flg, 5/16" - 24 x 1 1/2", Gr 8

BOLT - 12 point flange, 5/16 NF x 1-1/2 inch, grade 8

7шт.

7

D82809

COVER

CAP - end, no longer available, order 136493A1, Ref. 38

1шт.

8

N7162

SPACER

- small

1шт.

N14651

GEAR-SET

GEROTOR - set, control valve, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

ROTOR - control valve

1шт.

10

NSS

NOT SOLD SEPARAT

STATOR - control valve

1шт.

11

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, steering control valve

1шт.

12

S113037

PLATE

- spacer, no longer available, order 136493A1, Ref. 38

1шт.

13

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk (Replaces O-Ring N6392)

3шт.

14

L35368

RETAINER

- check ball

1шт.

15

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

16

L30893

O-RING,1/16" Thk x 5/16" ID

- inner, 7/16 x 5/16 x 1/16 inch, 7/16 x 5/16 x 1/16 inch

1шт.

17

D82806

VALVE SEAT

SEAT - ball

1шт.

18

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Outer

1шт.

19

D82805

SET SCREW

SCREW - set, hex socket

1шт.

20

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

BOLT - 12 point flange, 3/8 NC x 1 inch, grade 8

4шт.

21

N13315

HOUSING

COLUMN - steering shaft, no longer available, order 103847A1, see Figure 5-11A

1шт.

22

N13316

SHAFT

- steering control, no longer available

1шт.

Order new shaft 103849A1, housing 103847A1, retainer 103848A1 and bearing 103850A1 shown on Figure 5-11A and 5-11C.

1шт.

23

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- ball

1шт.

24

102-1387

SNAP RING,#87, Ext, Spiral

RING - external spiral retaining, No. 87, bearing, inner (Replaces ring F53335)

1шт.

25

105-23137

SNAP RING,#137, 1.461", Int, Spiral

RING - internal spiral retaining, No. 137, bearing, outer (Replaces ring L30882)

1шт.

26

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller, Spool

1шт.

27

D82804

RACE

- thrust, bearing

2шт.

28

N13312

CYLINDER END CAP

BUSHING - spool seal

1шт.

29

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

30

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon, inner

1шт.

31

50-2703T1

BACK-UP RING

RING - backup

1шт.

32

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

(Replaces O-ring L15402) -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

33

18-137

OIL SEAL

- input (Replaces seal A28211)

1шт.

34

S110169

WASHER

RING - retaining, seal

1шт.

35

NSS

NOT SOLD SEPARAT

BALL - anti-cavitation

2шт.

36

NSS

NOT SOLD SEPARAT

RETAINER - spring, anti-cavitation

2шт.

37

NSS

NOT SOLD SEPARAT

SPRING - anti-cavitation

2шт.

38

136493A1

COVER

KIT - repair, end cap and spacer plate

1шт.
