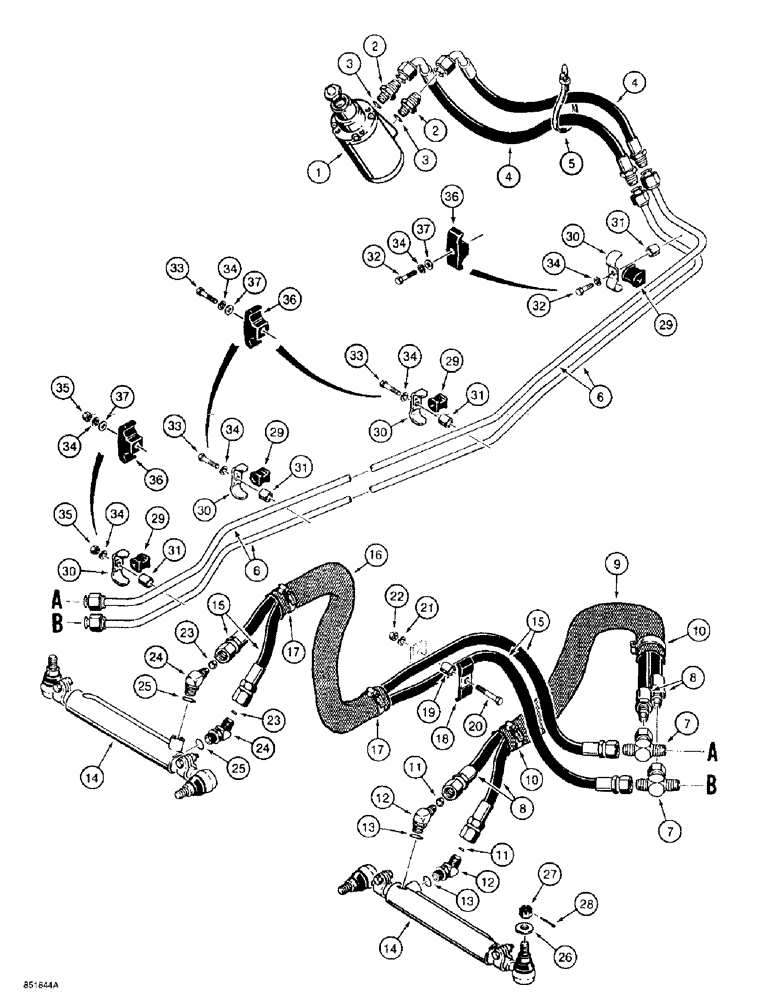

Запчасти Case 584E (5-08) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS, FOUR WHEEL DRIVE MODELS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, see Figure 5-10 - 5-11C, mounting parts on Figure 5-2

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D71785

HOSE

- 965 mm (38 inch) long, left-hand and right-hand control valve port

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

D133072

TUBE ASSY.

TUBE - control, Serial Range: valve-cylinders

2шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare, tube to hose

2шт.

8

D61447

HOSE ASSY.

HOSE - 559 mm (22 inch) long, tee to right-hand steering cylinder

2шт.

9

D122671

SLEEVE

- hose

1шт.

10

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

11

D76229

RESTRICTOR

- oil flow

2шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 13

2шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, see parts lists Figure 5-12 and 5-13A

2шт.

15

D125415

HOSE ASSY.

HOSE - 1499 mm (59 inch) long, tee to left-hand cylinder

2шт.

16

D122671

SLEEVE

- hose

1шт.

17

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

18

D40236

CLAMP

- hose

1шт.

19

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- hose clamp (Replaces spacer D76209)

1шт.

20

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

21

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

D76229

RESTRICTOR

- oil flow

2шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 25

2шт.

26

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, used on models with D124605 axle, see Figure 6-32 for axle identification

1шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened, used on models with D134010 and D149793 axle, see Figure 6-32 for axle identification

2шт.

27

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.

28

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

29

D67296

GROMMET

INSULATOR - rubber, tube, if used

8шт.

30

D68646

CLAMP

- double, if used

4шт.

31

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp, if used

4шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

34

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

D120679

CLAMP,Tube, 1/2"

- plastic, tube, if used

4шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

4шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
