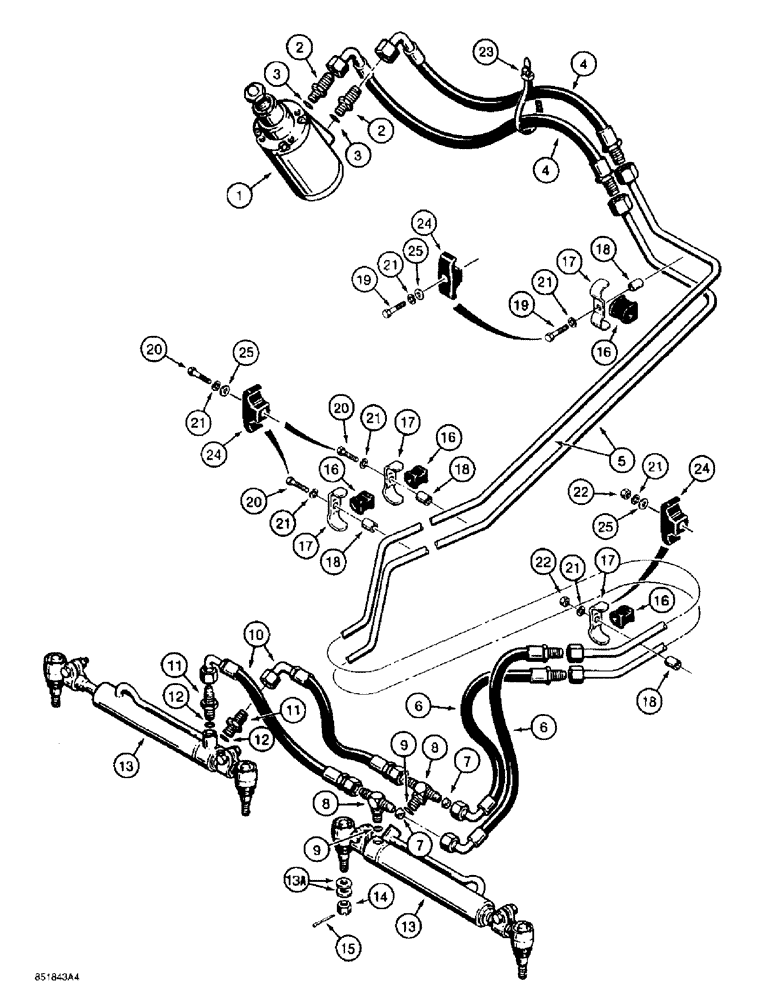

Запчасти Case 584E (5-06) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS, TWO WHEEL DRIVE MODELS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, see Figure 5-10 - 5-11C, mounting parts on Figure 5-2

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D71785

HOSE

- 965 mm (38 inch) long, left-hand and right-hand control valve ports

2шт.

5

D133072

TUBE ASSY.

TUBE - control, Serial Range: valve-cylinders

2шт.

6

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- 508 mm (20 inch) long, to steering cylinders

2шт.

7

D76229

RESTRICTOR

- oil flow

2шт.

8

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare, Includes: Ref. 9

2шт.

10

D126884

HOSE,9.53mm ID x 382mm L, SAE 100R1

- 382 mm (15 inch) long, between cylinders

2шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, male, Incl. Ref. 12

2шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, parts list Figure 5-12 and 5-13A

2шт.

13a

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

1шт.

14

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.

15

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

16

D67296

GROMMET

INSULATOR - rubber, tubes, if used

8шт.

17

D68646

CLAMP

- double, if used

4шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp, if used

4шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

21

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

D120679

CLAMP,Tube, 1/2"

- tube, if used

4шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
