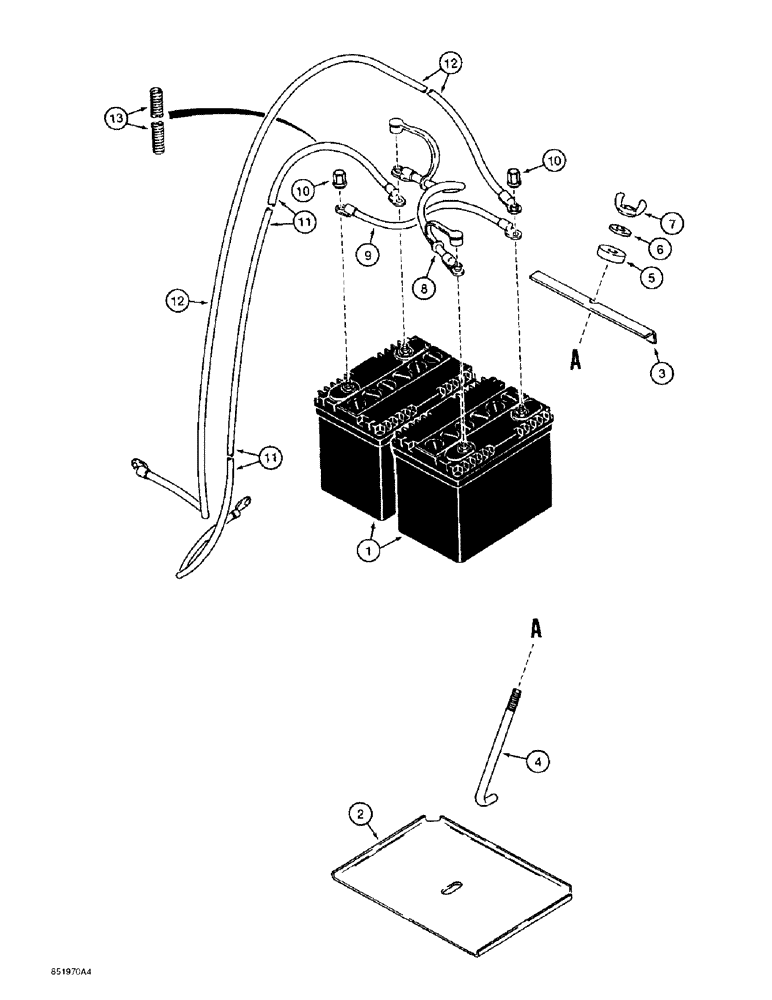

Запчасти Case 584E (4-38) - ELECTRICAL COLD START SYSTEM, DUAL BATTERIES (04) - ELECTRICAL SYSTEMS

1

D127414

DRY BATTERY

- 12 volt, with threaded stud terminal, for service replacement order BMF28S

2шт.

2

D135495

TRAY

PLATE - battery tray

1шт.

3

D135493

ANGLE

BRACKET - battery hold down

1шт.

4

D135494

BOLT

- J-type, 3/8 NC x 11-7/32 inch, battery retaining

1шт.

5

A142098

GROMMET

- (Replaces grommet G46867)

1шт.

6

195-137

WASHER,13/32" x 1 1/8" x .180"

- flat, 13/32 x 1-1/8 x 3/16 inch, special

1шт.

7

129-410

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC, plated

1шт.

8

D126410

CABLE

- battery, jumper, positive to positive terminals

1шт.

9

D126412

CABLE

- battery, jumper, negative to negative terminals

1шт.

10

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

- hex, special, 3/8 inch NC, battery terminal

4шт.

11

D126411

CABLE

- battery, Serial Range: positive,-starter

1шт.

12

D135496

CABLE

- battery, Serial Range: negative,-ground

1шт.

13

D88060

LOOM

SLEEVE - 1422 mm (56 inch) long, cut from D99461 bulk sleeve, see below

1шт.

D99461

LOOM

CONDUIT - bulk, 2032 mm (80 inch) long

1шт.
