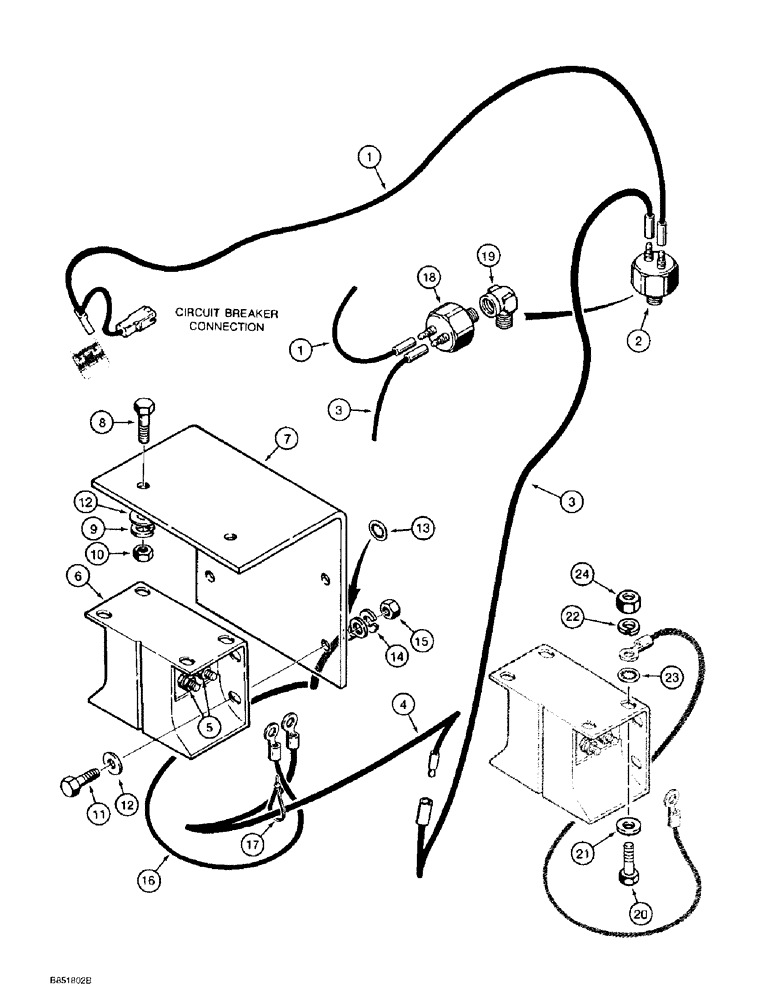

Запчасти Case 584E (4-36) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D134161

HARNESS

- alarm, circuit, Serial Range: breaker-switch

1шт.

2

D127319

SWITCH

- pressure, backup alarm, no longer used, order D139904 switch and 217-1014 elbow, Ref. 18 and 19

1шт.

3

D134160

HARNESS

- alarm, switch to backup alarm

1шт.

4

D77263

ELECTRICAL WIRE

WIRE -, Serial Range: switch-alarm

1шт.

5

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

6

D121972

ALARM

- backup, electric

1шт.

7

D75815

BRACKET

- backup alarm, if used

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, used with Ref. 7 bracket only

4шт.

12

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Used with Ref. 7 bracket only

6шт.

13

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, used with Ref. 7 bracket only

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Used with Ref. 7 bracket only 5/16"

4шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Used with Ref. 7 bracket only

4шт.

16

D70125

ELECTRICAL WIRE

WIRE - ground

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

D139904

SWITCH

- pressure, backup alarm

1шт.

19

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street, at power shuttle 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, if used

4шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

4шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

4шт.

23

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, if used

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
