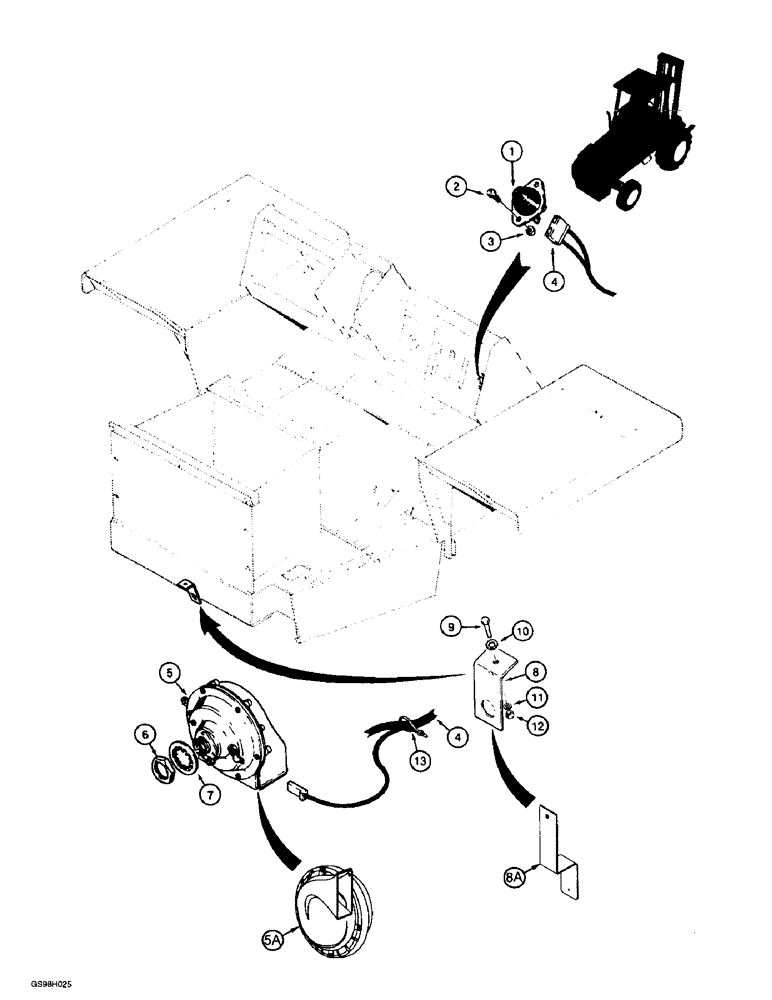

Запчасти Case 584E (4-34) - HORN (04) - ELECTRICAL SYSTEMS

1

D67872

SWITCH

- push button

1шт.

2

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

3

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

4

REF

INSTRUCTION

HARNESS - main wiring, see Figure 4-16 or 4-18 for correct harness

1шт.

5

D123205

HORN

- "A" Note, 12 volt, no longer available, order horn 254130A1, Ref. 5A, bracket 253607A1, Ref. 8A, washer 493-41026, Ref. 14 and nut 825-1406, Ref. 15

1шт.

5a

254130A1

HORN

- "A" note, 12 volt

1шт.

6

L30866

LOCK NUT

- hex, special, horn mounting

1шт.

7

493-21091

LOCK WASHER,Int Tooth, 7/8"

WASHER - internal tooth lock, 7/8 inch

1шт.

8

D70129

MOUNTING PARTS

BRACKET - mounting

1шт.

8a

253607A1

SUPPORT

BRACKET - mounting, used with horn 254130A1

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch, not shown

1шт.

15

825-1406

NUT,M6, Cl 8

Not shown M6, Cl 8

1шт.
