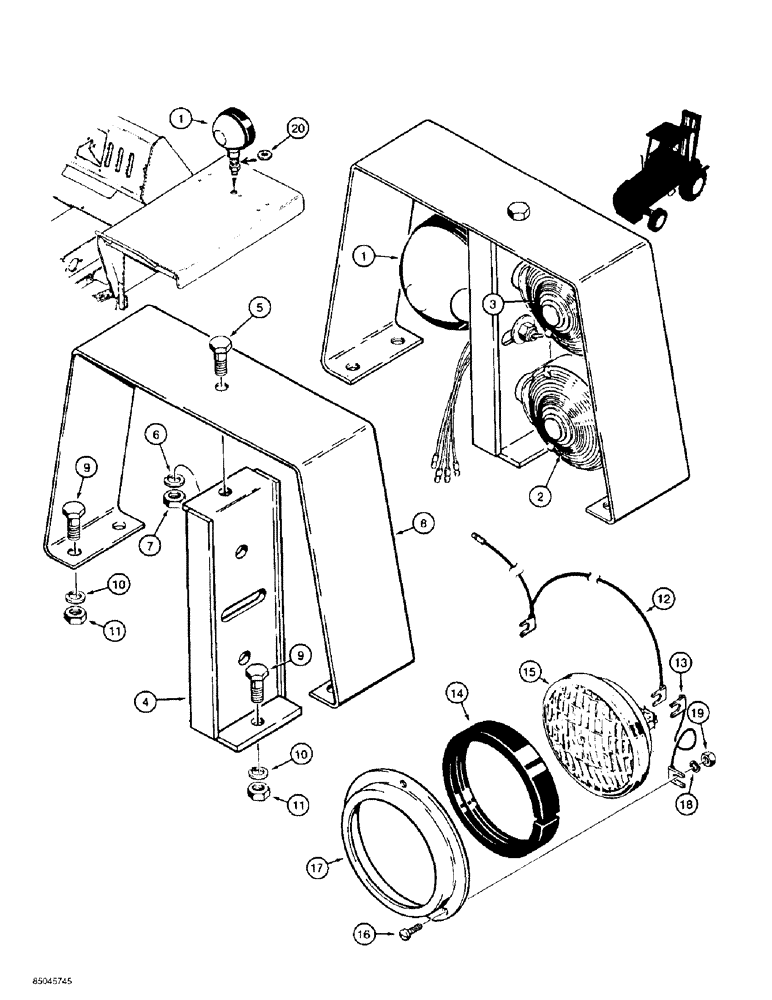

Запчасти Case 584E (4-28) - FRONT AND REAR LAMPS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

LAMP ASSEMBLY - front, parts list Figure 4-32

2шт.

2

D49733

LAMP

ASSEMBLY - stop and tail, if used, parts list Figure 4-30

2шт.

3

D122121

LAMP,12V

ASSEMBLY - turn signal and flasher, if used, parts list Figure 4-30

2шт.

4

D58713

LARGE PLATE

BRACKET - lamp mounting, if used

2шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

D58721

BRACKET

- lamp mounting, if used

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

10шт.

10

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

11

425-106

NUT,3/8"-16, Cl 5

10шт.

12

D56401

ELECTRICAL WIRE

WIRE - rear lamps

1шт.

13

A11768

ELECTRICAL WIRE

WIRE - ground, rear lamps

2шт.

14

D93241

RETAINER

- rubber, rear lamp

2шт.

15

A47179

BULB

LAMP - sealed beam, No. 4406 (Replaces lamp A42294)

2шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

6шт.

17

D57288

RING

RETAINER - metal, lamp retainer

2шт.

18

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

19

225-14110

NUT,#10-24

6шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.
