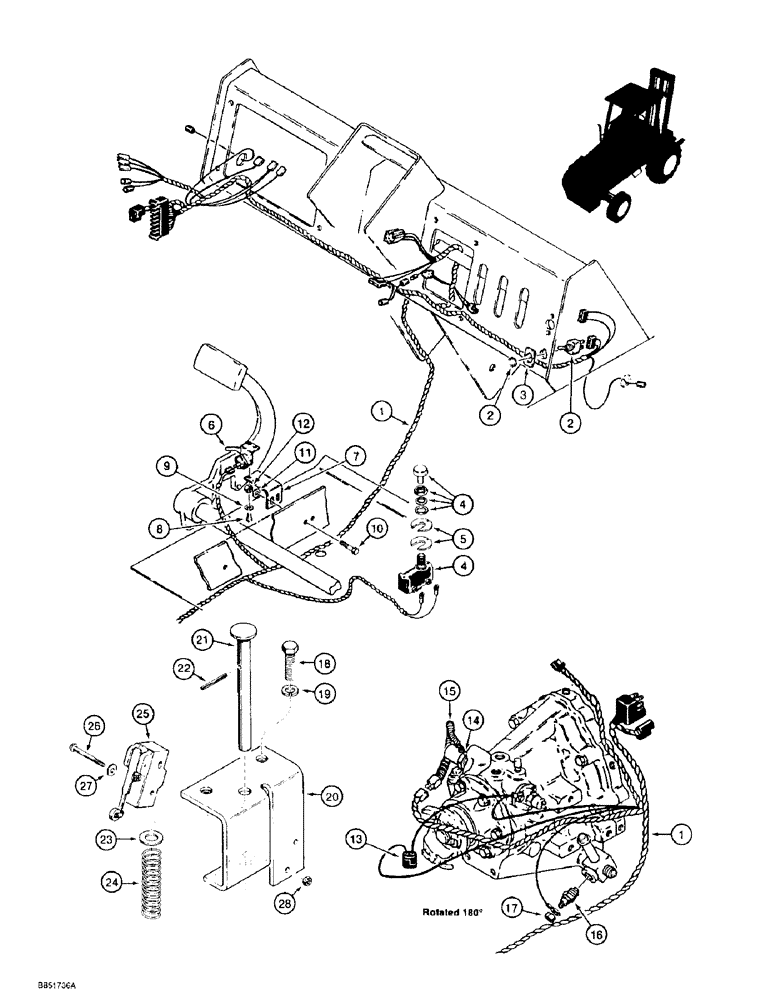

Запчасти Case 584E (4-26) - POWER SHUTTLE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, includes clutch cutout circuit, see Figure 4-16 and 4-18

1шт.

2

D67251

SWITCH

- toggle, clutch cutout, dash mounted

1шт.

3

D73929

PLATE

- switch

1шт.

4

D135612

SWITCH

- no longer available, order D103504 kit for service

1шт.

5

D126116

BRACKET

WASHER - special

2шт.

6

A33977

SWITCH

- clutch cutout, brake pedal

1шт.

7

D77685

BRACKET

- brake switch

1шт.

8

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

2шт.

9

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

12

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, with external tooth lock, 1/4 inch

2шт.

13

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, switch protecting

1шт.

14

D134742

SOLENOID

- clutch cutout, used with D136020 or D135731 power shuttle; See Figure 6-12 for solenoid used with D140175, D140405 or D140492 power shuttle.

1шт.

15

D88053

SLEEVE

- 300 mm (11-3/4 inch) long, cut from D128402 bulk sleeve, see below

1шт.

16

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - shuttle transmission temperature

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

D103504

SWITCH

KIT - switch, clutch cutout, Includes: Ref. 18 - 28

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

D142143

SWITCH

ASSEMBLY - with bracket, Includes: Ref. 20 - 28

1шт.

20

D142142

BRACKET

- mounting

1шт.

21

D141581

ROD

- switch activating

1шт.

22

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, 1/8" x 1", Slotted

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

24

T34088

SPRING

- rod return, switch rod

1шт.

25

D137363

SWITCH

- clutch cutout

1шт.

26

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch, if used

2шт.

26

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch, if used

2шт.

27

495-31016

WASHER,#6

2шт.

28

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

D128402

PLASTIC-RUBBER TUBE

SLEEVE - wire guard, 380 mm (15 inch) long

1шт.
