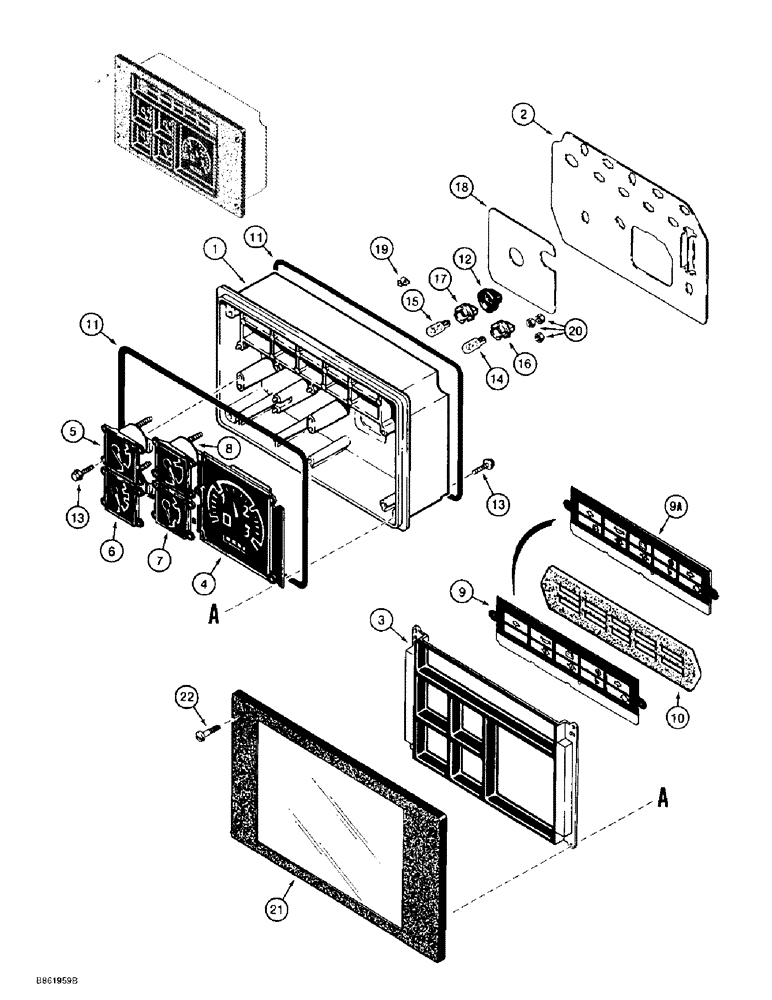

Запчасти Case 584E (4-24) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

A187965

CLUSTER

ASSEMBLY - instrument, tractor, does not include transmission filter warning lamp (Replaces cluster assembly D136323), Includes: Ref. 1 - 21

1шт.

A187965R

REMAN-INSTR CLUSTER

584E, 585E, 586E

1шт.

A187965C

CORE-CLUSTER, INSTR

Return Number

1шт.

D144970

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, tractor, includes transmission filter warning lamp, no longer available, order cluster assembly A187965 above, Includes: Ref. 1 - 21

1шт.

1

N13545

INSTRUMENT PANEL

- instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

BOARD - circuit, printed, instrument cluster

1шт.

3

N14227

COVER

- instrument cluster (Replaces cover N14227)

1шт.

4

N13543

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

5

N13542

GAUGE

- water temperature

1шт.

6

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

7

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

8

N13546

GAUGE

- oil temperature (Replaces gauge N14226)

1шт.

9

N13538

BAND

LENS - identification, warning lamps, used with D136323 cluster assembly only

1шт.

9

D146335

BAND

LENS - identification, warning lamps, used with D144970 and A187965 cluster assemblies

1шт.

10

D71342

GASKET,3.05mm Thk

- lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

12

D71344

COVER

BOOT - rubber

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

- special, no longer used

12шт.

14

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, warning

6шт.

15

W10478

LAMP

BULB - lamp, No. 194, illumination

3шт.

16

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

6шт.

17

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

18

H422758

GASKET,1.52mm Thk

- housing

1шт.

19

H422766

CLIP, SPRING

CLIP - gauges

11шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

- instrument cluster

1шт.

22

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

22

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.
