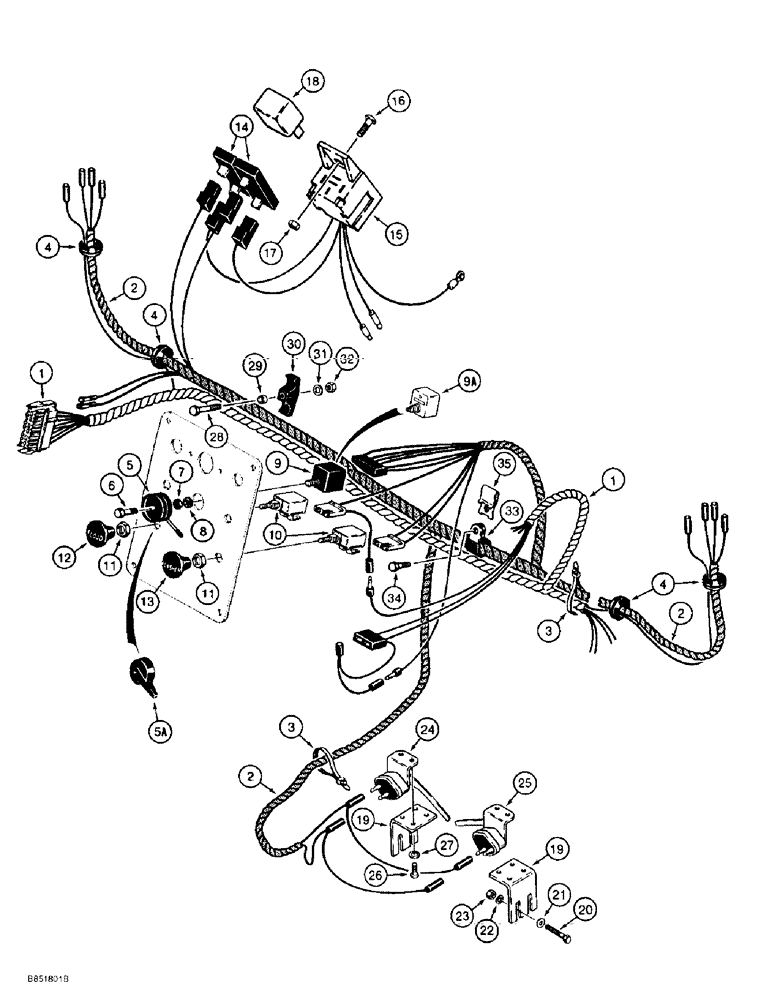

Запчасти Case 584E (4-20) - ELECTRICAL CIRCUIT, FLASHER HARNESS AND CONTROLS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, see Figure 4-16 and 4-18 for main harness and related parts

1шт.

2

D148503

HARNESS

- lamp, front lamps with stop and flasher lamps (Replaces harness D137234)

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

4шт.

5

A141736

KNOB

- turn signal switch and flasher, no longer available, order Ref. 5A knob for service

1шт.

5a

A177140

KNOB

- turn signal switch and flasher

1шт.

6

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

- pan, with external lock, No. 5 NC x 1/2 inch

1шт.

7

D91352

JAM NUT

- special

1шт.

8

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

1шт.

9

D134896

FLASHER UNIT

SWITCH - turn signal and flasher, no longer available, order Ref. 9A switch for service

1шт.

9a

1987422C1

SWITCH

- turn signal and flasher, (Replaces switch A77184)

1шт.

10

D74330

SWITCH

ASSEMBLY - flood lamp amd flasher lamp, no longer used, order switch D147166, Ref. 11A, Includes: Ref. 11

2шт.

11

N7557

NUT

- hex, special, 3/8 inch NF, switch retaining

1шт.

11a

D147166

FLASHER UNIT

SWITCH - turn signal and flasher, not shown

2шт.

12

D95783

KNOB

- flood lamp

1шт.

13

D95782

KNOB

- flasher lamp

1шт.

14

D78001

CIRCUIT-BREAKER

BREAKER - circuit, 10 amperes

2шт.

15

D132440

HARNESS

- relay, optional lamps

1шт.

16

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

18

D128310

RELAY

- 30 ampere, optional lamps

1шт.

19

D77905

BRACKET

- brake pedal switch mounting

2шт.

20

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

22

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

23

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

24

A33976

SWITCH

- stop lamp, left-hand

1шт.

25

A33977

SWITCH

- stop lamp, right-hand

1шт.

26

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- machine, pan head slotted, No. 10 NF x 3/8 inch

4шт.

27

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

28

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

29

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 ID x 16 OD x 6 mm long, clamp, (Replaces spacer D95551)

1шт.

30

D124301

CLAMP,3/4" ID

- harness, instrument panel area

1шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

32

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Instrument panel area 1", Insul, 3/8" Bolt

1шт.

34

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

35

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

1шт.
