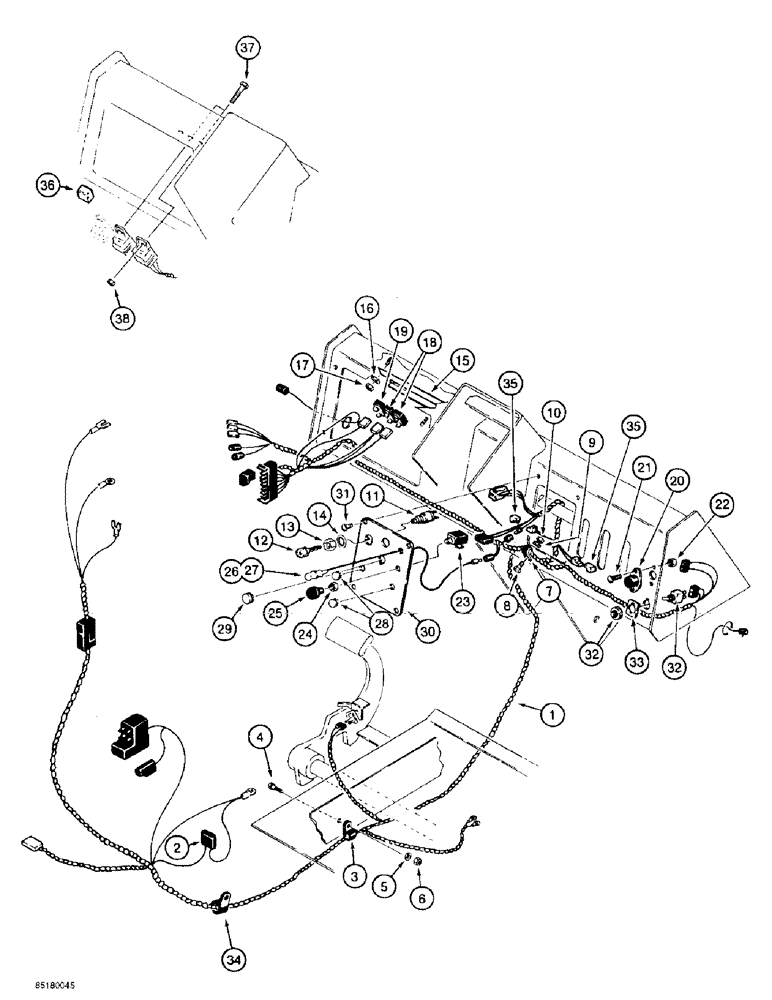

Запчасти Case 584E (4-16) - ELECTRIC CIRCUIT, MAIN HARNESS AND INSTR. PANEL, MODELS W/O FLASHER LAMPS, PRIOR TO P.I.N. 17020582 (04) - ELECTRICAL SYSTEMS

1

D132442

HARNESS

- main, no longer available, order harness D137829, Ref. 1 on Figure 4-18

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Under frame 3/4", Insul, 3/8" Bolt

3шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

6

425-106

NUT,3/8"-16, Cl 5

3шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Instrument panel area 3/4", Insul, 3/8" Bolt

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes A77313 metal keys without padding, Includes: Ref 11 - 13

1шт.

282775A1

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes 1964831C2 padded keys, Includes: Ref. 11 - 13

1шт.

307871A1

CONNECTION,ELECTRIC

SWITCH ASSEMBLY - ignition, includes 307852A1 metal keys without padding, Includes: Ref. 11 - 13; no longer available, order D134737 switch

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

12

A77313

SET OF 2 KEYS

KEY - set of two, metal without padding; used with switch assembly D134737

1шт.

12

1964831C2

IGNITION KEY

KEY - padded, set of two, used with switch assembly 282775A1

1шт.

12

307852A1

SET OF 2 KEYS

KEY - metal without padding. set of two, used with switch assembly 307871A1

1шт.

13

A77314

NUT

- hex, special

1шт.

14

493-21104

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch

1шт.

15

D75355

BRACKET

- circuit breaker mounting

1шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

17

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, with external tooth lock, 1/4 inch

2шт.

18

D78002

CIRCUIT-BREAKER

BREAKER - circuit, 15 amperes

2шт.

19

D78001

CIRCUIT-BREAKER

BREAKER - circuit, 10 amperes

1шт.

20

D67872

SWITCH

- push button

1шт.

21

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

22

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

23

D74330

SWITCH

ASSEMBLY - lamp, Includes: Ref. 24

1шт.

24

N7557

NUT

- hex, special, 3/8 inch NF, switch retaining

1шт.

25

D95781

BUTTON

KNOB - lamp switch

1шт.

L55568

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, no longer available, order kit 185467A1 (Replaces lamp assembly L105210), Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SOCKET ASSEMBLY - lamp

1шт.

27

A22349

BULB

- lamp, No. 9234

1шт.

28

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

2шт.

29

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch, if used

1шт.

30

D131951

COVER

- console control

1шт.

31

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

32

D67251

SWITCH

- toggle, see Figure 4-26 for clutch cutout solenoid, connections and controls

1шт.

33

D73929

PLATE

- switch

1шт.

34

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Use existing hydraulic tube clamp hardware 1/2", Insul, 3/8" Bolt

2шт.

35

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

2шт.

36

D128310

RELAY

- 30 ampere

2шт.

37

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

2шт.

38

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

185467A1

LIGHT

KIT - lamp, instrument panel, includes lamp, socket and instruction sheet

1шт.
