Запчасти Case 584E (4-14) - ELECTRICAL CIRCUIT, ALTERNATOR, ENGING HARNESS AND CONNECTIONS, *HARNESS HAS PLASTIC WIRE CONNECTOR (04) - ELECTRICAL SYSTEMS

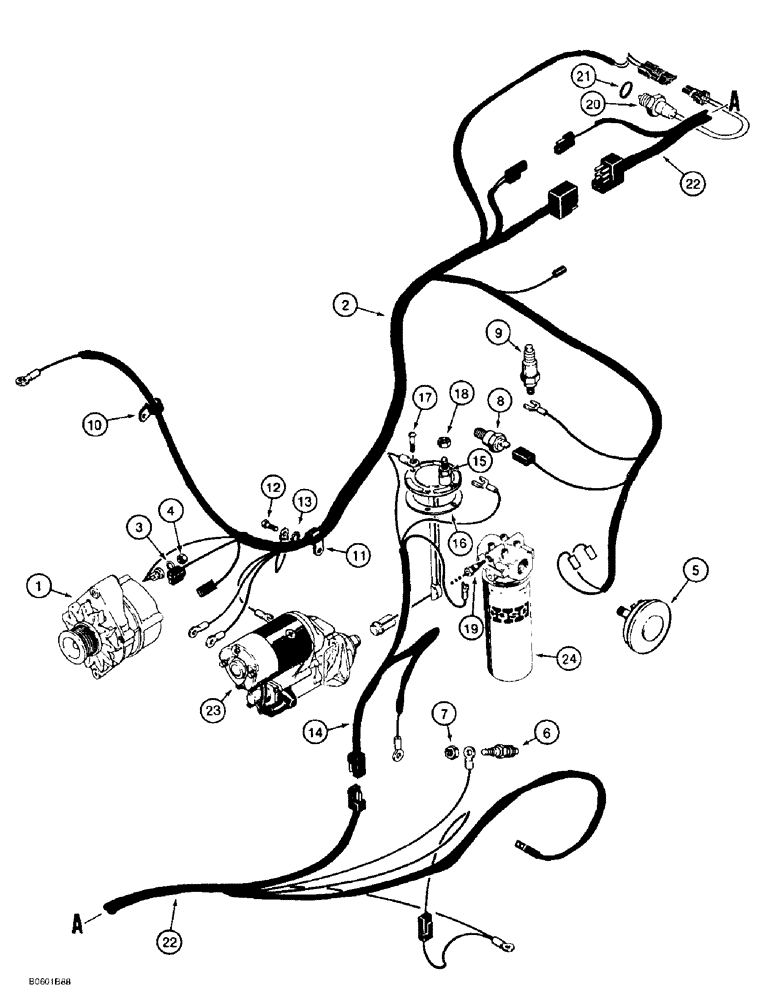

Схема запчастей Case 584E - (4-14) - ELECTRICAL CIRCUIT, ALTERNATOR, ENGING HARNESS AND CONNECTIONS, *HARNESS HAS PLASTIC WIRE CONNECTOR (04) - ELECTRICAL SYSTEMS
15
22
9
17
3
10
22
11
1
18
21
14
4
19
23
13
5
7
12
20
24
16
6
8
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, 65 ampere, parts list Figure 4-2, 4-3, see Figure 4-8 for correct assembly and mounting parts

1шт.

2

D140518

HARNESS

- engine, no longer used, order harness D148416 below, Serial Range: -JJG251722

1шт.

2

284090A2

HARNESS

- engine, Start Serial: JJG251722

1шт.

2

D148416

HARNESS

HANRESS - engine

1шт.

3

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

4

825-1406

NUT,M6, Cl 8

1шт.

5

REF

INSTRUCTION

SENDER - air filter restriction, see Figure 2-7, Ref. 13 through 15 and 18 for correct senders and fittings

1шт.

6

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - shuttle transmission temperature

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

8

A162297

SWITCH

SENDER - oil pressure

1шт.

9

REF

INSTRUCTION

FUEL SHUTOFF - engine, component of fuel injection pump, see Figure 3-10 or 3-11A

1шт.

10

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type 9/16", Insul, 3/8" Bolt

1шт.

11

299615C1

CLAMP

- P-type, 5/8 inch ID

1шт.

12

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

13

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

14

D148791

HARNESS

- fuel sender (Replaces harness D131949)

1шт.

15

D83480

TRANSMITTER

SENDER - fuel level gauge

1шт.

16

528359R4

GASKET,3.05mm Thk

- fuel level sender

1шт.

17

D75465

SCREW,#10 - 32 x 5/8"

- self-tapping, hex washer head, special, No. 10 NF x 5/8 inch

5шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

19

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, see Figure 8-32 for components

1шт.

D141061

SWITCH

- neutral start, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH - neutral start

1шт.

22

REF

INSTRUCTION

HARNESS - main, see Figure 4-16 or 4-18 for correct harness

1шт.

23

REF

INSTRUCTION

STARTER ASSEMBLY - engine, new, parts list Figure 4-4 and 4-5 or 4-6

1шт.

24

D131293

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-32

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
