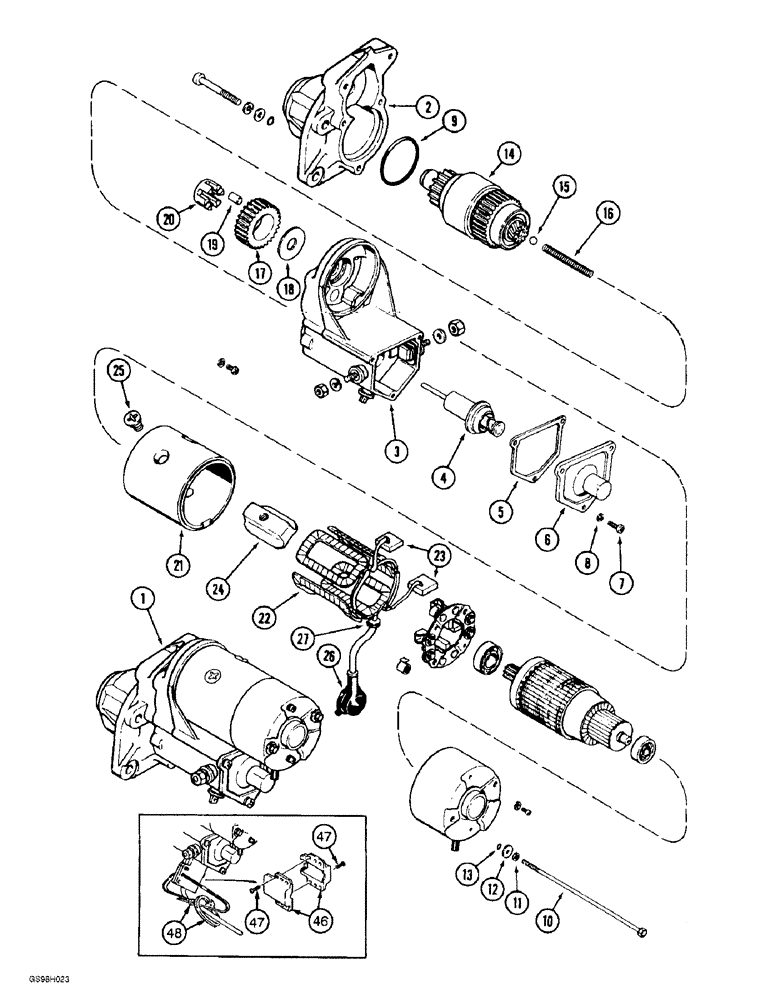

Запчасти Case 584E (4-04) - *A170746 STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY - engine, new, Nippondenso No. 128000-0210, no longer available, order starter 1987559C1, parts list Figure 4-6, Includes: Ref. 1 - 27 and Ref. 28 - 48 on Figure 4-5

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

AR170746

STARTING MOTOR

STARTER ASSEMBLY - engine, remanufactured, N.A. only, component parts shown on this figure do not apply to the remanufactured assy., no longer available, order new starter 1987559C1, parts list Fig. 4-6, Includes: Ref. 1 - 27 and Ref. 28 - 48 on Fig. 4-5

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

AC170746

CORE-STARTER

RETURN NUMBER - use this part number to return starter core for credit when using a remanufactured assembly, Includes: Ref. 1 - 27 and Ref. 28 - 48 on Figure 4-5

1шт.

2

A46948

HOUSING

HOUSING - drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic, no longer available, order kit 142324A1, Includes: Ref. 4 - 8

1шт.

See Figure 4-4 for anti by-pass starting kit.

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

O-RING - 47 ID x 2.4 mm wide, Serial Range: switch-housing

1шт.

A47243

BOLT

BOLT ASSEMBLY - through, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT - through

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

495-81252

WASHER,#12

WASHER, (Flat, 1/4" x 9/16" x 1/16") #12

1шт.

13

A47127

O-RING

O-RING - bolt seal

1шт.

14

A52396

DRIVE

CLUTCH - drive (Replaces ball A47231)

1шт.

15

211-1011

BALL,11/32" Dia

BALL - chrome alloy steel, 11/32 inch, grade 24

1шт.

16

A47232

SPRING

SPRING - compression, 2-13/16 inch free length

1шт.

17

A47233

GEAR

PINION - idler

1шт.

18

A47234

WASHER

WASHER - thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER - pinion bearing

6шт.

20

A47236

RETAINER

RETAINER - roller bearing

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - with coil and brushes, Includes: Ref. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE - lock

1шт.

142324A1

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic

1шт.

See Figure 4-4 for anti by-pass starting kit.

1шт.
