(3-10) - FUEL INJECTION PUMP AND DRIVE, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE

Запчасти Case 584E (3-10) - FUEL INJECTION PUMP AND DRIVE, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (03) - FUEL SYSTEM

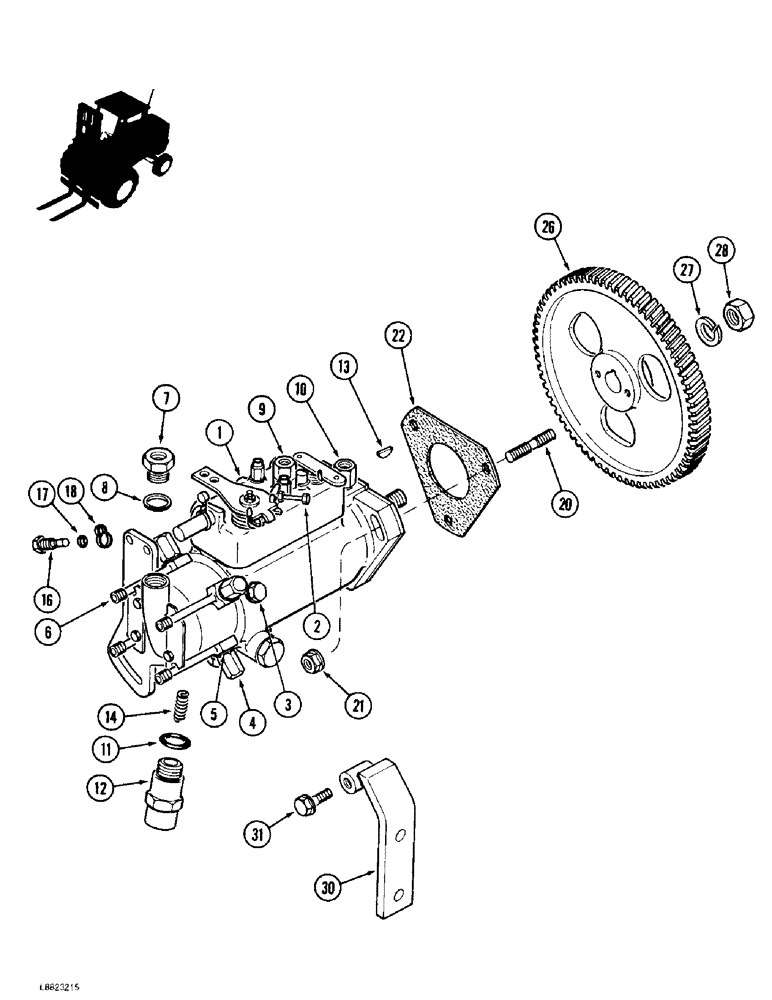

Схема запчастей Case 584E - (3-10) - FUEL INJECTION PUMP AND DRIVE, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (03) - FUEL SYSTEM
16
27
22
18
9
26
4
30
3
13
11
6
17
21
14
8
28
2
20
7
31
5
10
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J915882

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, stamped 3915882, no longer available, order remanufactured assembly JR915882 (Replaces pump assembly J908645), Includes: Ref. 2 - 18

1шт.

1

JR915882

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

JC915882

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

J908645

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, stamped 3908645, no longer available, order pump assembly J915882 below, Includes: Ref. 2 - 18

1шт.

2

J904637

SET SCREW

SCREW - adjusting, low idle, low

1шт.

3

K963867

SCREW

SCREW - bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT - banjo

4шт.

5

J904644

WASHER

WASHER - sealing

9шт.

6

K962755

ADAPTER

FITTING - banjo

4шт.

7

J904641

FITTING

FITTING - inlet

1шт.

8

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE - bleed

1шт.

10

J904643

FITTING

FITTING - return

1шт.

11

J904635

O-RING

O-RING - solenoid

1шт.

12

J904630

SOLENOID

SOLENOID - shut down, 12 volt

1шт.

13

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

WOODRUFF KEY, M4 x 6.5 x 15.72

1шт.

14

J904777

SPRING

SPRING - plunger

1шт.

16

J904778

BOLT

BOLT - hex, special, locking device

1шт.

17

J904780

SEAL

SEAL - locking bolt

1шт.

18

J904779

WASHER

WASHER - locking, special

1шт.

20

J902501

STUD

STUD - pump mounting, 8 - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, special, 8 mm

3шт.

22

J931607

GASKET

GASKET - pump mounting (Replaces gaskets J905685 and J914389)

1шт.

26

J931387

GEAR

GEAR - pump drive (Replaces gears J911331 and J914912)

1шт.

27

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

A77444

JAM NUT

NUT - hex jam, 9/16 inch NF

1шт.

28

J903738

NUT

NUT - hex, special, 14 mm - 2.0

1шт.

30

J905387

BRACE

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

3шт.
