Запчасти Case 584E (2-42) - ENGINE GASKET KITS, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE, VALVE GRIND (02) - ENGINE

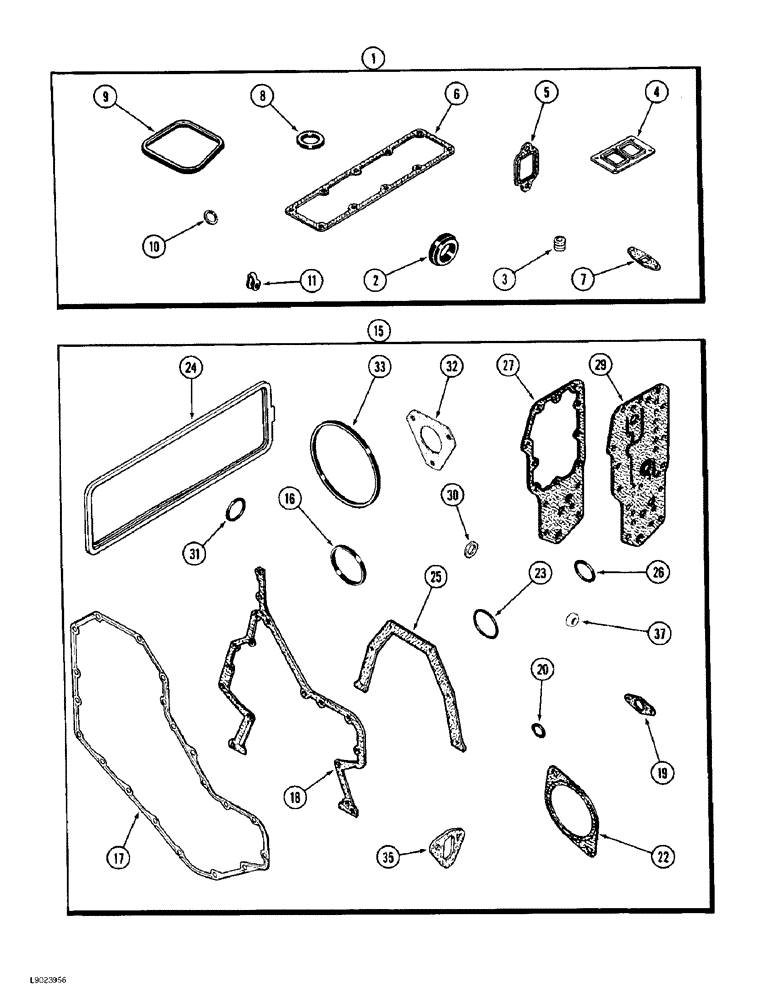

Схема запчастей Case 584E - (2-42) - ENGINE GASKET KITS, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE, VALVE GRIND (02) - ENGINE
6
22
29
37
24
31
18
1
16
11
19
35
20
4
23
2
26
8
33
27
3
15
30
32
25
9
10
17
5
7

Артикул

Название

Примечание

Количество

1

A77672

GASKET KIT

KIT - gasket, valve grind (Replaces kit A77481), Includes: Ref. 2 - 11

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-26.

1шт.

2

J920020

GASKET

- thermostat housing (Replaces gasket J903301)

1шт.

3

J901097

SEAL

- rubber

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold, no longer available, order gasket J931605, Ref. 5 on Figure 2-44 (Replaces gasket J901999)

1шт.

7

J914388

GASKET

- turbo oil drain tube, no longer available, order gasket J93150, Ref. 6 on Figure 2-44

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J929795

GASKET

SEAL - rocker arm cover (Replaces seal J902666)

4шт.

10

J900808

SEAL

- injector nozzle, 9 mm injector tip

4шт.

11

J903380

SEAL

- connector

4шт.

15

A77671

GASKET KIT

KIT - gasket, engine block (Replaces kit A77480), cylinder block, Includes: Ref. 16 - 37

1шт.

For complete engine overhaul, order 1 - cylinder block kit,1 - valve grind kit, 1 - oil pan kit, Figure 2-24, front and rear crankshaft seal kit, Figure 2-36 and required cylinder head gasket, Figure 2-26.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover (Replaces gasket J910500), cylinder block

1шт.

18

J931351

GASKET

- gear housing (Replaces gaskets J907836 and J916131), cylinder block

1шт.

19

J905595

GASKET

- timing pin housing, cylinder block

1шт.

20

J913994

O-RING

- sealing (Replaces O-ring J903927), cylinder block

1шт.

22

J931608

GASKET

- access cover plate (Replaces gaskets A77441 and J913192), cylinder block

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces O-ring 22290R1), Cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J283767

GASKET,7.4mm Thk

- tappet cover (Replaces gasket J904056), cylinder block

1шт.

25

J928493

GASKET

- rear cover retainer (Replaces gaskets J901019 and J914386), cylinder block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, cylinder block

1шт.

27

J942914

GASKET

- oil cooler core (Replaces gaskets J904427 and J918256), cylinder block

1шт.

29

J929792

GASKET,1.2mm Thk

- filter head (Replaces gaskets J912638 and J918257), cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID, cylinder block

1шт.

32

J931607

GASKET

- pump mounting (Replaces gaskets J905685 and J914389), cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block (Replaces O-ring A157927), cylinder block

1шт.

35

J931348

GASKET

- mounting, fuel transfer pump (Replaces gaskets J904044 and J914304), cylinder block

1шт.

37

J928759

SEALING WASHER

- cover bolt (Replaces seal J900267), cylinder block

4шт.

Выбрано товаров: 32
