Запчасти Case 584E (2-41A) - PISTONS AND CONNECTING RODS, P.I.N. JJG0251722 AND AFTER, 4-390 EMISSIONSCERTIFIED ENGINE (02) - ENGINE

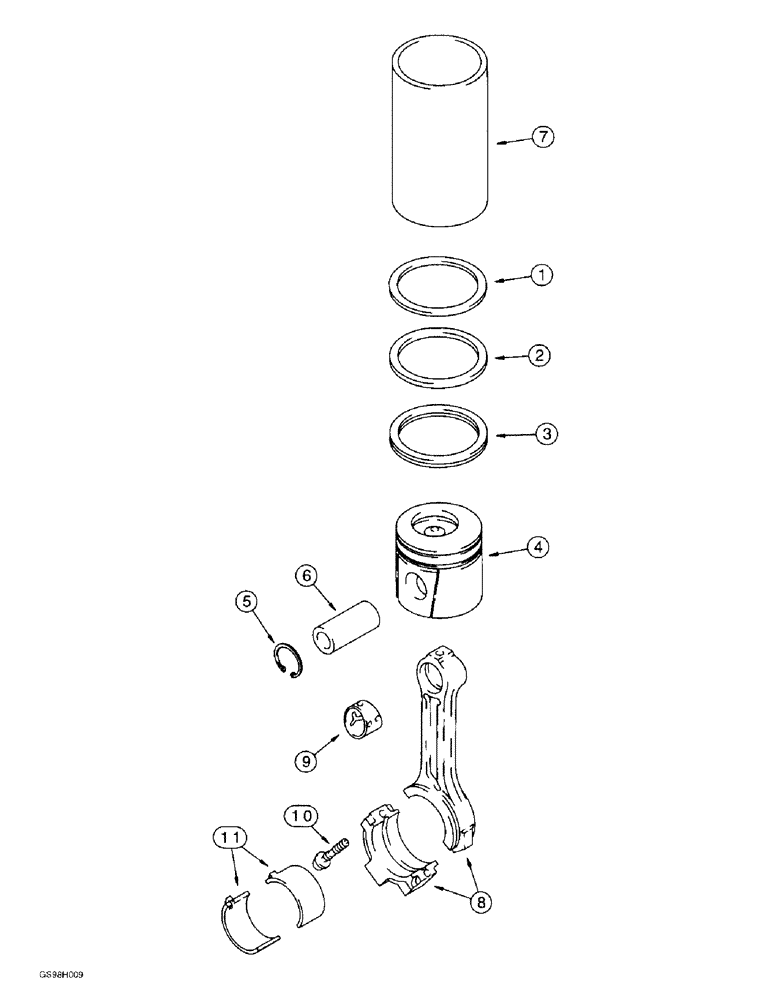

Схема запчастей Case 584E - (2-41A) - PISTONS AND CONNECTING RODS, P.I.N. JJG0251722 AND AFTER, 4-390 EMISSIONSCERTIFIED ENGINE (02) - ENGINE
11
7
4
8
5
1
2
9
6
3
10

Артикул

Название

Примечание

Количество

J804980

PISTON & RINGS KIT

KIT - piston, standard, Includes: Ref. 1 - 5

4шт.

J804930

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J804981

PISTON & RINGS KIT

KIT - piston, 0.5 mm oversize, Includes: Ref. 1 - 5

4шт.

J804931

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J804982

PISTON & RINGS KIT

KIT - piston, 1.0 mm oversize, Includes: Ref. 1 - 5

4шт.

J804932

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (When liner is installed, use J804980 standard piston kit)

1шт.

J942581

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, includes both halves, Includes: Ref. 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Rod Assembly - connecting, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

584E, 585E, 586E, All P.I.N. JJG0251722 AND AFTER (5/90-), Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J941476

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT - bearing, upper and lower set, standard, connecting rod

4шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

4шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

4шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

4шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

4шт.

Выбрано товаров: 39
