Запчасти Case 584E (2-40) - PISTONS, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

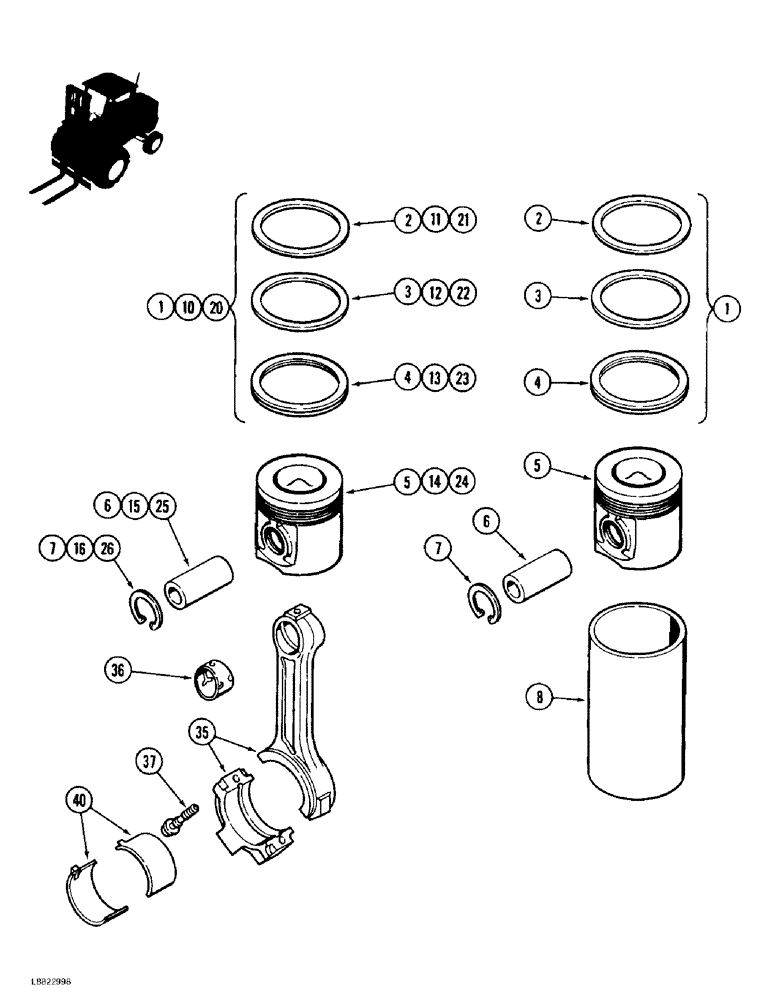

Схема запчастей Case 584E - (2-40) - PISTONS, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE
3
11
6
36
1
7
21
20
8
7
10
5
2
12
23
35
4
3
5
2
37
1
22
14
24
26
15
13
6
25
4
16
40

Артикул

Название

Примечание

Количество

A77410

PISTON

KIT - piston, standard, Includes: Ref. 1 - 7

4шт.

1

A77401

PISTON RING SET

KIT - ring, standard, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine, standard, stamped 6223

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- snap, pin

2шт.

8

J904166

SLEEVE

LINER - piston, used only in engine block repair

1шт.

A77411

PISTON

KIT - piston, 0.5 mm oversize, Includes: Ref. 10 - 16

4шт.

10

A77463

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine, 0.5 mm oversize, stamped 6209

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- snap, pin

2шт.

A77412

PISTON

KIT - piston, 1.0 mm oversize, Includes: Ref. 20 - 26

4шт.

20

A77464

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine, 1.0 mm oversize, stamped 6208

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- snap, pin

2шт.

JR901569

ROD

ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order remanufactured rod assembly JR942581 on Figure 2-41A, Includes: Ref. 36 and 37

1шт.

JC901569

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 36 and 37

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, no longer available, order rod assembly J942581 on Figure 2-41A, Includes: Ref. 36 and 37

4шт.

84145405R

REMAN-CONNECTING ROD

584E , 585E , 586E, ALL PRIOR TO P.I.N. JJG0251722 (5/90-) , Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

36

J901085

BUSHING

- connecting rod

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

40

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

4шт.

40

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

4шт.

40

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

4шт.

40

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

4шт.

40

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

4шт.

Выбрано товаров: 37
