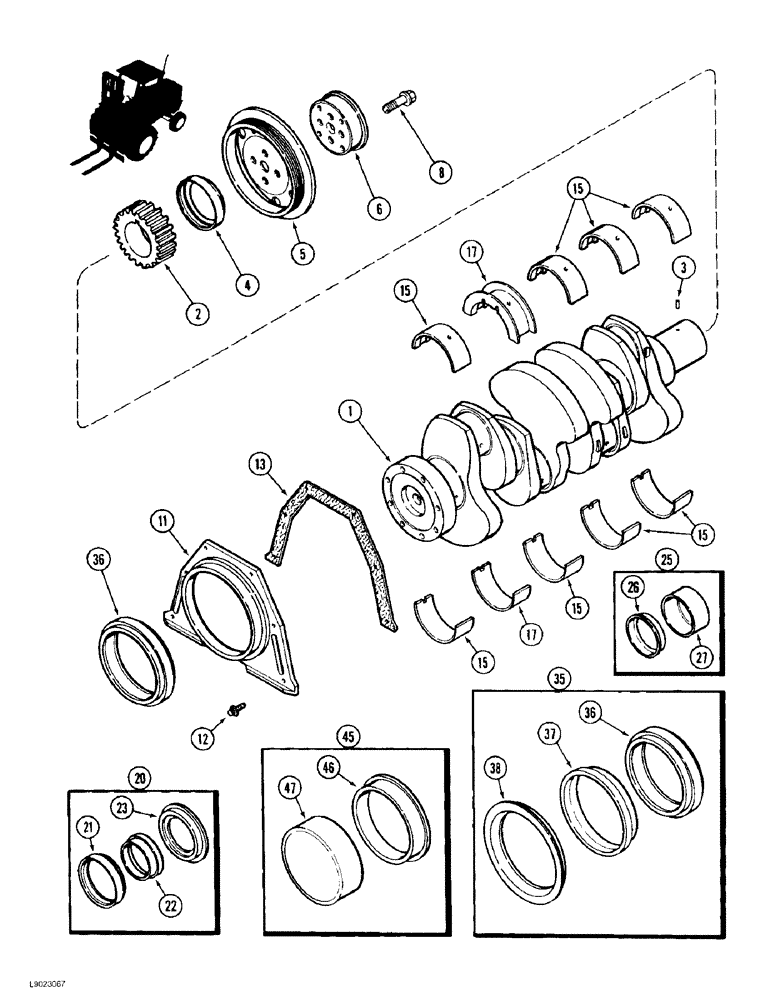

Запчасти Case 584E (2-36) - CRANKSHAFT, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

JR918323

CRANKSHAFT

ASSEMBLY - engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order remanufactured crankshaft JR908031 on Figure 2-37C, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

586E,584E,585E PRIOR TO P.I.N. JJG0251722 (5/90-), Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY - engine, new, no longer available, order crankshaft assembly J908031 on Figure 2-37C, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

584E, 585E, 586E ALL PRIOR TO P.I.N. JJG0251722 (5/90-), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J912883

PINION

GEAR - crankshaft, no longer available, order gear J929027, Ref. 2 on Figure 2-37C (Replaces gear J901258)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order kit J904353, Ref. 20

1шт.

Dust shield J926430 is available to prevent dust from being ingested by the front crank seal.

1шт.

5

J914494

PULLEY,181.25mm OD

- crankshaft vibration damper (Replaces pulley J903858)

1шт.

6

J905820

ADAPTER

FLANGE - adapter, pulley

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special, 12 - 1.25 x 36 mm

4шт.

11

J913447

SEAL RETAINER

RETAINER - seal, rear cover, no longer available, order retainer J921043 Ref. 8 on Figure 2-37C

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

J928493

GASKET

- rear cover retainer (Replaces gaskets J901019 and J914386)

1шт.

15

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, standard

4шт.

15

A77472

BEARING SET

BEARING - main, upper and lower set, 0.25 mm undersize

4шт.

15

A77474

BEARING SET

BEARING - main, upper and lower set, 0.50 mm undersize

4шт.

15

A77476

BEARING SET

BEARING - main, upper and lower set, 0.75 mm undersize

4шт.

15

A77478

BEARING SET

BEARING - main, upper and lower set, 1.00 mm undersize

4шт.

17

A77406

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard

1шт.

17

A77473

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.25 mm undersize

1шт.

17

A77475

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize

1шт.

17

A77477

THRUST BEARING

BEARING - main thrust, uper and lower set, 0.75 mm undersize

1шт.

17

A77479

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize

1шт.

20

J904353

GASKET KIT

KIT - oil seal, crankshaft front, no longer available, order kit A77889, Ref. 13 on Figure 2-37C, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

SLEEVE - wear, crankshaft front, no longer available, order kit A77890, Ref. 18 on Figure 2-37C (Replaces kit J904323), Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J909410

GASKET KIT

KIT - seal, oil, crankshaft rear, no longer available, order kit A77809, Ref. 23 on Figure 2-37C (Replaces kit J904323), Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

45

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear, Includes: Ref. 46 and 47

1шт.

For dry seal applications, order kit A77810, Ref. 26 on Figure 2-37C. For wet seal applications, order kit J929106.

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

47

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
