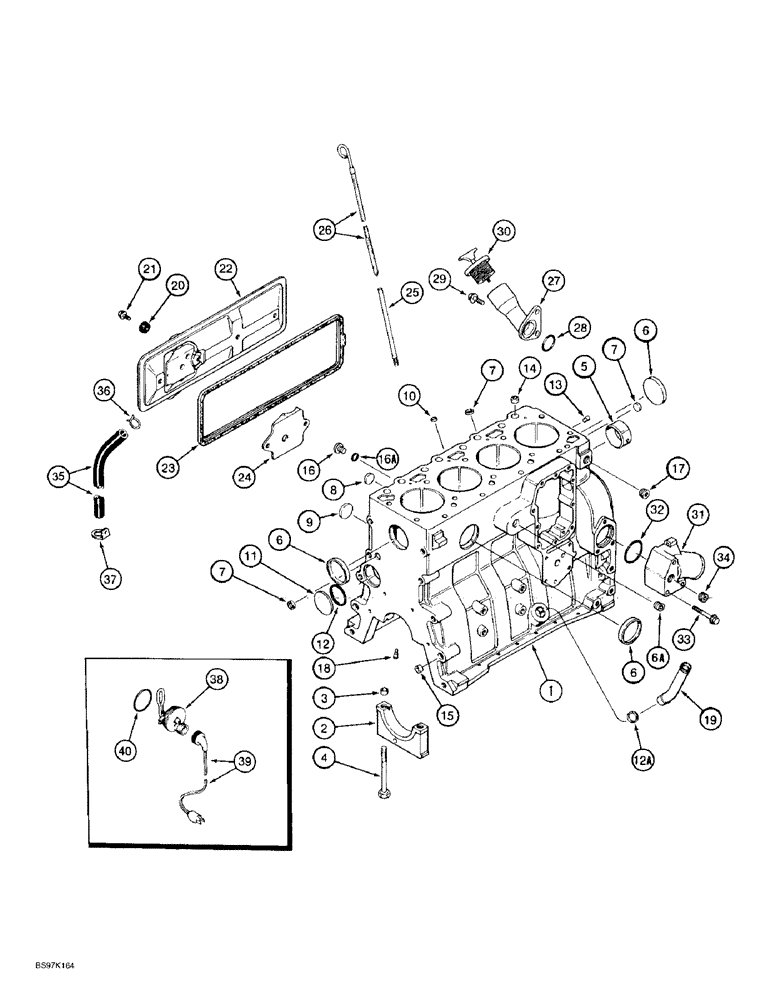

Запчасти Case 584E (2-35A) - CYLINDER BLOCK, P.I.N. JJG0251722 AND AFTER, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

257145A1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 4-390 Emissions Certified, complete, for service order 302562A1 basic engine below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

47465894R

REMAN-BASIC ENGINE

Engine Assembly basic remanufactured, component parts shown on this figure do not apply to the remanufactured assembly; See Note. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Part Number

1шт.

302562A1

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump injectors and lines, front pulley and belt tensioner

1шт.

JR933649

REMAN-SHORT ENGINE

Block Assembly short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8

1шт.

JC933649

CORE-SHORT ENGINE

Return Part Number use this part number to return short block core for credit when using a remanufactured assembly, Includes: Ref. 1 - 8

1шт.

J933649

SHORT ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

1

J932012

SCREW

BLOCK ASSEMBLY - stripped, engine, order J933220 block hardware kit shown below also, Includes: Ref. 2 - 8

1шт.

2

J903492

BEARING CAP

CAP - main bearing (Replaces cap J900967)

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see page 2-43, Ref. 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm O.D.

1шт.

6a

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm O.D.

2шт.

10

J900955

PLUG

PLUG - expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm O.D.

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

12a

J920706

PLUG

PLUG - expansion, 22 mm O.D.

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

16

J678923

PLUG,M10 x 1

PLUG - hex socket, 10 mm

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

O-RING - 8.1 ID x 1.6 mm wide

1шт.

17

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

PLUG - hex socket, 14 mm, not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

O-RING, , Sealing, Not shown 11.3MM ID x 2.2 Thk

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17c

J932296

PLUG

PLUG - timing sensor hole, not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

O-RING - sealing, not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, Not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

18

J930139

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, not used in this application, Ref. 12A plug is installed in this port

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.

22

J925680

COVER

COVER - tappet

1шт.

23

J283767

GASKET,7.4mm Thk

GASKET - tappet cover

1шт.

24

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

25

J905127

TUBE,9.52 mm OD x 180 mm L

TUBE - dipstick

1шт.

26

J904287

DIPSTICK

DIPSTICK - oil level gauge

1шт.

27

J934190

TUBE

TUBE - oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP - oil fill tube

1шт.

31

J903102

CONNECTION

CONNECTION - water inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

33

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 - 1.50 x 75 mm

3шт.

34

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

37

J928989

CLIP

CLIP - retaining

1шт.

196803A1

KIT

KIT - engine block heater, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

40

J910517

O-RING

O-RING - heater sealing, engine block

1шт.

A77893

PACKAGE, REPAIR

KIT - engine overhaul, Includes: Ref. 41 - 48, not shown

1шт.

41

J804980

PISTON & RINGS KIT

KIT - piston, standard, see Figure 2-41A, engine overhaul kit

4шт.

42

J919053

PISTON PIN

PIN - piston, See Figure 2-41A, engine overhaul kit

4шт.

43

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT - bearing, upper and lower set, standard, see Figure 2-41A, engine overhaul kit

4шт.

44

J804940

BEARING SET

BEARING - main, upper and lower set, standard, see page 2-37B, engine overhaul kit

4шт.

45

A77895

THRUST BEARING,KIT

BEARING - main thrust, upper and lower set, standard, see page 2-37B, engine overhaul KIT

1шт.

46

A77870

SEAL PACKAGE

KIT - gasket, valve grind, v, see Figure 2-44, engine overhaul kit

1шт.

47

J283333

CYLINDER HEAD GASKET,2.32mm Thk

GASKET - head, standard, see Figure 2-27A, engine overhaul kit

1шт.

48

A77673

GASKET KIT

KIT - gasket, oil pan, see Figure 2-25A, engine overhaul kit

1шт.
