(2-34) - CYLINDER BLOCK, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE

Запчасти Case 584E (2-34) - CYLINDER BLOCK, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

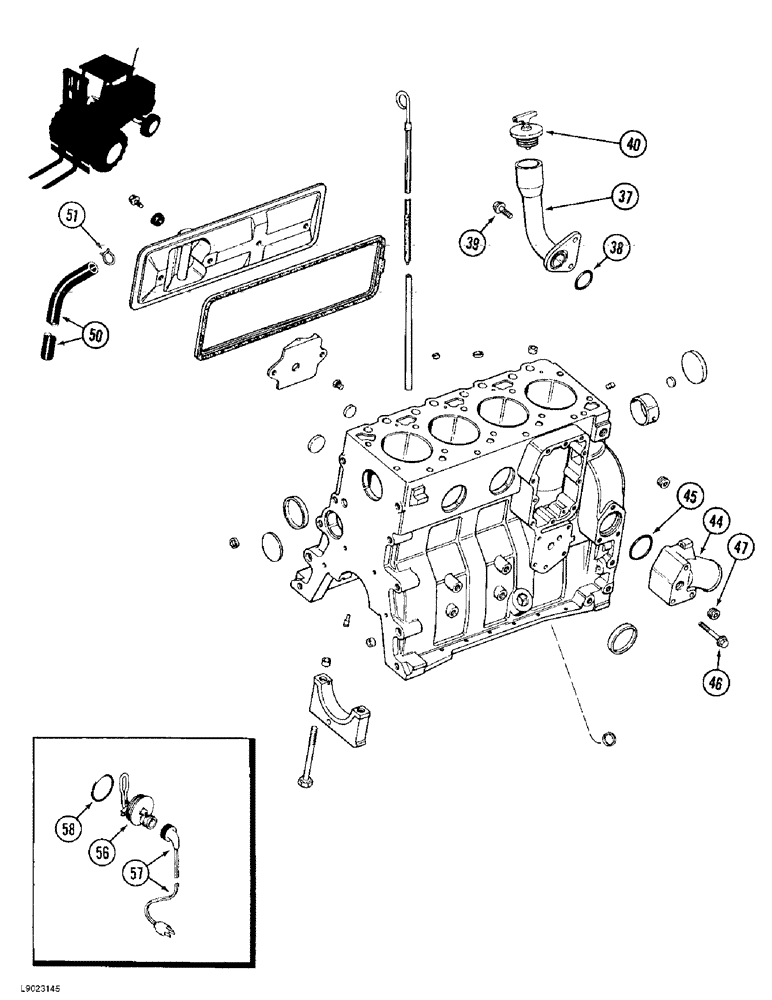

Схема запчастей Case 584E - (2-34) - CYLINDER BLOCK, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE
50
47
37
51
58
44
56
39
38
46
45
57
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

37

J905440

TUBE

- oil fill

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

40

A77424

FILLER CAP

CAP - oil fill tube

1шт.

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 - 1.50 x 75 mm

3шт.

47

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

50

J918612

TUBE,360.00 mm

Breather 360.00 mm

1шт.

51

J904230

CLAMP,25.4mm

- spring, hose

1шт.

196803A1

KIT

- engine block heater (Replaces kit A77634), Includes: Ref. 56 - 58

1шт.

56

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, block

1шт.

57

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

58

J910517

O-RING

- heater sealing, engine block

1шт.
