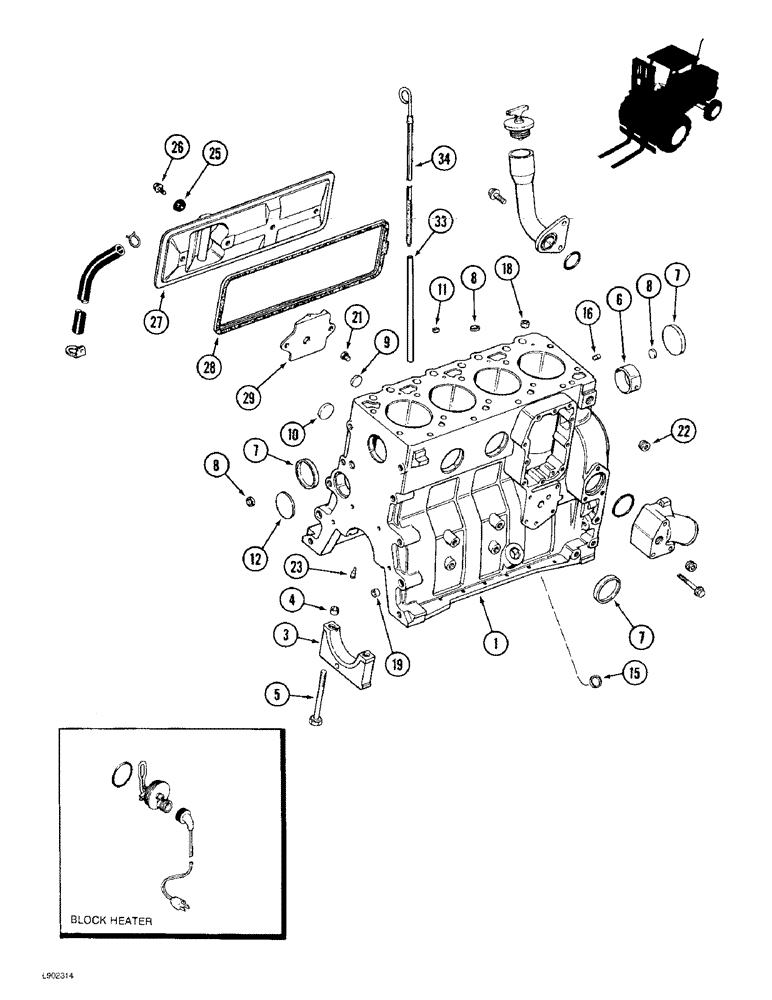

Запчасти Case 584E (2-32) - CYLINDER BLOCK, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

A174025

ENGINE

ENGINE ASSEMBLY - complete, 4-390 includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

AR174090

REMAN-REPLACEMENT EN

Reman For New P/N A174025

1шт.

AC174090

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

AR174351

ENGINE, EXCHANGE

Reman For New P/N A174025

1шт.

AC174351

CORE-ENGINE

Return Part Number - use this part number to return engine core for credit when using a remanufactured assembly

1шт.

1989091C3

BASIC ENGINE

includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, front crank pulley & belt tensioner; See Note

1шт.

1989091C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Number

1шт.

47465894R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Part Number

1шт.

J905377

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 9

1шт.

JR933238

REMAN-SHORT ENGINE

Reman For New P/N J905377

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905376

CRANKCASE

BLOCK ASSEMBLY - stripped engine, also order J905813 kit, and order block assermbly J932012, parts list Figure 2-35A, Includes: Ref. 3 - 9

1шт.

3

J903492

BEARING CAP

CAP - main bearing (Replaces cap J900967)

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft front, see Figure 2-30

1шт.

7

A77782

PLUG

PLUG - expansion, 58 mm OD (Replaces plug J900965)

4шт.

8

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

2шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, no longer available as a kit, order components, Includes: Ref. 10 - 23

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

2шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

1шт.

12

41-3038

PLUG,Exp, 2 3/8"

PLUG, Exp, 2 3/8"

1шт.

15

A77439

PLUG

PLUG - expansion, 22 mm O.D.

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

22

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

23

J901020

NOZZLE CAP

NOZZLE - piston cooling

4шт.

25

J900267

SEAL

SEAL - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.

27

J916441

COVER

COVER - tappet (Replaces cover J905023)

1шт.

28

J283767

GASKET,7.4mm Thk

GASKET - tappet cover (Replaces gasket J904056)

1шт.

29

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

33

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - dipstick

1шт.

34

J905781

DIPSTICK

DIPSTICK - oil level gauge

1шт.
