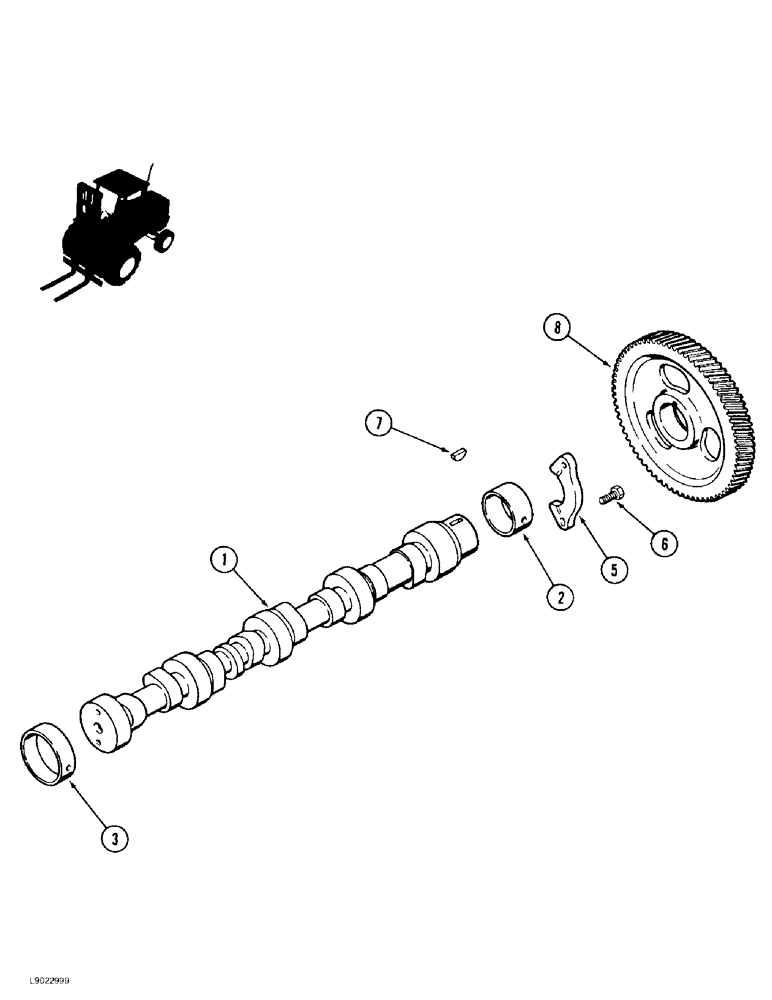

Запчасти Case 584E (2-30) - CAMSHAFT, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

1

J907823

CAMSHAFT

- engine, no longer available, order camshaft J929039, support J927155, Ref. 1 and 4 on Figure 2-31A

1шт.

J929039R

REMAN-CAMSHAFT

584E, 585E, 586E ALL PRIOR TO P.I.N. JJG0251722, (5/90-), Reman For New P/N J907823

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

1

J914638

CAMSHAFT

- engine, no longer available, order camshaft J929039, Ref. 1 on Figure 2-31A (Replaces camshaft J907823)

1шт.

J929039R

REMAN-CAMSHAFT

584E, 585E, 586E ALL PRIOR TO P.I.N. JJG0251722, (5/90-), Reman For New P/N J914638

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front

1шт.

2

J904369

BUSHING

- camshaft, front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear

4шт.

5

J914641

SUPPORT

- thrust, camshaft, no longer available, order support J927155, Ref. 4 on Figure 2-31A (Replaces support J901761)

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft, no longer available, order gear J929030, Ref. 7 on Figure 2-31A

1шт.
