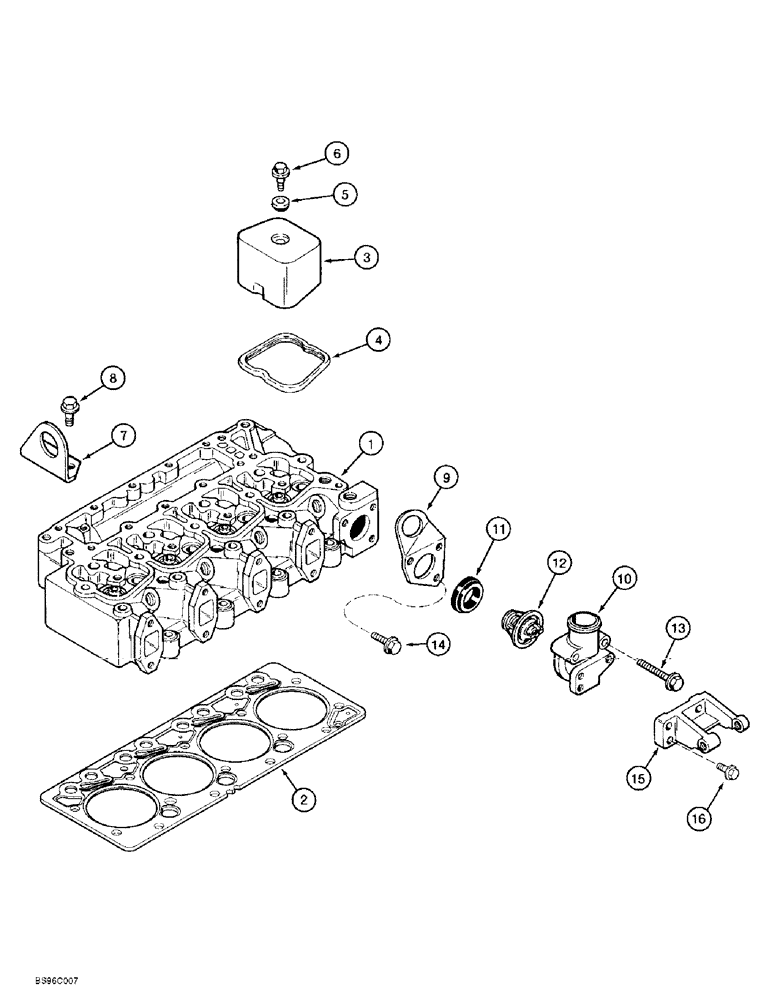

Запчасти Case 584E (2-27A) - CYLINDER HEAD COVERS, P.I.N. JJG0251722 AND AFTER, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-38 or 2-40 for correct cylinder head and parts list

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

- head, standard

1шт.

2

J283336

GASKET

- head, 2 notches, 0.25 mm thicker

1шт.

2

J283338

GASKET

- head, 3 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

- rocker arm

4шт.

4

J930906

GASKET

SEAL - rocker arm cover

4шт.

5

J928406

ISOLATOR

- noise

4шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat & housing

1шт.

10

J914409

HOUSING

- thermostat housing

1шт.

11

J923331

GASKET

- thermostat housing gasket

1шт.

12

A77736

THERMOSTAT

KIT - coolant thermostat, housing, Includes: Ref. 10 and 11

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat & housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat & housing

1шт.

15

J923387

SUPPORT

- alternator mounting, thermostat & housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat & housing

3шт.
