Запчасти Case 584E (2-26) - CYLINDER HEAD AND COVERS, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

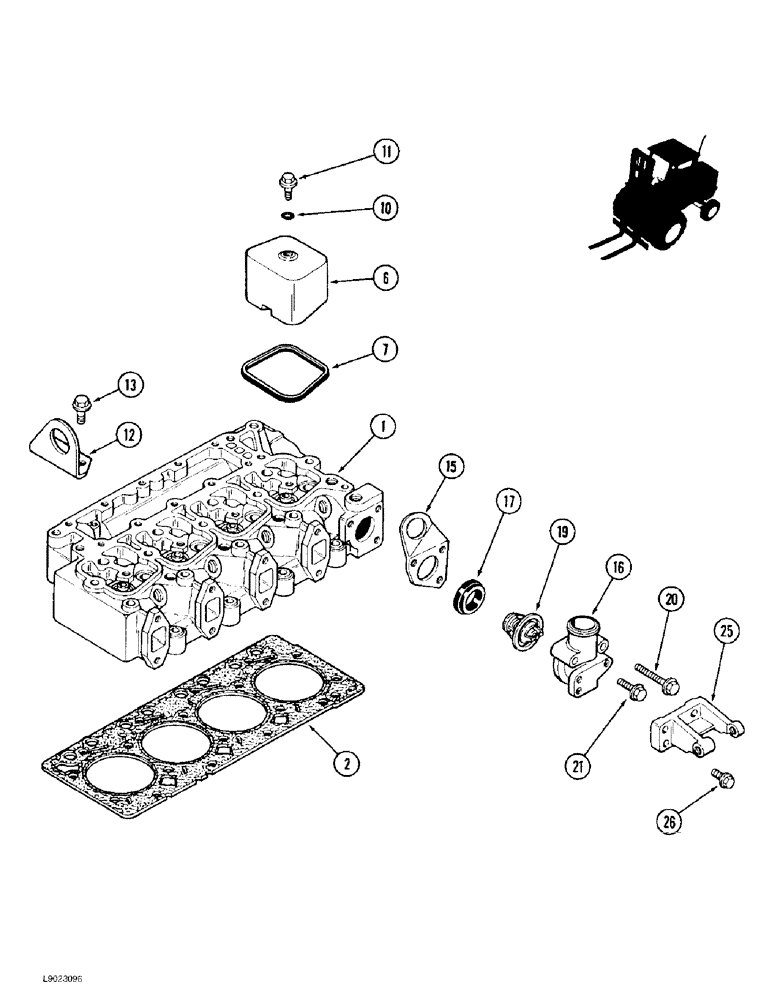

Схема запчастей Case 584E - (2-26) - CYLINDER HEAD AND COVERS, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE
2
26
1
16
10
12
17
7
19
20
15
11
6
13
21
25

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, engine, see Figure 2-28

1шт.

2

J918302

GASKET

- head, 1 notch, standard (Replaces gaskets J907054 and J917354)

1шт.

2

J921395

CYLINDER HEAD GASKET

- head, 2 notches, 0.25 mm thicker (Replaces gaskets J907055 and J917355)

1шт.

2

J921397

GASKET

- head, 3 notches, 0.50 mm thicker (Replaces gaskets J907056 and J917356)

1шт.

6

J902604

COVER

- rocker arm, no longer available, order cover J928404 and isolator J928406, Ref. 3 and 5 on Figure 2-27A

4шт.

7

J929795

GASKET

SEAL - rocker arm cover (Replaces seal J902666)

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces O-ring J901837)

4шт.

11

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

12

J908118

BRACKET

- lifting, rear

1шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

15

J903757

BRACKET

- lifting, front, thermostat & housing

1шт.

16

J914409

HOUSING

- thermostat (Replaces housing J903756)

1шт.

17

J920020

GASKET

- thermostat housing (Replaces gasket J903301)

1шт.

19

J917324

THERMOSTAT

- water, no longer available, order thermostat kit A77736 on Figure 2-27A (Replaces thermostat J912587), housing

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat & housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat & housing

1шт.

25

J923387

SUPPORT

- alternator mounting (Replaces support J910713), thermostat & housing

1шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, thermostat & housing

3шт.

Выбрано товаров: 18
