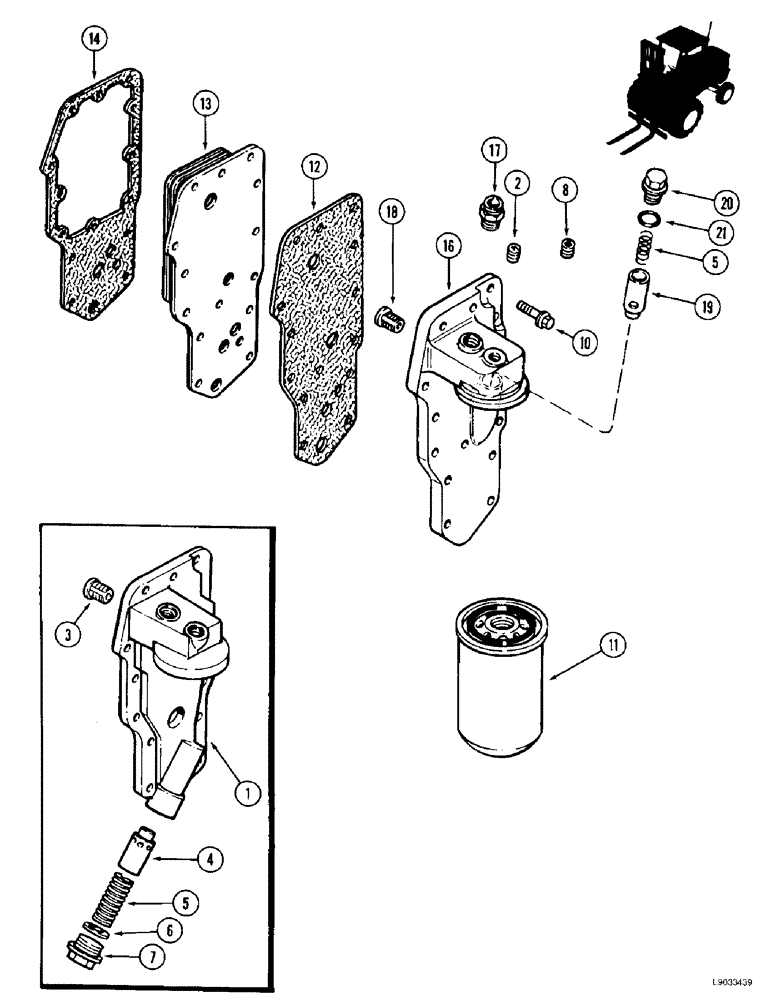

Запчасти Case 584E (2-22) - OIL FILTER AND COOLER, PRIOR TO P.I.N. JJG0251722, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - oil filter and cooler

1шт.

Used prior to engine serial number 44257900. For repains order J915766 kit.

1шт.

2

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure

1шт.

5

J903261

SPRING

- compression, 55 mm free length, 17 coils

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

7

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5 (Replaces plug J904386)

1шт.

8

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

11

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - engine oil, cartridge

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head (Replaces gaskets J912638 and J918257)

1шт.

13

J921557

COOLER

CORE - cooler, oil (Replaces cooler J904320)

1шт.

14

J942914

GASKET

- oil cooler core (Replaces gaskets J904427 and J918256)

1шт.

J915766

KIT

- oil cooler cover, no longer available as a kit, order components separately, Includes: Ref. 16 - 21

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY - oil filter and cooler, top port, no longer available, order head assembly J918954 on Figure 2-23A, Includes: Ref. 16 and 17

1шт.

16

J909352

FILTER COVER

HEAD - filter and cooler, no longer available, order head assembly J918954 on Figure 2-23A

1шт.

17

J909355

ADAPTER

- filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

19

J914084

VALVE

PLUNGER - regulator, pressure, one hole

1шт.

20

J915787

PLUG

- threaded

1шт.

21

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
