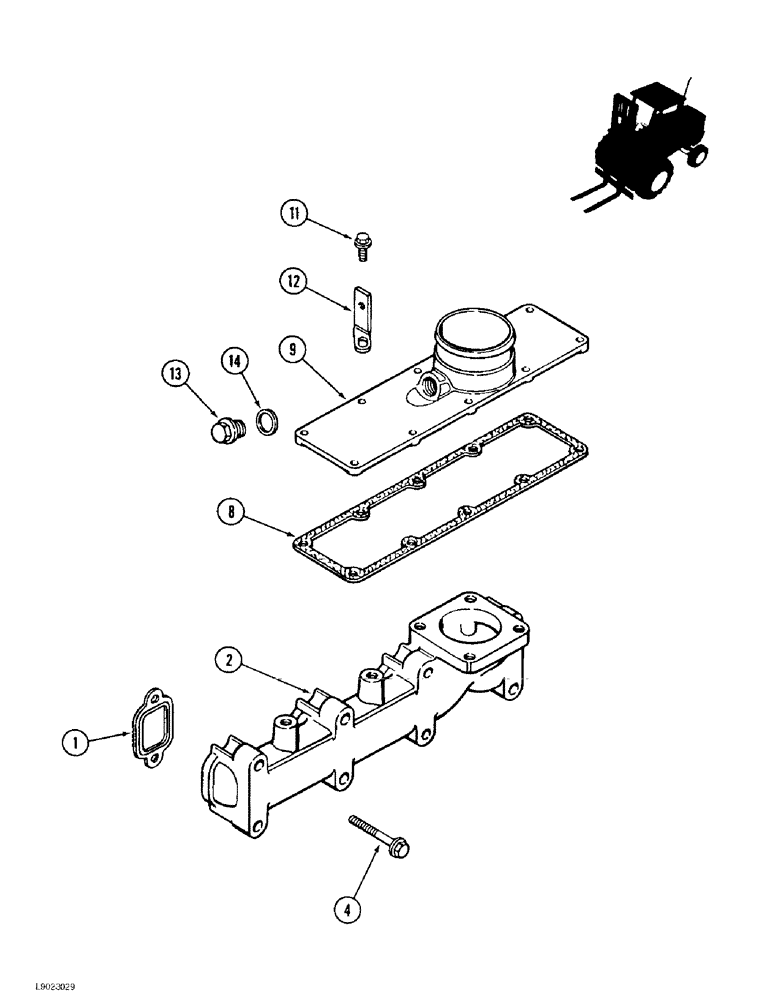

Запчасти Case 584E (2-20) - MANIFOLDS, 4-390 ENGINE, EXHAUST (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901223

MANIFOLD

- exhaust

1шт.

4

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

8

J938153

MANIFOLD GASKET,0.8mm Thk

- intake manifold (Replaces gasket J901999 or J914028)

1шт.

9

J904340

COVER

- intake

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special (Replaces bolt J904341), Intake Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube, see Figure 3-6, intake

1шт.

13

J907185

PLUG

- manifold, intake

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

A77415

COVER

KIT - intake manifold, no longer available, order Ref. 9, 13 and 14

1шт.
