Запчасти Case 584E (2-14) - ENGINE MOUNTING (02) - ENGINE

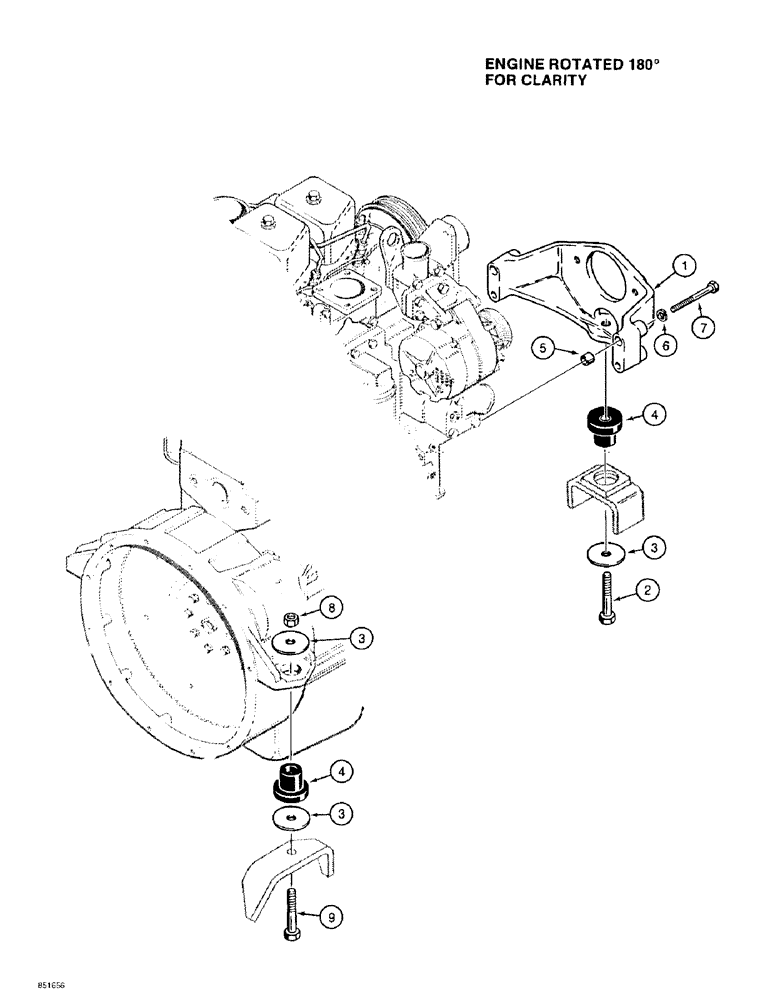

Схема запчастей Case 584E - (2-14) - ENGINE MOUNTING (02) - ENGINE
3
1
3
3
6
8
4
2
4
7
9
5

Артикул

Название

Примечание

Количество

1

A170580

SUPPORT

- engine, front

1шт.

2

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

1шт.

3

D35009

WASHER

- flat, special

5шт.

4

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - engine mount, rubber (Replaces insulator D122727)

3шт.

5

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

SPACER - engine mount

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

- hex, 12 - 1.75 x 85 mm

4шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

Выбрано товаров: 9
