Запчасти Case 584E (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

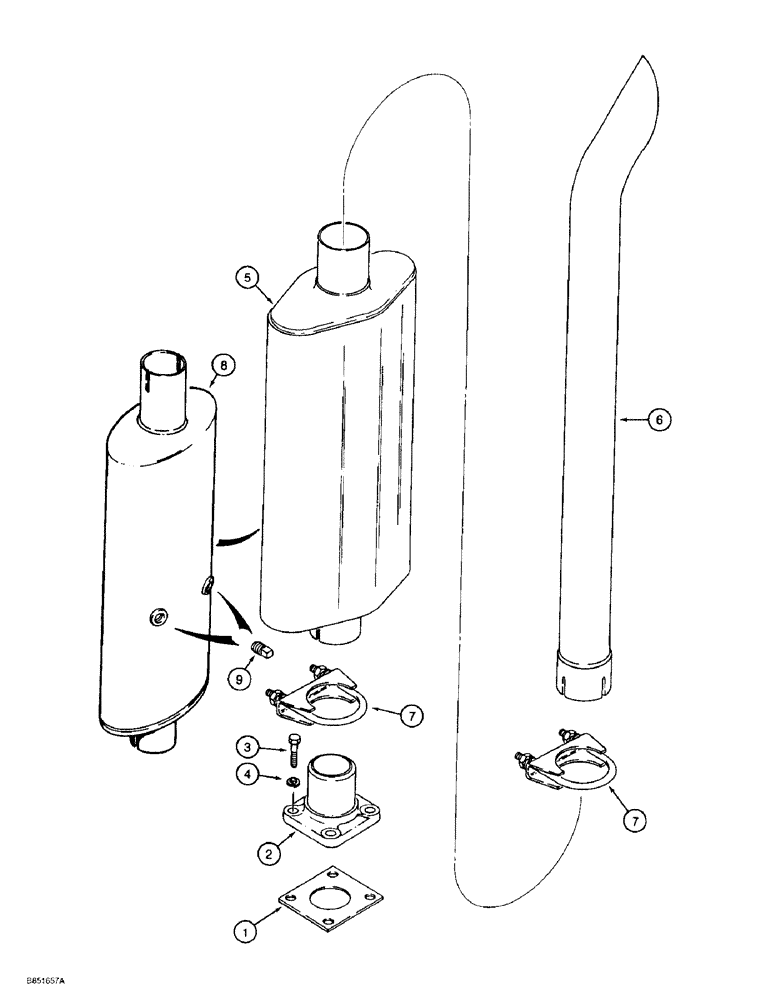

Схема запчастей Case 584E - (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE
9
7
2
3
5
4
6
8
1
7

Артикул

Название

Примечание

Количество

1

J912220

GASKET,0.4mm Thk

- steel (Replaces gasket A170151)

1шт.

2

A170611

ADAPTER

- muffler

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

A173180

MUFFLER

- engine exhaust, if used

1шт.

6

A172152

TUBE

PIPE - exhaust, muffler extension

1шт.

7

A13240

CLAMP,2-5/8" ID

- two piece, includes hardware (Replaces clamp A62874)

2шт.

8

A173648

ARRESTER

MUFFLER - spark arrester, inlet diameter 64 mm (2-1/2 inch), includes hardware, if used, Includes: Ref. 9

1шт.

9

217-77

PLUG

- square, 3/8 inch PT

2шт.

Выбрано товаров: 9
