Запчасти Case 584E (9-154) - DECALS, MODELS WITH DUAL LIFT CYLINDER MASTS, WITH OR WITHOUT 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS

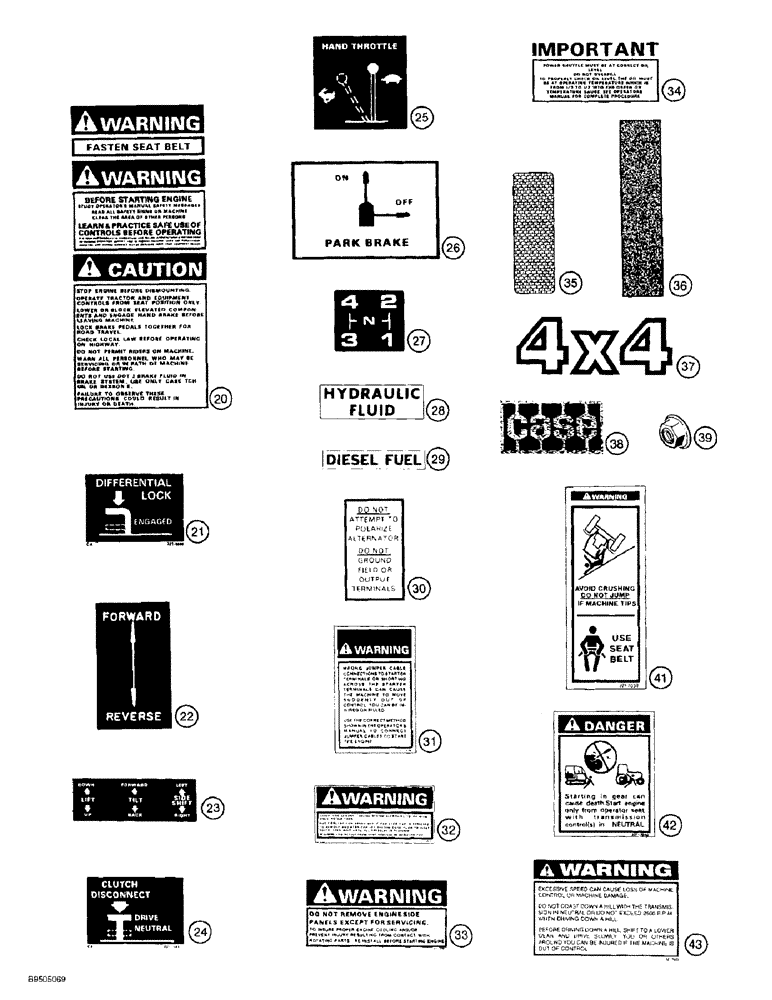

Схема запчастей Case 584E - (9-154) - DECALS, MODELS WITH DUAL LIFT CYLINDER MASTS, WITH OR WITHOUT 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS
21
42
22
24
36
23
35
41
25
30
29
38
33
20
37
27
26
39
43
31
32
28
34

Артикул

Название

Примечание

Количество

D142215

KIT - decal, Includes: Ref. 20 - 37 and Ref. 1 - 19A on Figure 9-152

1шт.

D146780

KIT - decal, Includes: Ref. 20 - 37 and Ref. 1 - 19A on Figure 9-152

1шт.

20

321-6706

DECAL

- Warning, fasten seat belt/Warning, before starting engine/Caution, stop engine before dismounting, no longer available, order decals 321-6262, 321-3060, 321-3705, Ref. 25 - 27 on Figure 9-150; and decal 321-6872

1шт.

21

321-5598

DECAL

- differential lock control pattern

1шт.

22

321-2145

DECAL

- shuttle lever control pattern

1шт.

23

321-3902

DECAL

- lift, tilt, and sideshift control pattern

1шт.

24

321-5441

DECAL

- clutch disconnect, floor

1шт.

25

321-3907

DECAL

- hand throttle control pattern

1шт.

26

321-2066

DECAL

- park brake control pattern

1шт.

27

321-3904

DECAL

- gear shift control pattern

1шт.

28

321-6376

DECAL

- hydraulic fluid

1шт.

29

321-230

DECAL

- diesel fuel

1шт.

30

321-1061

DECAL

- do not attempt to polarize alternator

1шт.

31

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals, jump start procedure

1шт.

32

321-6672

DECAL

- Warning, check and service cooling system

1шт.

33

321-5701

DECAL

- Warning, do not remove engine side panels, rotating parts

2шт.

34

321-3882

DECAL

- Important, power shuttle must be at correct oil level

1шт.

35

D87870

DECAL

REFLECTOR - red, rear

2шт.

36

D55216

PAD,2" x 9"

PAD - anti-skid

6шт.

37

D124183

DECAL

- 4x4

2шт.

38

321-4739

EMBLEM

- Case, for brown models

1шт.

38

186989A1

EMBLEM

- Case, for gray models

1шт.

39

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type

2шт.

40

321-4614

TAG

- do not operate, see Ref. 47 on Figure 9-150 to order this tag, not shown

1шт.

41

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

1шт.

42

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

43

D150900

DECAL

- Warning, excessive speed can cause loss of machine control

1шт.

Выбрано товаров: 27
